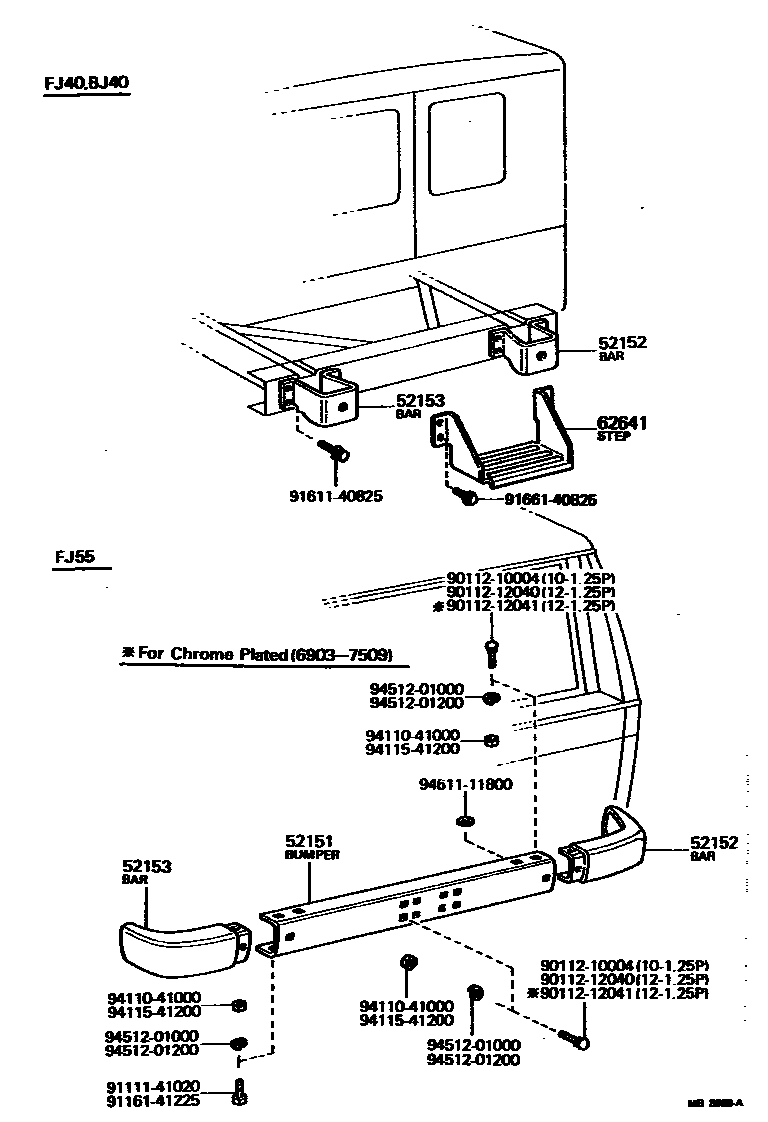

REAR BUMPER & BUMPER STAY

52151BUMPER ASSY, REAR

main52151-60010iFJ55196903-197009

main52151-60011iFJ55197009-198007

main52151-60020iFJ55196903-197009

CHROME PLATED

main52151-60021iFJ55197009-197509

CHROME PLATED

52152BAR, REAR BUMPER, RH

main52152-60011iBJ40,FJ40196903-198007

main52152-60020iFJ55196903-198007

main52152-60030iFJ55196903-197509

CHROME PLATED

main52152-60040iFJ40196903-197509

CHROME PLATED

52153BAR, REAR BUMPER, LH

main52153-60011iBJ40,FJ40196903-198007

main52153-60020iFJ55196903-198007

main52153-60030iFJ55196903-197509

CHROME PLATED

main52153-60040iFJ40196903-197509

CHROME PLATED

62641STEP, REAR

main62641-60020iFJ40..V196903-197309

main62641-90300iFJ40..V197309-198007

9011210004

main90112-10004

9011212040

main90112-12040

9011212041

main90112-12041

9111141020

main91111-41020

9116141225

main91161-41225

9161140825

main91611-40825

9166140825

main91661-40825

9411041000

main94110-41000

9411541200

main94115-41200

9451201000

main94512-01000

9451201200

main94512-01200

9461111800

main94611-11800

16 parts on this diagram · 1 diagram in section
