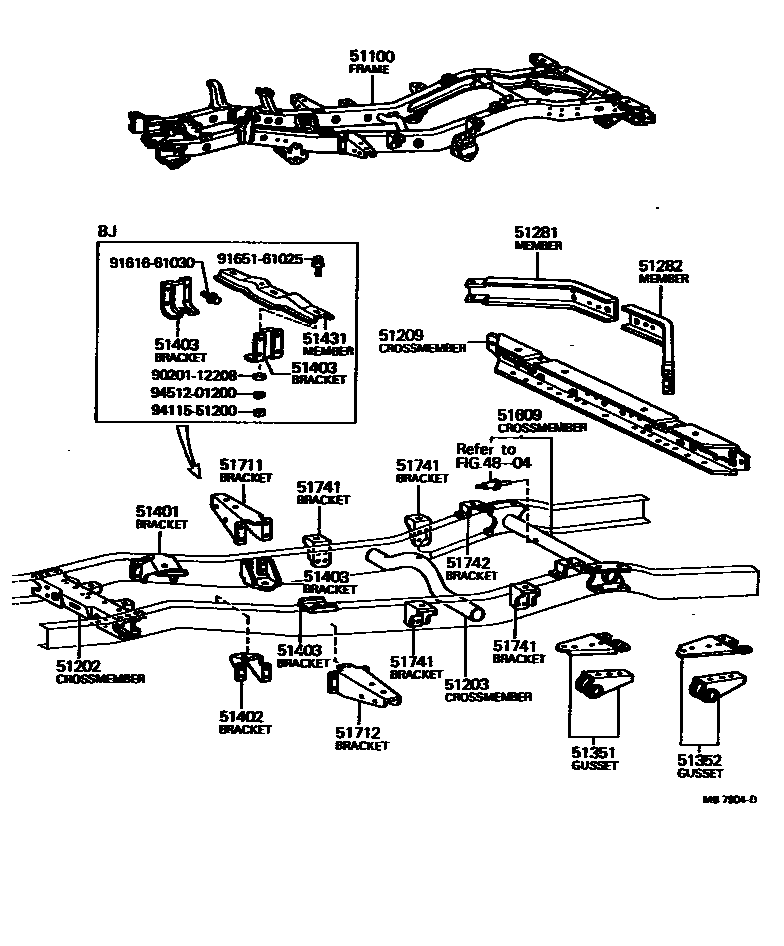

FRAME
4804
51203CROSSMEMBER SUB-ASSY, FRAME, NO.2
51401BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH
51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
51403BRACKET SUB-ASSY, ENGINE REAR MOUNTING
RH.
RH.
RH.
LH.
RH.
LH.
LH.
51431MEMBER, ENGINE REAR MOUNTING
51609CROSSMEMBER SUB-ASSY, REAR SHOCK ABSORBER SUPPORT
sub51203-60H01
sub51203-60H04
sub51203-60H03
sub51203-60H00
51711BRACKET, FRONT BODY SUPPORT OR MOUNTING, RH
51712BRACKET, FRONT BODY SUPPORT OR MOUNTING, LH
51741BRACKET, REAR BODY MOUNTING, NO.1
RH.
LH.
51742BRACKET, BODY MOUNTING, NO.2
9020112208
main90201-12208
9161661030
main91616-61030
9165161025
main91651-61025
9411551200
main94115-51200
9451201200
main94512-01200
23 parts on this diagram · 6 diagrams in section
