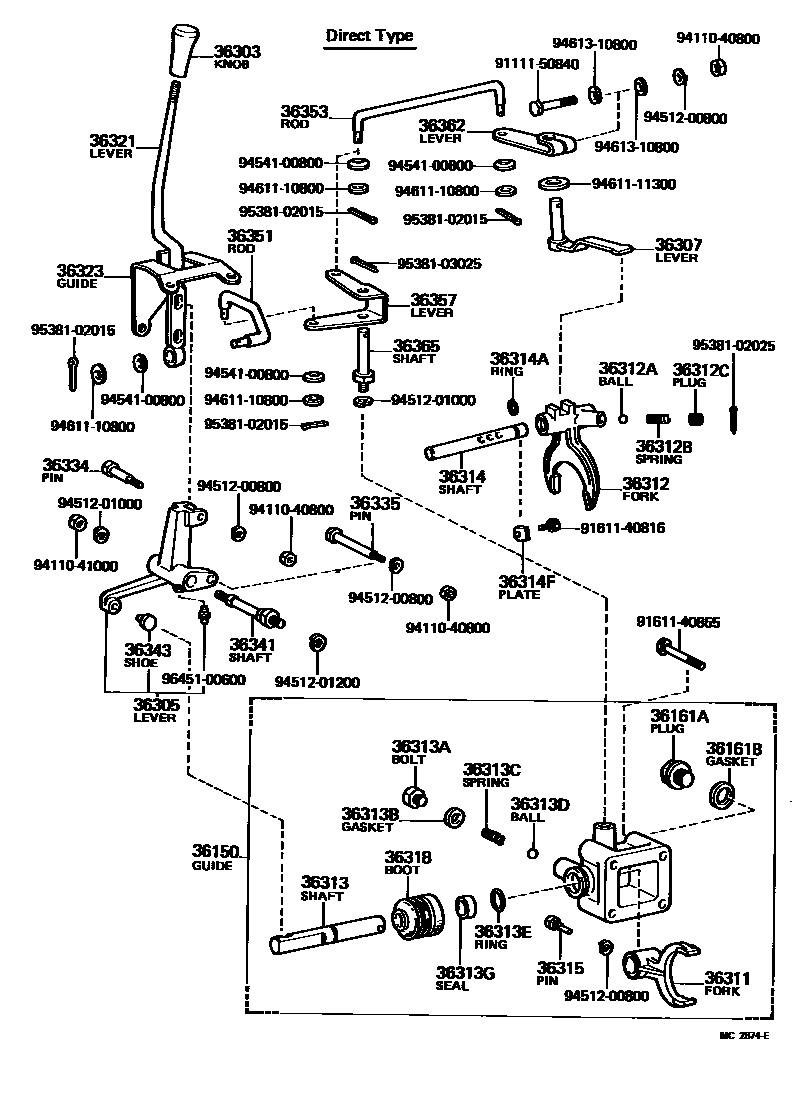

TRANSFER LEVER & SHIFT ROD

0001 1 0002 1 0003 1 0004 1 0005 1

36150GUIDE ASSY, TRANSFER FRONT DRIVE SHIFT SHAFT

main36150-60010iFJ40,55196903-197501

FOR 3-SPEED TRANSMISSION

main36150-60020iFJ40,55197309-197504

FOR 4-SPEED TRANSMISSION

main36150-60021iBJ40,FJ4#,55197504-198007

36161APLUG, TRANSFER FRONT DRIVE SHIFT SHAFT GUIDE

main90341-25003iFJ40,55196903-196908

sub90341-25051

main90341-25051iBJ40,FJ4#,55196908-198007

ISO

36161BGASKET, TRANSFER FRONT DRIVE SHIFT SHAFT GUIDE

main90430-26020iBJ40,FJ4#,55196903-198007

36303KNOB SUB-ASSY, SHIFT LEVER

main33504-22010iFJ40,55197109-197309

sub33504-30110

main36303-60010iFJ40,55196903-197109

sub33504-22010

main36303-60020iBJ40,FJ4#,55197309-198007

FOR DIRECT TIPE

main36303-60030iFJ4#,55197209-197709

FOR MAGNET TYPE

36305LEVER SUB-ASSY, FRONT DRIVE SHIFT LINK

main36305-60011iFJ40,55196903-197501

FOR 3-SPEED TRANSMISSION

main36305-60012iBJ40,FJ4#,55197504-198007

main36305-60020iFJ40,55197309-197504

FOR 4-SPEED TRANSMISSION

36307LEVER SUB-ASSY, HIGH & LOW SHIFT INNER

main36307-60010iFJ40,55196903-197504

FOR VACUUM OR DIRECT TYPE

main36307-60011iBJ40,FJ4#,55197504-198007

FOR DIRECT TYPE

main36307-60020iFJ4#,55197209-197709

FOR MAGNET TYPE

36311FORK, TRANSFER GEAR SHIFT, NO.1

main36311-60030iBJ40,FJ4#,55196903-198007

36312FORK, TRANSFER GEAR SHIFT, NO.2

main36312-60010iFJ40,55196903-196908

FOR VACUUM OR DIRECT TYPE

sub36312-60011

sub90340-12020

main36312-60011iBJ40,FJ4#,55196908-198007

FOR VACUUM OR DIRECT TYPE

main36312-60020iFJ4#,55197209-197709

FOR MAGNET TYPE

36312ABALL, GEAR SHIFT FORK LOCK

main90360-10003iBJ40,FJ4#,55196903-198007

36312BSPRING, COMPRESSION(FOR SHIFT FORK LOCK)

main90501-12033iBJ40,FJ4#,55196903-198007

36312CPLUG, STRAIGHT SCREW(FOR TRANSFER SHIFT FORK)

main90340-12003iFJ40,55196903-196908

main90340-12020iBJ40,FJ4#,55196908-198007

ISO

36313SHAFT, TRANSFER FRONT DRIVE SHIFT

main36313-60030iFJ40,55196903-197401

FOR DIRECT TYPE,3-SPEED T/M

sub36313-60031

main36313-60031iFJ40,55197401-197501

FOR DIRECT TYPE,3-SPEED T/M

main36313-60040iFJ40,55197309-197401

FOR DIRECT TYPE,4-SPEED T/M

sub36313-60041

main36313-60041iFJ40,55197401-197504

FOR DIRECT TYPE,4-SPEED T/M

main36313-60042iBJ40,FJ4#,55197504-198007

36313ABOLT, LOCK(FOR TRANSFER FRONT DRIVE SHIFT SHAFT LOCK)

main90101-12037iFJ40,55196903-197104

12-1.5PX9.4

main90341-12069iBJ40,FJ4#,55197104-198007

12-1.25PX9.4

36313BGASKET, SHIFT FORK LOCK BOLT

main90430-12030iBJ40,FJ4#,55196903-198007

36313CSPRING, SHIFT FORK LOCK

main90501-12033iBJ40,FJ4#,55196903-198007

36313DBALL, SHIFT FORK LOCK

main90360-10003iBJ40,FJ4#,55196903-198007

36313ERING, O(FOR SHIFT FORK SHAFT)

main90301-22028iBJ40,FJ4#,55196903-198007

36313GSEAL, DUST(FOR SHIFT FORK SHAFT)

main90303-23019iBJ40,FJ4#,55196903-198007

36314SHAFT, TRANSFER HIGH AND LOW SHIFT FORK

main36314-60020iBJ40,FJ4#,55196903-198007

36314ARING, O (FOR TRANSFER SHIFT FORK SHAFT)

main90301-08029iBJ40,FJ4#,55196903-198007

36314FPLATE, LOCK (FOR TRANSFER HIGH & LOW SHIFT FORK SHAFT)

main36726-60010iBJ40,FJ4#,55196903-198007

36315PIN, TRANSFER FORK SHAFT

main36315-60010iBJ40,FJ4#,55196903-198007

36318BOOT, TRANSFER FRONT DRIVE SHIFT

main36318-60010iBJ40,FJ4#,55196903-198007

36321LEVER, TRANSFER FRONT DRIVE SHIFT

main36321-60020iFJ40,55196903-197209

FOR 3-SPEED TRANSMISSION

sub36321-60021

main36321-60021iFJ40,55197209-197501

FOR 3-SPEED TRANSMISSION

sub36321-60022

main36321-60023iBJ40,FJ4#,55197504-198007

main36321-60031iFJ40,55197309-197502

FOR 4-SPEED TRANSMISSION

sub36321-60032

main36321-60032iFJ40,55197502-197504

FOR 4-SPEED TRANSMISSION

main36321-60050iBJ40,FJ4#197901-198007

36323GUIDE, TRANSFER SHIFT LEVER

main36323-60010iFJ40,55196903-197501

FOR 3-SPEED TRANSMISSION

main36323-60030iFJ40,55197309-197504

FOR 4-SPEED TRANSMISSION

main36323-60031iBJ40,FJ4#,55197504-198007

36334PIN, SHIFT LEVER, NO.1

main36334-60020iFJ40,55196903-197504

main36334-60030iFJ40196903-197209

FOR VACUUM TYPE

36335PIN, SHIFT LEVER, NO.2

main36335-60010iFJ40,55196903-197504

36341SHAFT, FRONT DRIVE SHIFT LINK SUPPORT

main36341-60011iFJ40,55196903-196908

FOR 3-SPEED TRANSMISSION

sub36341-60012

main36341-60012iFJ40,55196908-197501

FOR 3-SPEED TRANSMISSION

main36341-60012iBJ40,FJ4#,55197504-198007

main36341-60020iFJ40,55197309-197504

FOR 4-SPEED TRANSMISSION

sub36341-60012

36343SHOE, FRONT DRIVE SHIFT LINK LEVER (FOR DIRECT TYPE)

main36343-60010iBJ40,FJ4#,55196903-198007

36351ROD, HIGH & LOW SHIFT, NO.1

main36308-60020iFJ40,55197209-197501

FOR MAGNET TYPE.3-SPEED T/M

main36308-60030iFJ4#,55197209-197709

FOR MAGNET TYPE.4-SPEED T/M

main36351-60020iFJ40,55196903-197501

FOR DIRECT TYPE.3-SPEED T/M

main36351-60030iFJ55196903-197209

FOR VACUUM TYPE

main36351-60040iFJ40,55197309-197504

FOR DIRECT TYPE.4-SPEED T/M

main36351-60041iBJ40,FJ4#,55197504-198007

FOR DIRECT TYPE

sub36340-60050

main36351-60050iFJ40196903-197209

FOR VACUUM TYPE

36353ROD, HIGH & LOW SHIFT, NO.3

main36353-60020iFJ40,55196903-197504

36357LEVER SUB-ASSY, HIGH & LOW SHIFT LINK

main33051-60020iFJ55196903-197209

FOR VACUUM TYPE

main36306-60020iFJ40196903-197209

FOR VACUUM TYPE

main36357-60020iFJ40,55196903-197504

36362LEVER, TRANSFER HIGH AND LOW SHIFT OUTER

main36362-60010iFJ40,55196903-197504

FOR VACUUM OR DIRECT TYPE

main36362-60011iBJ40,FJ4#,55197504-198007

FOR DIRECT TYPE

main36362-60020iFJ4#,55197209-197709

FOR MAGNET TYPE

36365SHAFT, LINK SUPPORT

main36365-60010iFJ40,55196903-197504

9111150840

main91111-50840

9161140816

main91611-40816

9161140855

main91611-40855

9411040800

main94110-40800

9411041000

main94110-41000

9451200800

main94512-00800

9451201000

main94512-01000

9451201200

main94512-01200

9454100800

main94541-00800

9461110800

main94611-10800

9461111300

main94611-11300

9461310800

main94613-10800

9538102015

main95381-02015

9538102025

main95381-02025

9538103025

main95381-03025

9645100600

main96451-00600

50 parts on this diagram · 5 diagrams in section
