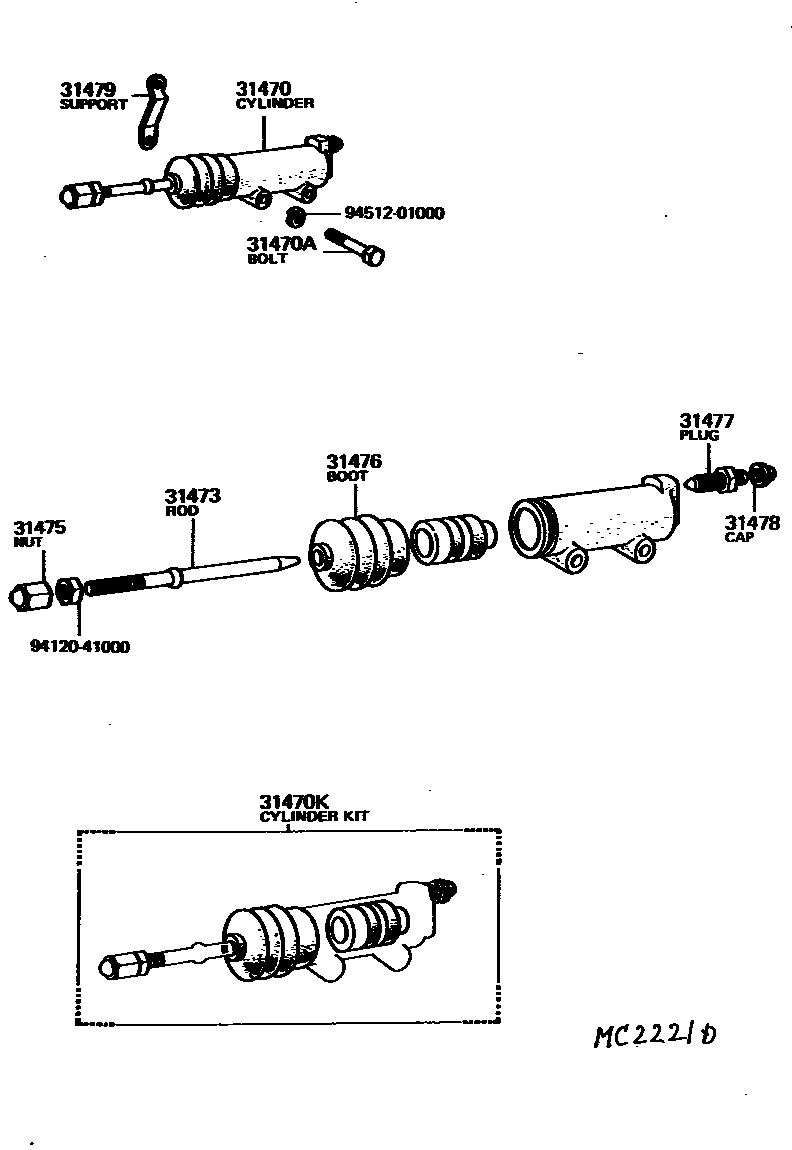

CLUTCH RELEASE CYLINDER

0001 1 0002 1 0003 1

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-60021iFJ40196903-197007

main31470-60022iFJ40197007-197408

main31470-60030iFJ55196903-197408

main31470-60050iBJ40197803-198007

main31470-60071iFJ4#,55197408-198007

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91111-41055iFJ4#197211-197711

main91111-41056iFJ40196903-197211

sub91111-51056

main91111-51063iFJ55196903-197211

sub91112-61065

main91111-51065iFJ55197211-197711

main91611-40828iBJ40197803-198007

sub91611-60828

main91611-41055iFJ4#,55197711-198007

sub91611-61055

31470KCYLINDER KIT, CLUTCH RELEASE

main04313-40021iBJ40197803-198007

main04313-60011iFJ40,55196903-197408

main04313-60020iFJ4#,55197408-198007

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-30020iBJ40197803-198007

main31473-60021iFJ40196903-197408

main31473-60031iFJ55196903-197408

main31473-60050iFJ4#,55197408-198007

31475NUT, CLUTCH RELEASE CYLINDER PUSH ROD

main31474-60010iFJ40,55196903-197408

main31475-60010iFJ4#,55197408-198007

sub31475-60020

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-40010iBJ40197803-198007

main31476-60020iFJ40,55196903-197408

main31476-60031iFJ4#,55197408-198007

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iBJ40,FJ4#,55197408-198007

main47547-30020iFJ40,55196903-197408

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iBJ40,FJ4#,55197206-198007

main47548-20010iFJ40,55196903-197206

31479SUPPORT, CLUTCH RELEASE CYLINDER

main31479-60010iFJ40197209-197408

main31479-60020iFJ40196903-197209

9412041000

main94120-41000

9451201000

main94512-01000

11 parts on this diagram · 3 diagrams in section
