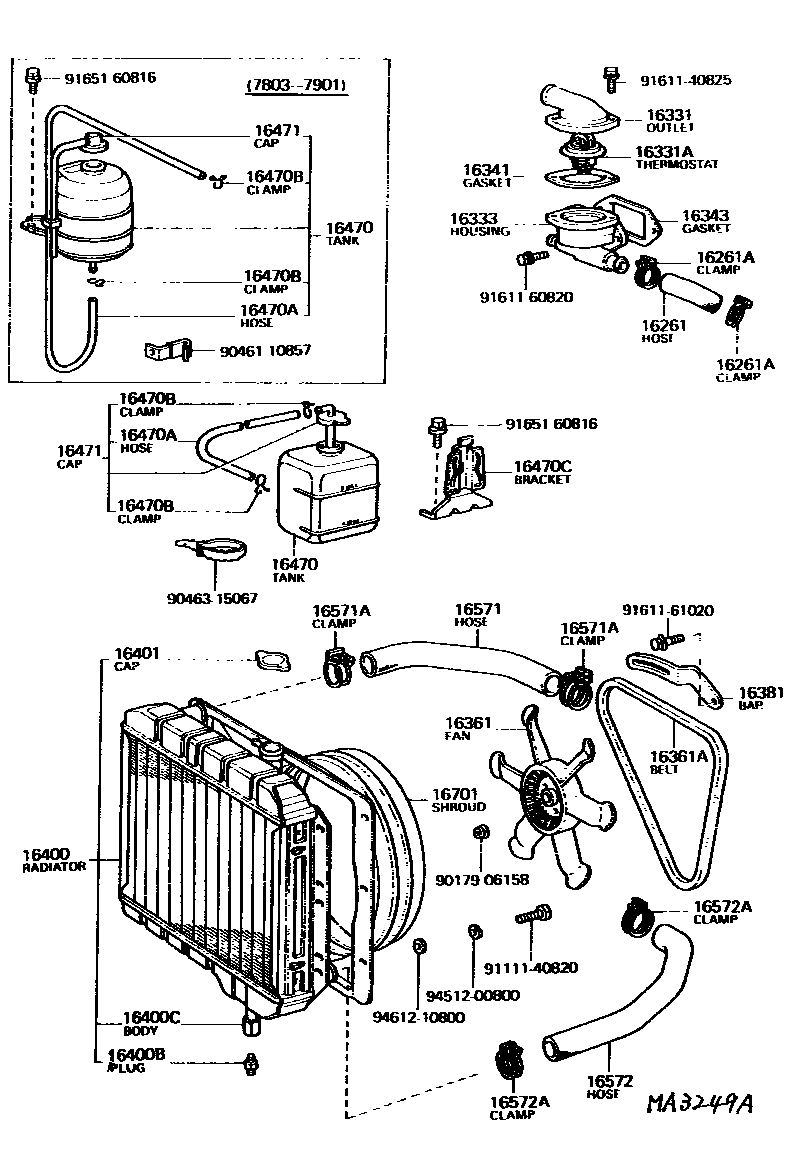

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

16261HOSE, WATER BY-PASS

main16261-56011iB..BJ40197803-198007

sub16261-56012

main16261-60011iF,2F..FJ4#,55196903-198007

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90044-60053iB..BJ40197803-198007

main90460-33020iF..FJ40,55196903-197103

sub96112-10330

main96112-10330iF,2F..FJ4#,55197103-198007

16331OUTLET, WATER

main16331-56010iB..BJ40197803-198007

main16333-60070iF,2F..FJ4#,55196903-197901

main16333-61020i2F..FJ40,55..USA197601-197608

CALIFORNIA SPEC. W/OIL COOLER

main16333-61020i2F..FJ40,55..USA197608-197901

W/OIL COOLER

main16333-61040i2F..FJ4#,55..CND197901-198007

main16333-61060i2F..FJ40,55..USA197901-198007

W/OIL COOLER

16331ATHERMOSTAT

main90916-03012iF..FJ40,55196903-197501

WAX 76.5-90 FUJI-THOMSON

sub90916-03014

main90916-03014iF..FJ40,55196903-197501

WAX 82-95 FUJI-THOMSON ARCTIC

main90916-03014i2F..FJ4#,55197501-197901

WAX 82-95 FUJI-THOMSON

main90916-03045iB..BJ40197803-198007

*WAX 88-100,WAX 88-100 NIHON THERMOSTAT

sub90916-03059

main90916-03048i2F..FJ4#,55197901-198007

WAX 82-95 FUJI-THOMSON

16333HOUSING, WATER OUTLET

main16331-60040iF..FJ40,55196903-197901

main16331-60040i2F..FJ40,55197601-197608

CALIFORNIA SPEC. W/OIL COOLER

main16331-61010i2F..FJ40,55197511-197601

CALIFORNIA SPEC.

main16331-61010i2F..FJ40,55197501-197511

main16331-61020i2F..FJ40,55..USA197608-197709

main16331-61030i2F..FJ40,55..USA197709-197901

main16331-61031i2F..FJ40,55..USA197901-198007

main16331-61040i2F..FJ4#,55..CND197901-198007

main16333-56011iB..BJ40197803-197811

sub16333-56012

main16333-56012iB..BJ40197811-198007

sub16333-56020

16341GASKET, WATER OUTLET

main16341-51010iB..BJ40197811-198007

sub16341-51011

main16341-56010iB..BJ40197803-197811

sub16341-51010

main16341-60020iF,2F..FJ4#,55196903-198007

16343GASKET, WATER OUTLET HOUSING

main16343-56012iB..BJ40197803-198007

sub16343-56020

main16343-60010iF,2F..FJ4#,55196903-198007

sub16343-60011

16361FAN

main16361-38010iB..BJ40197901-198007

7 BLADES

main16361-41050iB..BJ40197803-197901

7 BLADES

main16361-60050iF..FJ40,55196903-197310

4 BLADES

main16361-60060iF..FJ55196903-197310

5 BLADES

main16361-60090i2F..FJ45,55;2F..FJ40..CND197310-198007

6 BLADES

main16361-60100i2F..FJ40,55..USA197501-197604

8 BLADES 0/S FAN

sub16361-60101

main16361-60100iF,2F..FJ55197310-197604

8 BLADES W/COOLER

sub16361-60101

main16361-60101i2F..FJ55..USA197604-197901

8 BLADES 0/S FAN

main16361-60101i2F..FJ55..USA197604-197901

8 BLADES W/COOLER

main16361-61010i2F..FJ40..USA197608-197901

7 BLADES

main16361-61011i2F..FJ40,55197901-198007

7 BLADES

main16361-61020i2F..FJ40,55..USA197901-198007

W/COOLER

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02044i2F..FJ45197602-198007

L=1065

sub99343-11060

main90916-02045i2F..FJ40,55..CND197901-198007

L=1075

sub99343-11070

main90916-02047i2F..FJ40,55..USA197501-198007

L=1275

sub99343-11265

main99323-01175iB..BJ40197807-197901

L=1175

main99343-01175iB..BJ40197901-198007

L=1175

main99523-11046iF..FJ40,55196903-197501

L=1046

sub99323-01040

main99523-11067iF..FJ40,55196903-197501

L=1067 12V 55A ALTER.

sub99323-01060

main99523-11176iB..BJ40197803-197807

L=1176

sub99323-01175

16381BAR, FAN BELT ADJUSTING

main16381-56020iB..BJ40197803-198007

main16381-60081iF..FJ40,55196903-198007

main16381-61010i2F..FJ40,55..USA197501-197901

main16381-61011i2F..FJ40,55..USA197901-198007

16400RADIATOR ASSY

main16400-59025iB..BJ40197803-198007

main16400-60011iF..FJ40196903-197111

sub16400-60012

main16400-60012iF..FJ40197111-197501

main16400-60120iF..FJ55197010-197112

W/COOLER

sub16400-60121

main16400-60121iF..FJ55197112-197310

sub16400-60122

main16400-60122iF..FJ55197310-197501

main16400-60130iF..FJ55196903-196910

sub16400-60131

main16400-60131iF..FJ55196910-197108

main16400-61010i2F..FJ55197501-197509

main16400-61011i2F..FJ55197509-197901

main16400-61012i2F..FJ55197901-198007

main16400-61020i2F..FJ4#197501-198007

sub16400-49356

main16400-61030i2F..FJ40..USA197901-198007

W/COOLER

16400BPLUG, RADIATOR DRAIN COCK

main90910-09016iF..FJ40196903-197308

main90910-09029iF..FJ55196903-196908

sub96431-23814

main96431-23814iF,2F..FJ4#,55196910-198007

16400CBODY, RADIATOR DRAIN COCK

main90910-09066iB..BJ40197806-198007

sub96431-03873

16401CAP SUB-ASSY, RADIATOR

main16401-23070iF..FJ40,55197402-197501

sub16401-41021

main16401-40120iF..FJ55196903-197111

main16401-41020iB..BJ40197501-197808

sub16401-41021

main16401-41021i2F..FJ4#,55197808-198007

main16401-60040iF..FJ40196903-197111

main16407-60010iF..FJ40,55197111-197402

16470TANK ASSY, RADIATOR RESERVE

main16470-47010i2F..FJ40197501-197601

sub16470-47011

sub16402-61010

main16470-47011i2F..FJ4#197601-197709

sub16470-56041

main16470-56031iB..BJ40197803-197901

main16470-61010i2F..FJ55197501-197709

main16480-24010iB..BJ40197901-198007

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main90445-12023iB..BJ40197901-198007

L=600(*H,L=380)

sub90445-12078

main90445-12560iB..BJ40197803-197901

L=920(*H,L=840)

sub90445-12449

main90445-12897i2F..FJ4#,55197501-197709

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085iB..BJ40197501-198007

16470CBRACKET(FOR RADIATOR RESERVE TANK)

main16402-56010iB..BJ40197901-198007

main16402-61010i2F..FJ4#197601-197709

16471CAP SUB-ASSY, RESERVE TANK

main16405-56010iB..BJ40197901-198007

sub16405-56011

main16405-60020i2F..FJ4#,55197709-198007

main16471-41060i2F..FJ4#197501-197709

sub16471-26020

main16471-56030i2F..FJ55197501-197901

16571HOSE, RADIATOR, INLET

main16571-56010iB..BJ40197803-198007

main16571-60050iF..FJ55196903-197310

sub16571-60140

main16571-60060iF,2F..FJ4#196903-197608

main16571-60130iF..FJ40,55197309-197310

W/EGR CALIFORNIA SPEC.

sub16571-60131

main16571-60131iF..FJ40,55197310-197501

W/EGR CALIFORNIA SPEC.

main16571-60140iF,2F..FJ55197310-197901

main16571-61040i2F..FJ4#197608-197901

main16571-61041i2F..FJ4#197901-198007

main16571-61060i2F..FJ55197901-198007

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90460-49062iF,2F..FJ4#,55196912-197901

ID=49

sub96111-10490

main90460-50016iF..FJ40,55196903-196912

ID=50

sub96111-10500

main96111-10500iB..BJ40197803-198007

16572HOSE, RADIATOR, OUTLET

main16571-60090iF..FJ55197010-197310

W/COOLER RADIATOR SIDE

sub16571-60091

main16571-60091i2F..FJ55..USA197310-198007

W/COOLER RADIATOR SIDE

main16571-60120iF..FJ55197309-197310

W/COOLER & EGR RADIATOR SIDE

sub16571-60121

main16571-60121iF..FJ55197310-197501

W/COOLER & EGR RADIATOR SIDE

main16571-61050i2F..FJ4#197608-198007

RADIATOR SIDE

main16571-61070i2F..FJ40..USA197901-198007

W/COOLER RADIATOR SIDE

main16572-56020iB..BJ40197803-198007

main90916-01055iF,2F..FJ55196903-198007

PUMP SIDE

main90916-01056iF,2F..FJ4#196903-198007

PUMP SIDE

main90916-01057iF..FJ55196903-197310

RADIATOR SIDE

sub90916-01137

main90916-01058iF,2F..FJ4#196903-197608

RADIATOR SIDE

main90916-01096iF..FJ55197010-197501

W/COOLER PUMP SIDE

main90916-01132iF..FJ55197309-197501

PUMP SIDE W/EGR CAL.

main90916-01137iF,2F..FJ55197310-198007

RADIATOR SIDE

main90916-01142i2F..FJ55197501-197901

W/COOLER PUMP SIDE

main90916-01163i2F..FJ40,55..USA197901-198007

W/COOLER PUMP SIDE

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90460-50016iF..FJ40,55196903-197204

ID=50

sub96111-10500

main90460-58013iF,2F..FJ4#,55196903-197901

ID=58

sub96111-10580

main96111-10500iF,2F..FJ4#,55197204-198007

ID=50

main96111-10560iB..BJ40197803-198007

ID=56

main96111-10580i2F..FJ4#,55197901-198007

ID=58

main96111-10600i2F..FJ40,55..USA197901-198007

ID=60,W/COOLER

16701SHROUD SUB-ASSY, FAN

main16701-56020iB..BJ40197803-197901

sub16701-56021

main16701-56021iB..BJ40197901-198007

main16711-60011iF..FJ40196903-197209

sub16711-60012

main16711-60012iF..FJ40197209-197501

sub16711-61020

main16711-60130iF..FJ55197010-197310

W/COOLER

sub16711-60170

main16711-60131iF..FJ55197310-197501

W/COOLER

main16711-60150iF..FJ55197108-197310

main16711-60151iF..FJ55197310-197501

main16711-60180iF..FJ40,55197309-197310

W/EGR CALIFORNIA SPEC.

main16711-60181iF..FJ40,55197310-197501

W/EGR CALIFORNIA SPEC.

main16711-60190iF..FJ55197309-197310

W/COOLER & EGR CAL.

main16711-60191iF..FJ55197310-197501

W/COOLER & EGR CAL.

main16711-61010i2F..FJ55197501-197509

main16711-61011i2F..FJ55197509-197604

sub16711-61012

main16711-61012i2F..FJ55197604-197901

main16711-61020i2F..FJ40197501-197604

sub16711-61022

main16711-61021i2F..FJ4#..CND197608-198007

main16711-61022i2F..FJ4#197604-197608

main16711-61030i2F..FJ40..USA197501-197604

O/S FAN

sub16711-61032

main16711-61032i2F..FJ40..USA197604-197608

O/S FAN

main16711-61040i2F..FJ55197501-197509

W/COOLER;O/S FAN

main16711-61041i2F..FJ55197509-197604

W/COOLER;O/S FAN

sub16711-61042

main16711-61042i2F..FJ55..USA197604-197901

W/COOLER OR O/S FAN

main16711-61080i2F..FJ40..USA197901-198007

W/COOLER

main16711-61090i2F..FJ40..USA197608-197901

main16711-61091i2F..FJ40197901-198007

main16711-61100i2F..FJ55..CND197901-198007

main16711-61110i2F..FJ55..USA197901-198007

main16711-61120i2F..FJ55..USA197901-198007

W/COOLER

9017906158

main90179-06158

9046110857

main90461-10857

9046315067

main90463-15067

9111140820

main91111-40820

9161140825

main91611-40825

9161160820

main91611-60820

9161161020

main91611-61020

9165160816

main91651-60816

9451200800

main94512-00800

9461210800

main94612-10800

34 parts on this diagram · 8 diagrams in section
