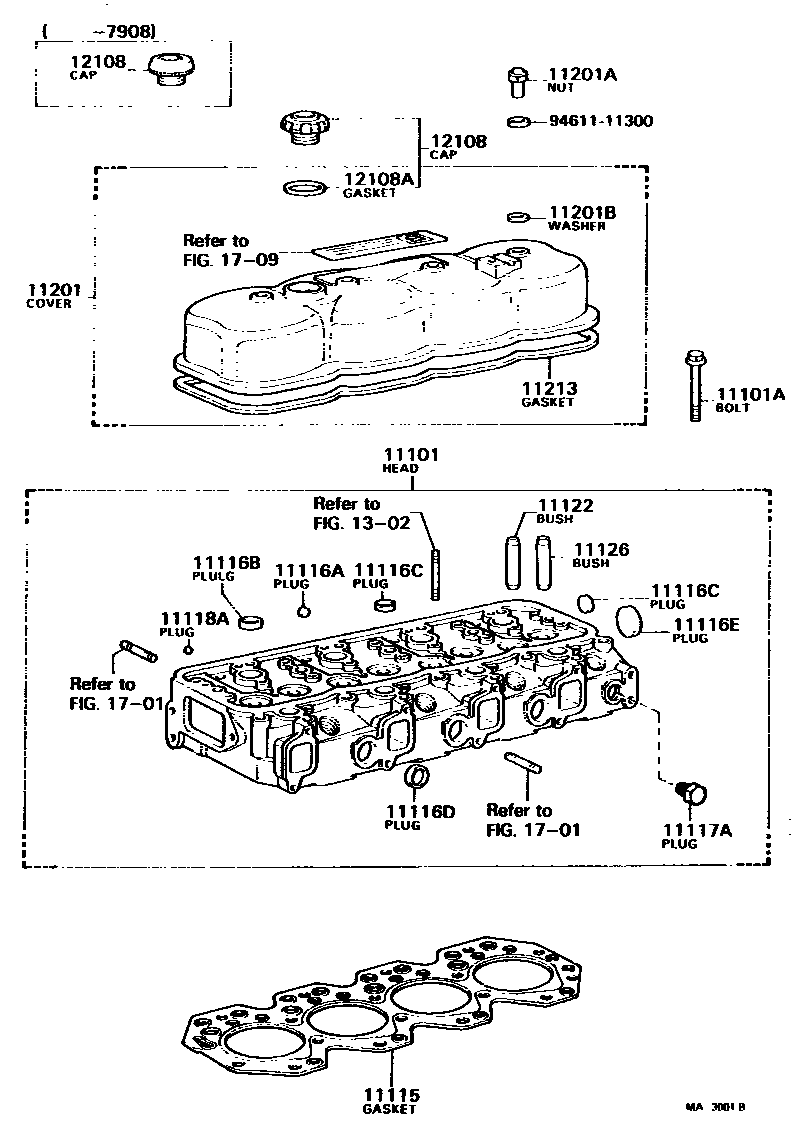

CYLINDER HEAD
11101ABOLT(FOR CYLINDER HEAD SET)
12-1.25PX119-25
13-1.75PX122-27
13-1.75PX145-27
11116APLUG, TIGHT, NO.1
OD=10.5
OD=50
11116BPLUG, TIGHT, NO.2
OD=25
11116CPLUG, TIGHT, NO.3
OD=21
OD=21
11116DPLUG, TIGHT, NO.4
11116EPLUG, TIGHT, NO.5
11118APLUG, STRAIGHT, NO.1
L=5.5,OD=7.3
L=3.5,OD=6.7
11201ANUT, CAP(FOR CYLINDER HEAD COVER)
11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)
12108AGASKET(FOR OIL FILLER CAP)
1302
1701
1709
9461111300
main94611-11300
22 parts on this diagram · 3 diagrams in section
