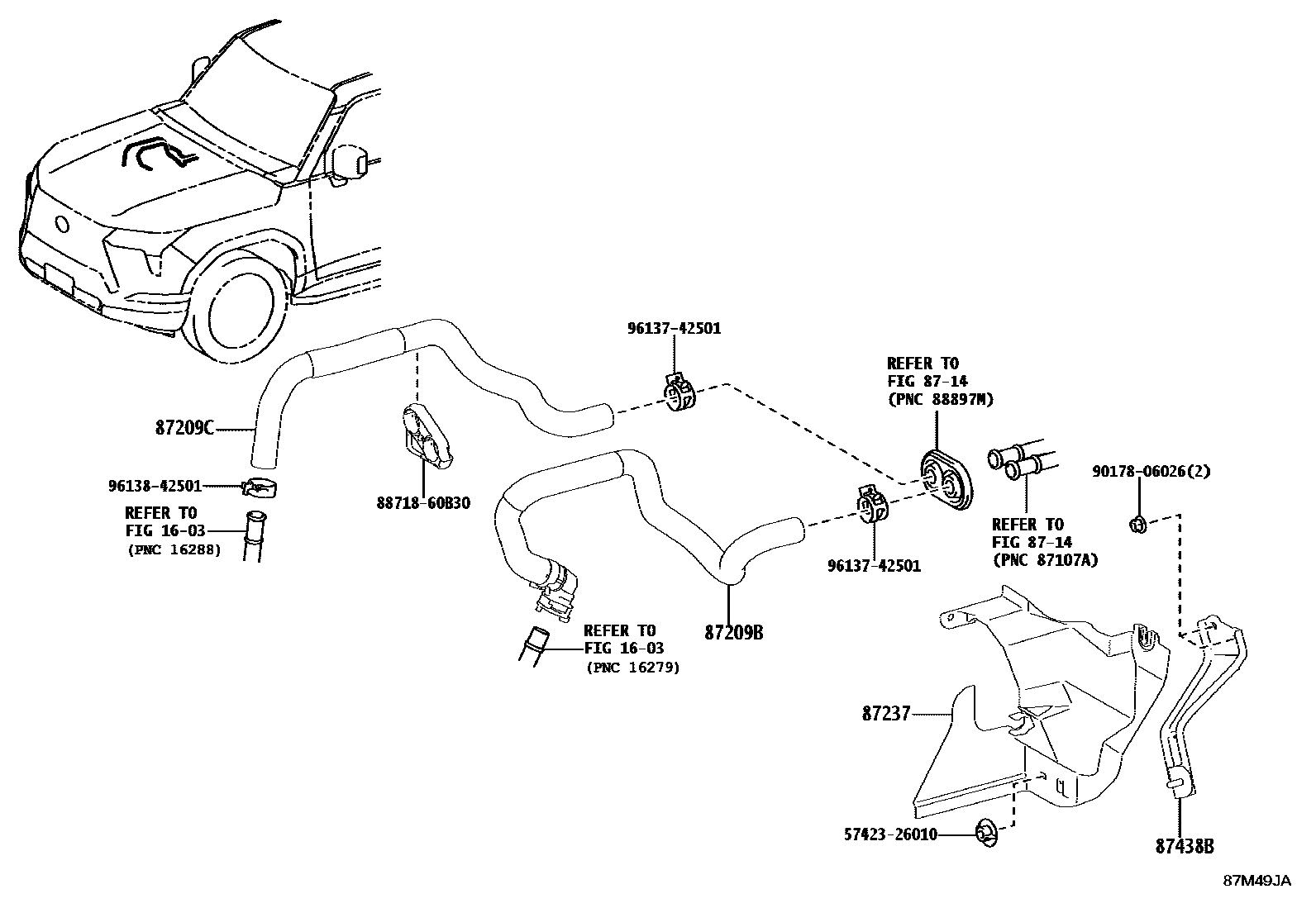

HEATING & AIR CONDITIONING - WATER PIPING

0001 1FRONT(SINGLE) 0002 1FRONT(DUAL) 0003 1REAR NO.1 0004 1REAR NO.2

1603

8714

87209BHOSE SUB-ASSY, WATER, B

main87209-60Q70iVJA252202402

87209CHOSE SUB-ASSY, WATER, C

main87243-60320iVJA252202402

87237COVER, HEATER PIPING

main87237-60030iVJA252202402

87438BBRACKET, HEATER PIPE, C

5742326010BRACKET, FRONT FLOOR REINFORCEMENT, RH

main57423-26010¥160

8871860B30PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-60B30¥600

9017806026

main90178-06026¥80

9613742501

main96137-42501¥240

9613842501

main96138-42501¥180

11 parts on this diagram · 4 diagrams in section
