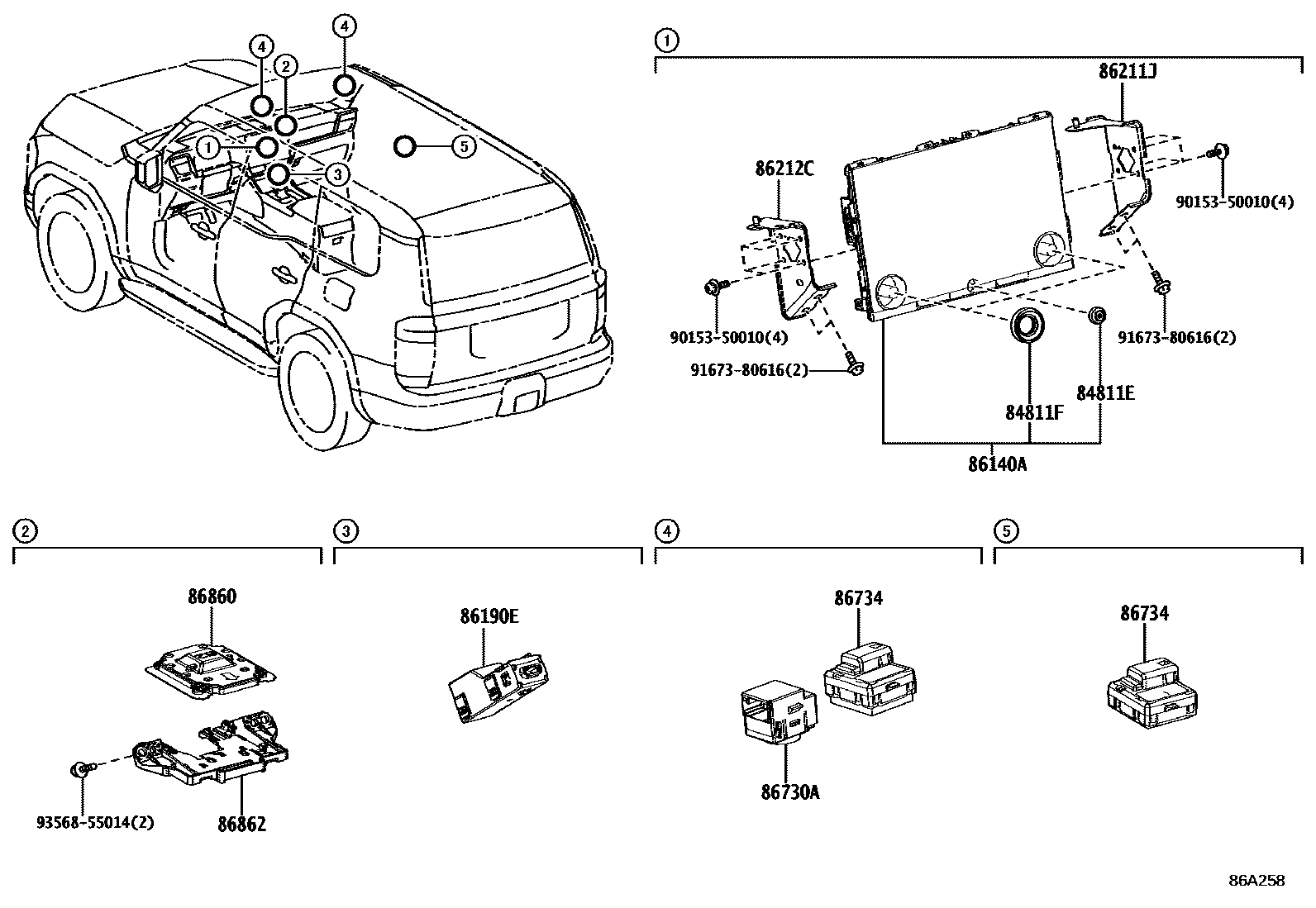

NAVIGATION & FRONT MONITOR DISPLAY

84811EKNOB, SWITCH

main90010-24204iVJA252202402

84811FKNOB, SWITCH

main90010-24205×2iVJA252202402

86140ARECEIVER ASSY, RADIO & DISPLAY

main86100-60A00supersedes 86100-60880iVJA252202402

PANASONIC,CANADA SPEC

86190EADAPTER ASSY, STEREO JACK

main86190-48130iVJA252202402

86211JBRACKET, RADIO RECEIVER, NO.1

main86211-60740iVJA252202402

86212CBRACKET, RADIO RECEIVER, NO.2

main86212-60730iVJA252202402

86730AMICROPHONE ASSY, TELEPHONE

main86730-78010×2iVJA252202402

86734MICROPHONE, ACTIVE NOISE CONTROL

main86734-11030×3iVJA252202402

86860ANTENNA ASSY, NAVIGATION

main86860-78010supersedes 86880-42010iVJA252202402

GUAM SPEC

86862BRACKET, NAVIGATION ANTENNA

main86862-76050iVJA252202402

9015350010

main90153-50010

9167380616

main91673-80616

9356855014

main93568-55014

13 parts on this diagram · 1 diagram in section
