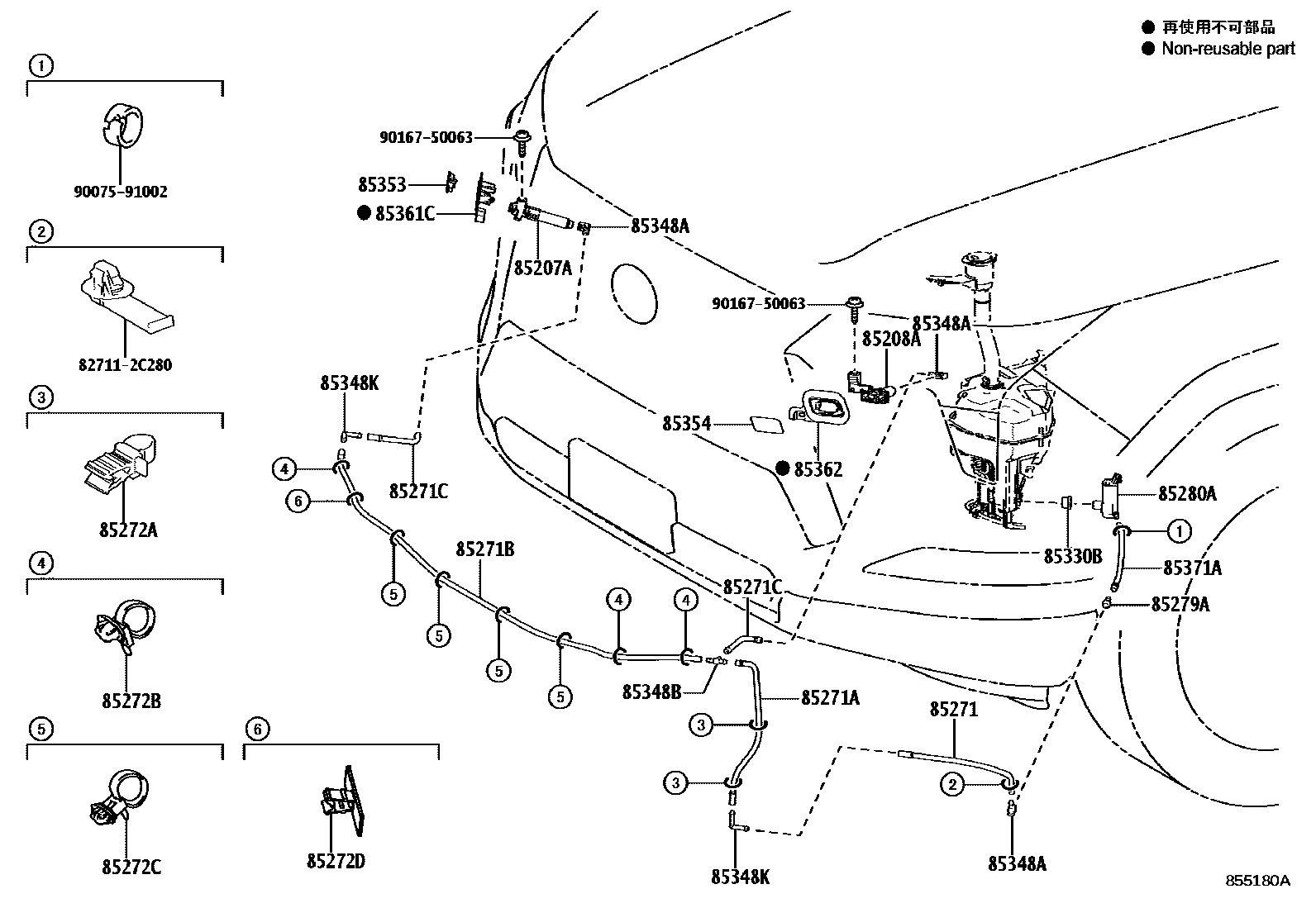

HEADLAMP CLEANER
85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH
COLD AREA SPEC
85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH
COLD AREA SPEC
85271HOSE, HEADLAMP CLEANER, NO.1
L=280,COLD AREA SPEC
85271AHOSE, HEADLAMP CLEANER, NO.2
L=360,COLD AREA SPEC
85271BHOSE, HEADLAMP CLEANER, NO.3
L=1360,COLD AREA SPEC
85271CHOSE, HEADLAMP CLEANER, NO.4
L=140,COLD AREA SPEC
85272ACLAMP, HEADLAMP CLEANER, NO.1
COLD AREA SPEC
85272BCLAMP, HEADLAMP CLEANER, NO.2
COLD AREA SPEC
85272CCLAMP, HEADLAMP CLEANER, NO.3
COLD AREA SPEC
85272DCLAMP, HEADLAMP CLEANER, NO.4
COLD AREA SPEC
85279AJOINT, HEADLAMP CLEANER HOSE
COLD AREA SPEC
85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER
COLD AREA SPEC
85330BBUSH, HEADLAMP CLEANER WASHER JAR
COLD AREA SPEC
85348AJOINT, HEADLAMP CLEANER HOSE, NO.1
COLD AREA SPEC
85348BJOINT, HEADLAMP CLEANER HOSE, NO.2
COLD AREA SPEC
85348KJOINT, HEADLAMP CLEANER ELBOW, NO.1
COLD AREA SPEC
85353COVER, HEADLAMP WASHER, RH
COLD AREA SPEC,SONIC QUARTZ,085
COLD AREA SPEC,MERCURY GRAY MC.,1H9
COLD AREA SPEC,SONIC TITANIUM,1J7 ,M06
COLD AREA SPEC,TITANIUM CARBIDE GRAY,1L8 ,M07
COLD AREA SPEC,GRAPHITE BLACK GF.,223
COLD AREA SPEC,MOON DESERT,M08
COLD AREA SPEC,TERRANE KHAKI M.M.,6X4 ,M09
COLD AREA SPEC,DEEP BLUE MC.,8X5
85354COVER, HEADLAMP WASHER, LH
COLD AREA SPEC,SONIC QUARTZ,085
COLD AREA SPEC,MERCURY GRAY MC.,1H9
COLD AREA SPEC,SONIC TITANIUM,1J7 ,M06
COLD AREA SPEC,TITANIUM CARBIDE GRAY,1L8 ,M07
COLD AREA SPEC,GRAPHITE BLACK GF.,223
COLD AREA SPEC,MOON DESERT,M08
COLD AREA SPEC,TERRANE KHAKI M.M.,6X4 ,M09
COLD AREA SPEC,DEEP BLUE MC.,8X5
85361CBRACKET, WASHER
COLD AREA SPEC
85362BRACKET, WASHER, NO.2
COLD AREA SPEC
85371AHOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)
L=200,COLD AREA SPEC
827112C280WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-2C280
9007591002
main90075-91002
9016750063
main90167-50063
24 parts on this diagram · 1 diagram in section
