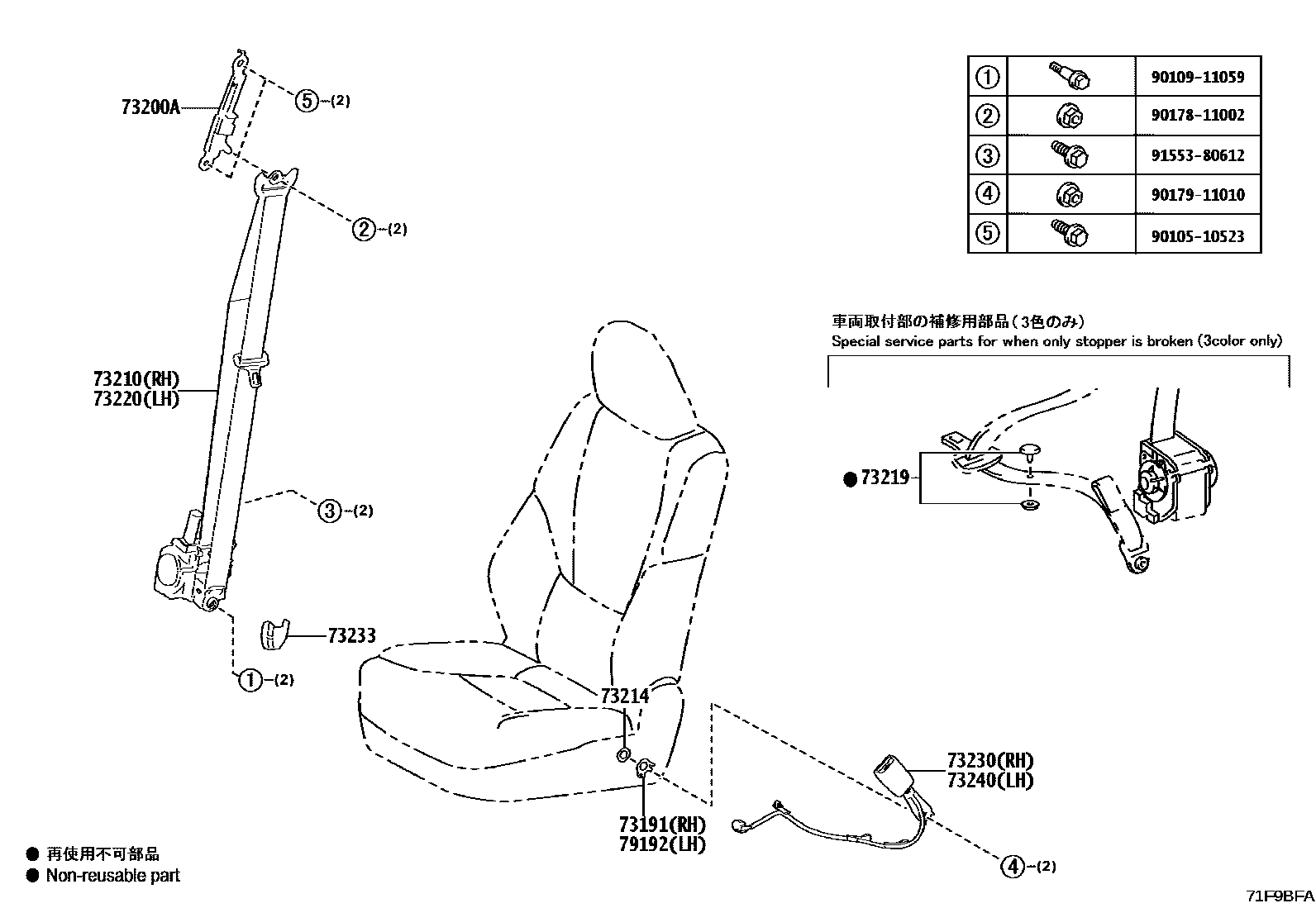

SEAT BELT

0001 1FRONT SEAT 0002 1REAR NO.1 SEAT(4:4 TUMBLE SEA0003 1REAR NO.1 SEAT(6:4 TUMBLE SEA0004 1REAR NO.2 SEAT

73191BRACKET, SEAT BELT INNER ANCHOR, NO.1 RH

main73191-60020iVJA252202402

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-42020iVJA252202402

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-60B10-C1iVJA252202402

BLACK,TRIM1#,2#,4#

73214PLATE, FRONT SEAT BELT ANCHOR

main73214-75010iVJA252202402

73219STOPPER, TONGUE PLATE

main73219-02010iVJA252202402

BLACK

main73219-02020iVJA252202402

GRAY

main73219-02030iVJA252202402

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-60820-C1iVJA252202402

BLACK,TRIM1#,2#,4#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-60A90-C0iVJA252202402

BLACK,TRIM1#,2#,4#

73233COVER, LAP BELT OUTER ANCHOR

main73233-60020-C1iVJA252202402

BLACK,TRIM1#,2#,4#

sub73233-60020

sub73233-35010

73240BELT ASSY, FRONT SEAT INNER, LH

main73240-60850-C0iVJA252202402

BLACK,TRIM1#,2#,4#

79192BRACKET, SEAT BELT INNER ANCHOR, NO.1 LH

main73191-60020iVJA252202402

9010510523

main90105-10523

9010911059

main90109-11059

9017811002

main90178-11002

9017911010

main90179-11010

9155380612

main91553-80612

15 parts on this diagram · 4 diagrams in section
