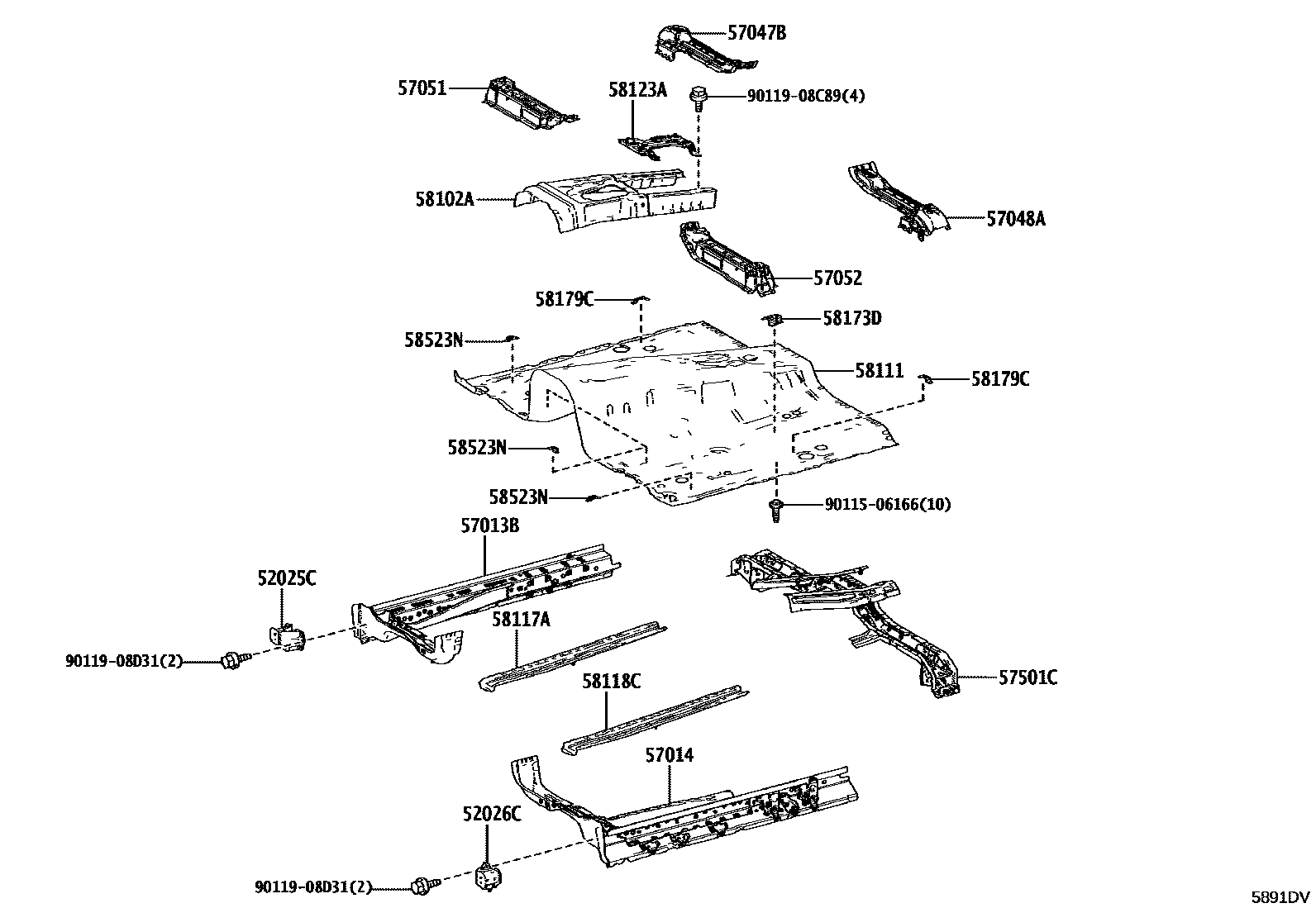

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1FLOOR PANEL & FLOOR MEMBER 0002 1SIDE STEP(TYPE A) 0003 1SIDE STEP(TYPE B) 0004 1SIDE STEP(TYPE C)

52025CEXTENSION SUB-ASSY, FRONT BUMPER, NO.2 RH

main52025-60070iVJA252202402

52026CEXTENSION SUB-ASSY, FRONT BUMPER, NO.2 LH

main52026-60070iVJA252202402

57013BMEMBER SUB-ASSY, FLOOR, FRONT RH

main57013-60060iVJA252202402

57014MEMBER SUB-ASSY, FLOOR, FRONT LH

main57014-60060iVJA252202402

57047BBRACKET SUB-ASSY, FLOOR HOUSING SEAT ANCHOR, RH

main57047-60030iVJA252202402

57048ABRACKET SUB-ASSY, FLOOR HOUSING SEAT ANCHOR, LH

main57048-60030iVJA252202402

57051MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-60100iVJA252202402

57052MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-60100iVJA252202402

57501CBRACE SUB-ASSY, FRONT FLOOR, CENTER

main57501-60040iVJA252202402

58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR

main58102-60130iVJA252202402

58111PAN, FRONT FLOOR

main58111-60G60iVJA252202402

58117AREINFORCEMENT, FRONT FLOOR SIDE, RH

main58117-60050iVJA252202402

58118CREINFORCEMENT, FRONT FLOOR SIDE, LH

main58118-60040iVJA252202402

58123ASUPPORT, SHIFT & SELECT LEVER

main58123-60120iVJA252202402

58173DBRACKET, COMPUTER MOUNTING, NO.4

main58173-60010iVJA252202402

58179CBRACKET, CLAMP FLOOR

main58179-60040×2iVJA252202402

58523NBRACKET, FLOOR CARPET SET

main58523-60020×4iVJA252202402

9011506166

main90115-06166

9011908C89

main90119-08C89

9011908D31

main90119-08D31

20 parts on this diagram · 4 diagrams in section
