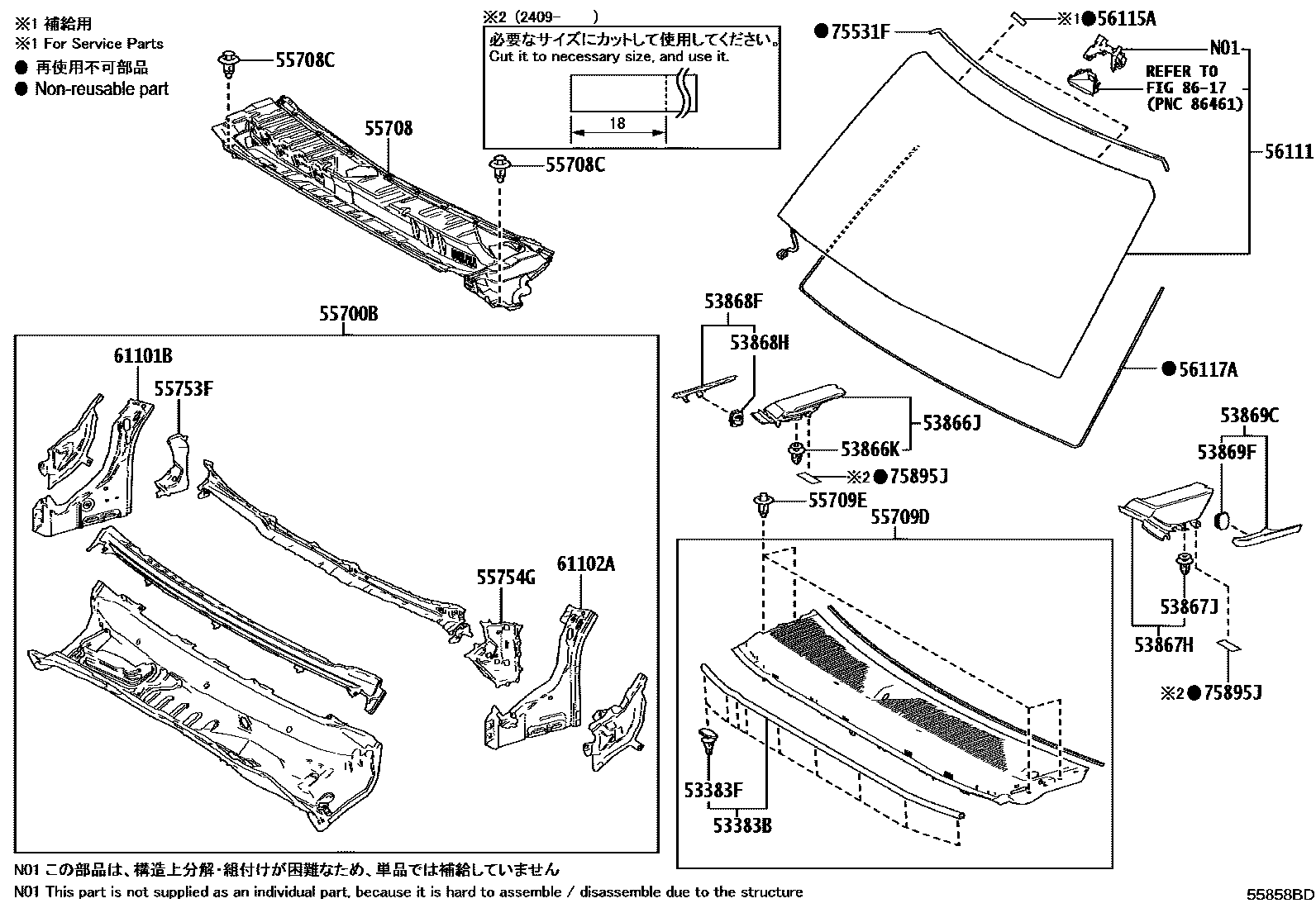

COWL PANEL & WINDSHIELD GLASS
53383BSEAL, HOOD TO COWL TOP
53383FRETAINER, HOOD TO COWL TOP SEAL
53866JSEAL, FRONT FENDER TO COWL SIDE, RH
53866KCLIP, FRONT FENDER TO COWL SIDE SEAL
53867HSEAL, FRONT FENDER TO COWL SIDE, LH
53867JCLIP, FRONT FENDER TO COWL SIDE SEAL
53868FSEAL, FRONT FENDER TO COWL SIDE, NO.2 RH
53868HCLIP, FRONT FENDER TO COWL SIDE SEAL, NO.2 RH
53869CSEAL, FRONT FENDER TO COWL SIDE, NO.2 LH
53869FCLIP, FRONT FENDER TO COWL SIDE SEAL, NO.2 LH
55708LOUVER SUB-ASSY, COWL TOP VENTILATOR
55708CCLIP, COWL TOP VENTILATOR LOUVER
55709DSUPPORT SUB-ASSY, WIPER MOTOR MOUNTING
55709ECLIP, WIPER MOTOR MOUNTING SUPPORT
55753FBRACKET, INSTRUMENT PANEL TO COWL, NO.1
55754GBRACKET, INSTRUMENT PANEL TO COWL, NO.2
56111GLASS, WINDSHIELD
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56117ADAM, WINDOW GLASS ADHESIVE
L=3500(*D,L=2581)
L=3500(*D,L=2581),COLD AREA SPEC
L=3500(*D,L=2581),COLD AREA SPEC&HEAD UP DISPLAY-WITH
L=3500(*D,L=2581),HEAD UP DISPLAY-WITH
61101BPANEL SUB-ASSY, COWL SIDE, RH
61102APANEL SUB-ASSY, COWL SIDE, LH
75531FMOULDING, WINDSHIELD, OUTSIDE UPPER
75895JTAPE, MOULDING, NO.1
8617
25 parts on this diagram · 1 diagram in section
