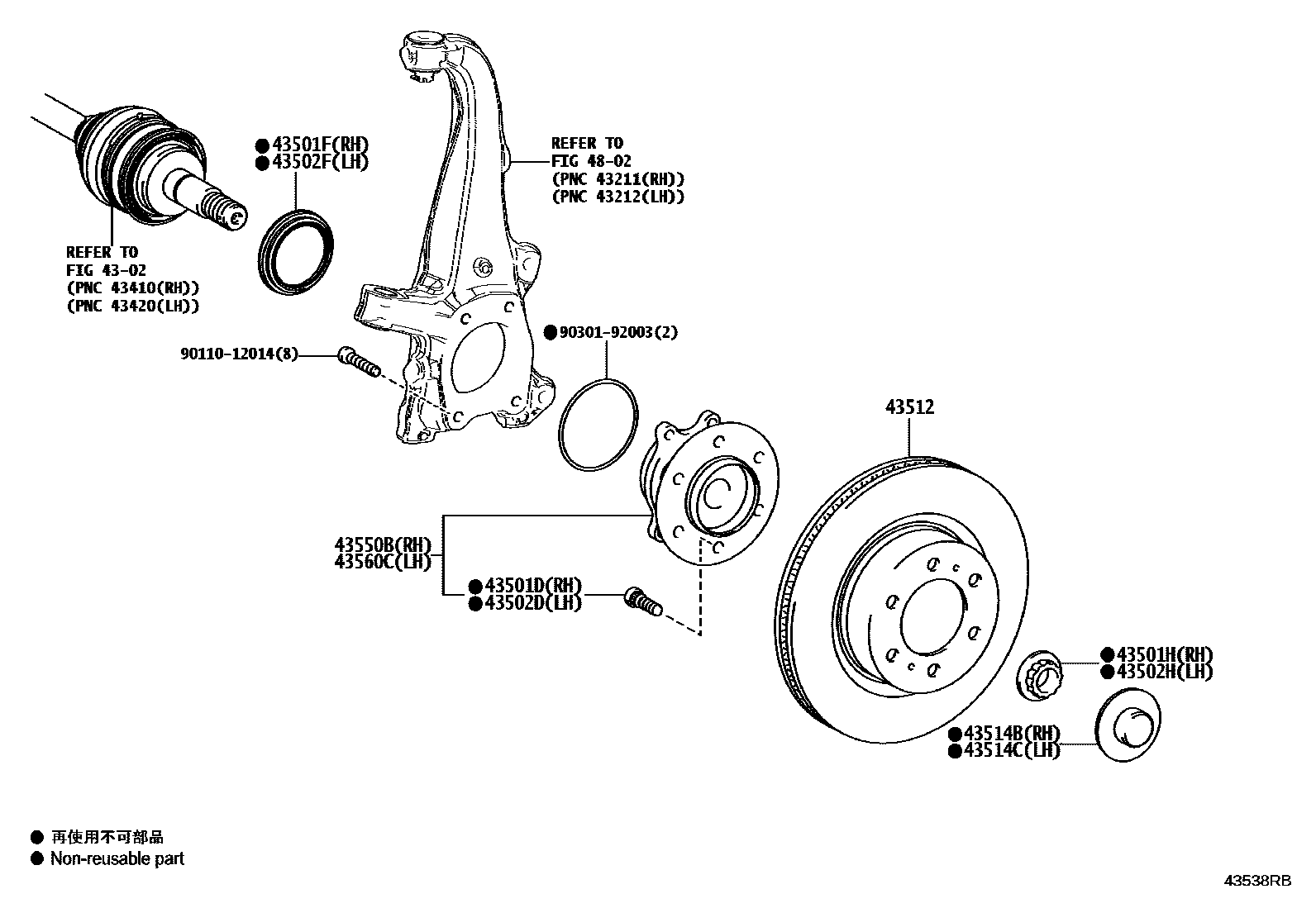

FRONT AXLE HUB

4302

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02083iVJA252¥280202402

43501FSEAL, OIL (FOR FRONT AXLE HUB RH)

main90316-83002iVJA252¥1,260202402

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-28001iVJA252¥300202402

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02083iVJA252¥280202402

43502FSEAL, OIL (FOR FRONT AXLE HUB LH)

main90316-83002iVJA252¥1,260202402

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-28001iVJA252¥300202402

43512DISC, FRONT

main43512-60290iVJA252¥10,900202402

43514BCAP, FRONT AXLE HUB GREASE, RH

main43514-60030iVJA252¥610202402

43514CCAP, FRONT AXLE HUB GREASE, LH

main43514-60030iVJA252¥610202402

43550BHUB & BEARING ASSY, FRONT AXLE W/ABS SENSOR, RH

main43550-60070iVJA252202402

43560CHUB & BEARING ASSY, FRONT AXLE W/ABS SENSOR, LH

main43550-60070iVJA252202402

4802

9011012014

main90110-12014¥190

9030192003

main90301-92003¥200

15 parts on this diagram · 1 diagram in section
