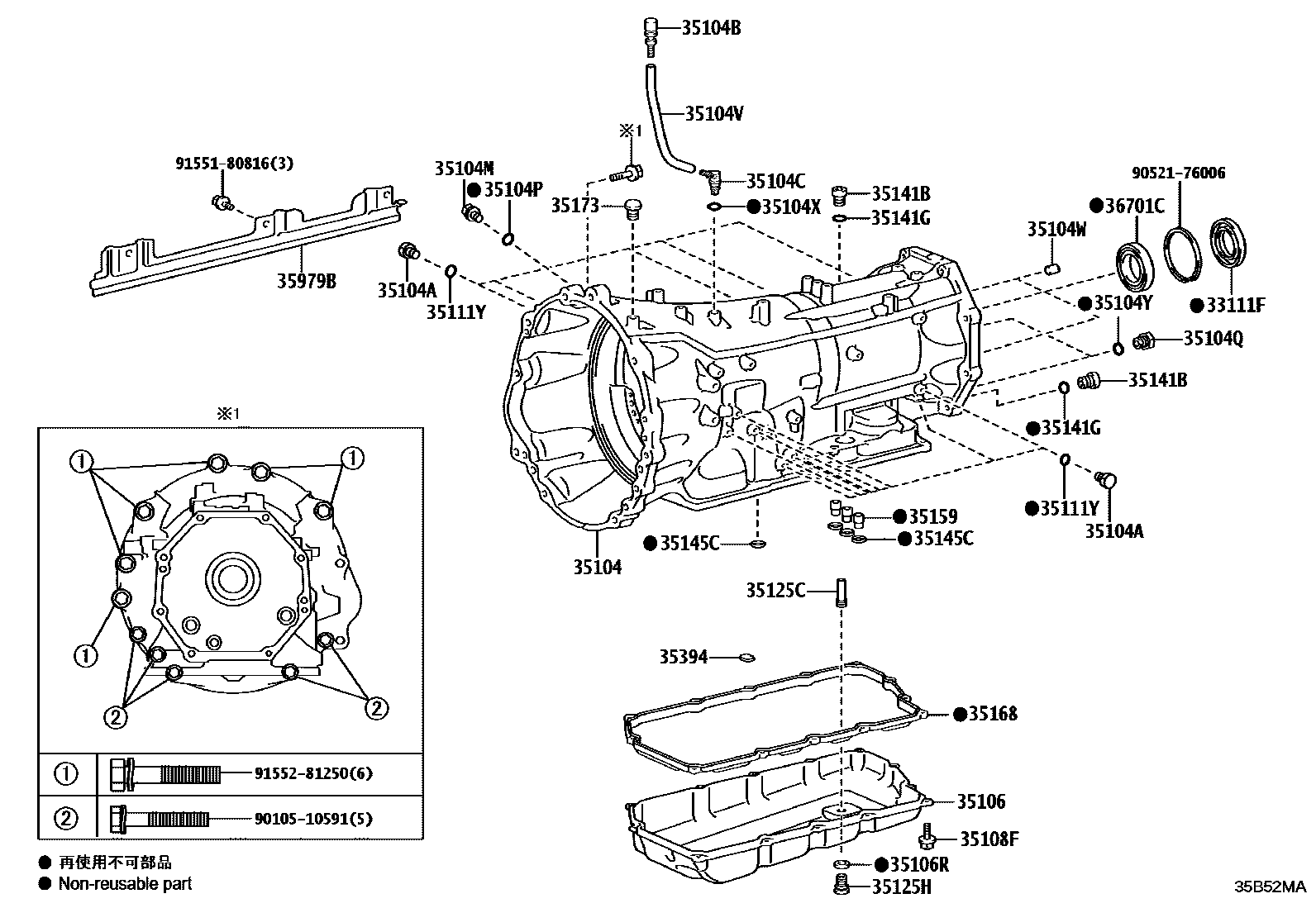

TRANSMISSION CASE & OIL PAN (ATM)

33111FSEAL, OIL(FOR TRANSMISSION CASE)

main90311-51015iVJA252202402

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-60360iVJA252202402

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08001iVJA252202402

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03211iVJA252202402

35104CPLUG, BREATHER, NO.2 (ATM)

main90930-03220iVJA252202402

35104MPLUG, REFILL(ATM)

main90341-18060iVJA252202402

35104PGASKET, REFILL PLUG(ATM)

main90430-18008iVJA252202402

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-18059iVJA252202402

35104VHOSE (FOR BREATHER PLUG)

main90447-11083iVJA252202402

35104WPIN, STRAIGHT (FOR TRANSAXLE CASE)

main90250-11003iVJA252202402

35104XRING, O (FOR BREATHER PLUG)

main90301-08015iVJA252202402

35104YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-15004iVJA252202402

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-60240iVJA252202402

35106RGASKET (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90430-12008iVJA252202402

35108FBOLT, W/WASHER

main90119-06A34iVJA252202402

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196iVJA252202402

35125CTUBE, TRANSMISSION OIL FILLER, NO.1

main35125-60240iVJA252202402

35125HPLUG, OVERFLOW(ATM)

main90341-12034iVJA252202402

35141BPLUG (FOR AUTOMATIC TRANSMISSION CASE)

main90341-14011iVJA252202402

35141GRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-11030iVJA252202402

35145CGASKET, TRANSAXLE CASE

main35145-11020iVJA252202402

35159GASKET, BRAKE DRUM

main35159-60040iVJA252202402

35168GASKET, AUTOMATIC TRANSMISSION OIL PAN

main35168-60040iVJA252202402

35173CAP, TRANSAXLE CASE NO.1

main17703-47010iVJA252202402

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011iVJA252202402

35979BINSULATOR, TRANSMISSION, RH

main35979-60030iVJA252202402

36701CBEARING, BALL

main90363-38014iVJA252202402

9010510591

main90105-10591

9052176006

main90521-76006

9155180816

main91551-80816

9155281250

main91552-81250

31 parts on this diagram · 1 diagram in section
