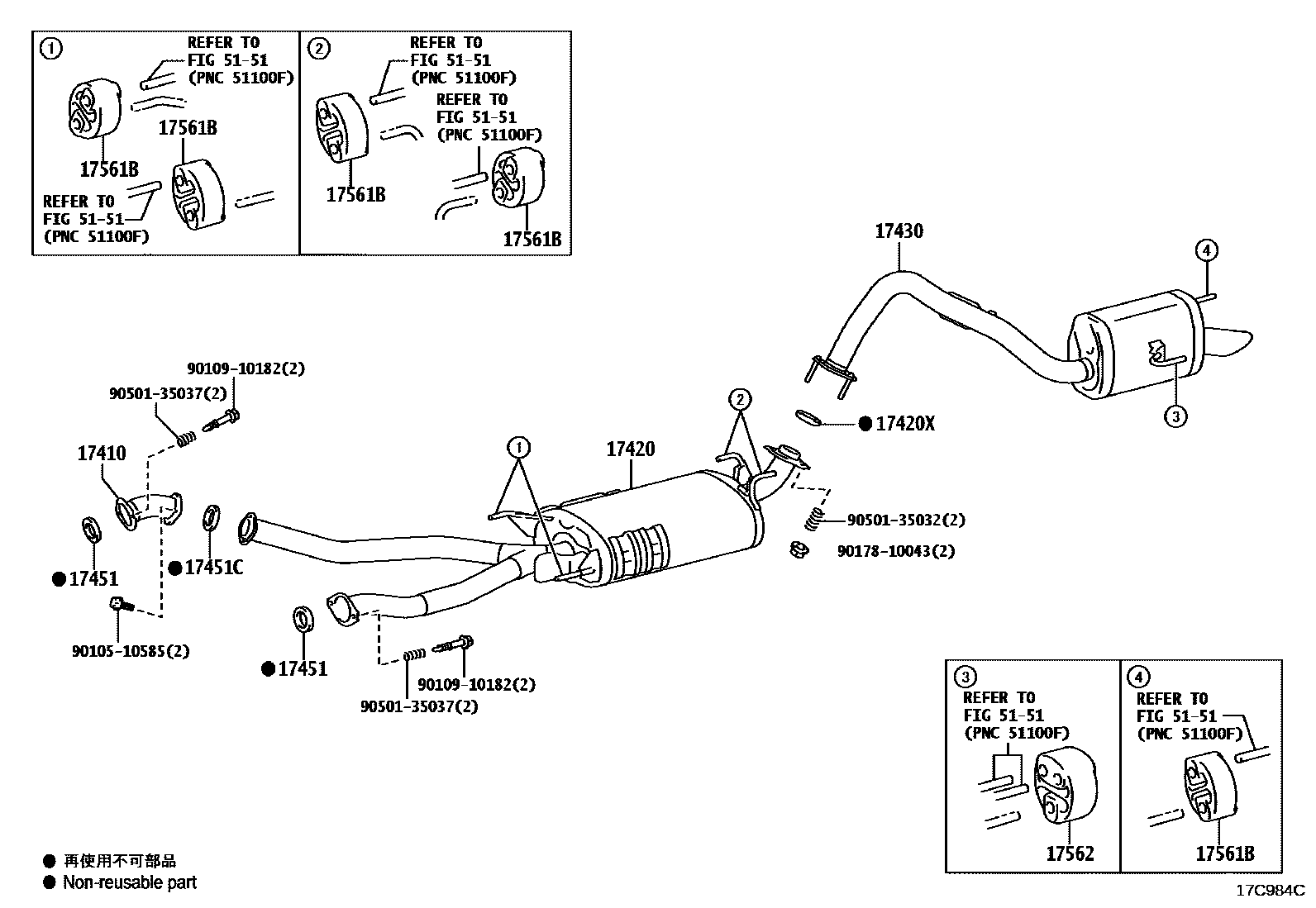

EXHAUST PIPE

17410PIPE ASSY, EXHAUST, FRONT

main17410-70410iV35AFTS..VJA252202402

17420PIPE ASSY, EXHAUST, CENTER

main17420-70480iV35AFTS..VJA252202402

17420XGASKET, EXHAUST PIPE, CENTER

main17451-25060iV35AFTS..VJA252202402

17430PIPE ASSY, EXHAUST, TAIL

main17430-70880iV35AFTS..VJA252202402

17451GASKET, EXHAUST PIPE

main17451-28041iV35AFTS..VJA252202402

17451CGASKET, EXHAUST PIPE, NO.3

main90917-06070iV35AFTS..VJA252202402

17561BSUPPORT, EXHAUST PIPE, NO.1

main17565-22040iV35AFTS..VJA252202402

17562SUPPORT, EXHAUST PIPE, NO.2

main17565-74320iV35AFTS..VJA252202402

5151

9010510585

main90105-10585

9010910182

main90109-10182

9017810043

main90178-10043

9050135032

main90501-35032

9050135037

main90501-35037

14 parts on this diagram · 1 diagram in section
