V-BELT

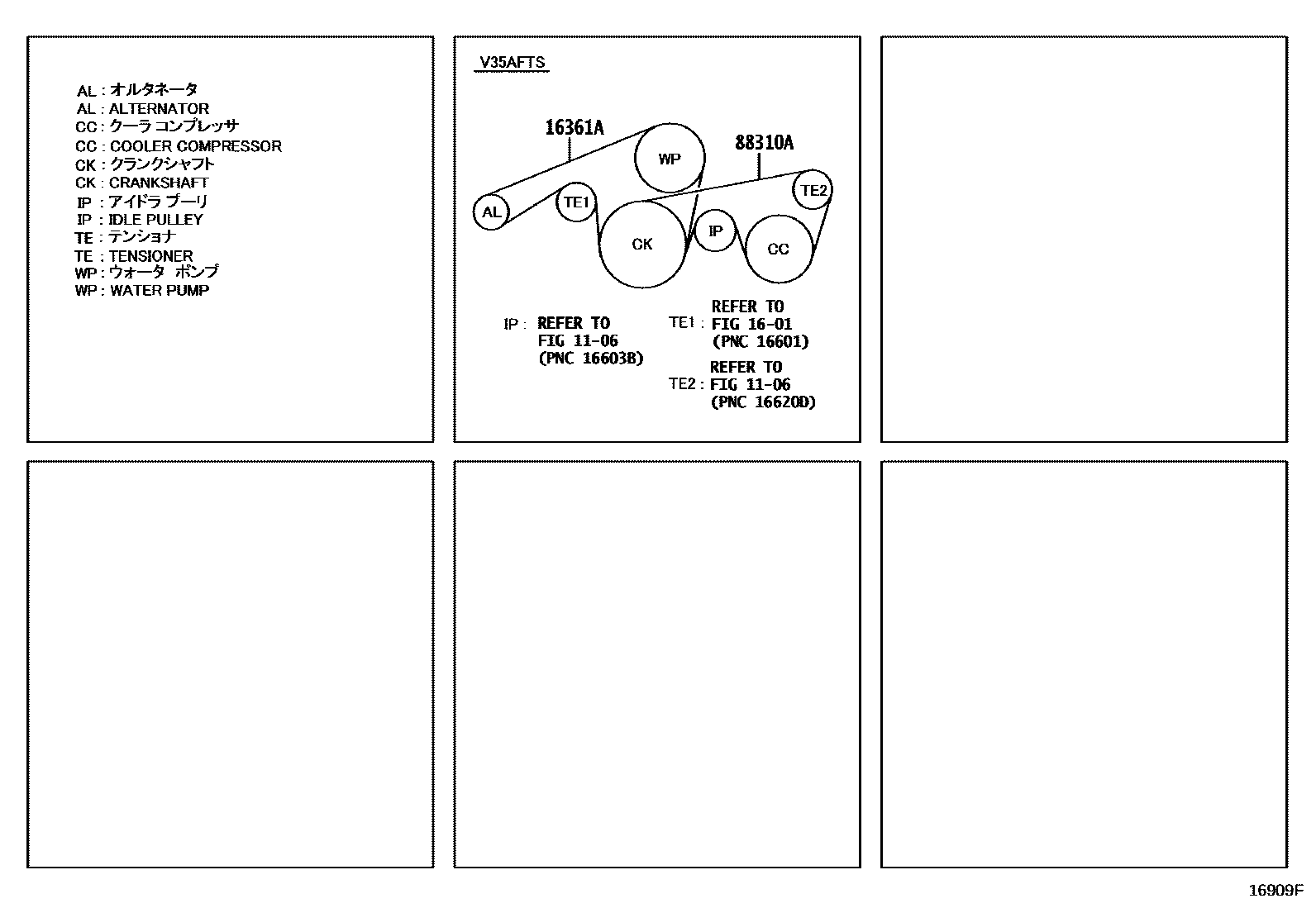

Parts diagram

1106

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02776i202402

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main90916-02750i202402

L=1148

3 parts on this diagram · 1 diagram in section
