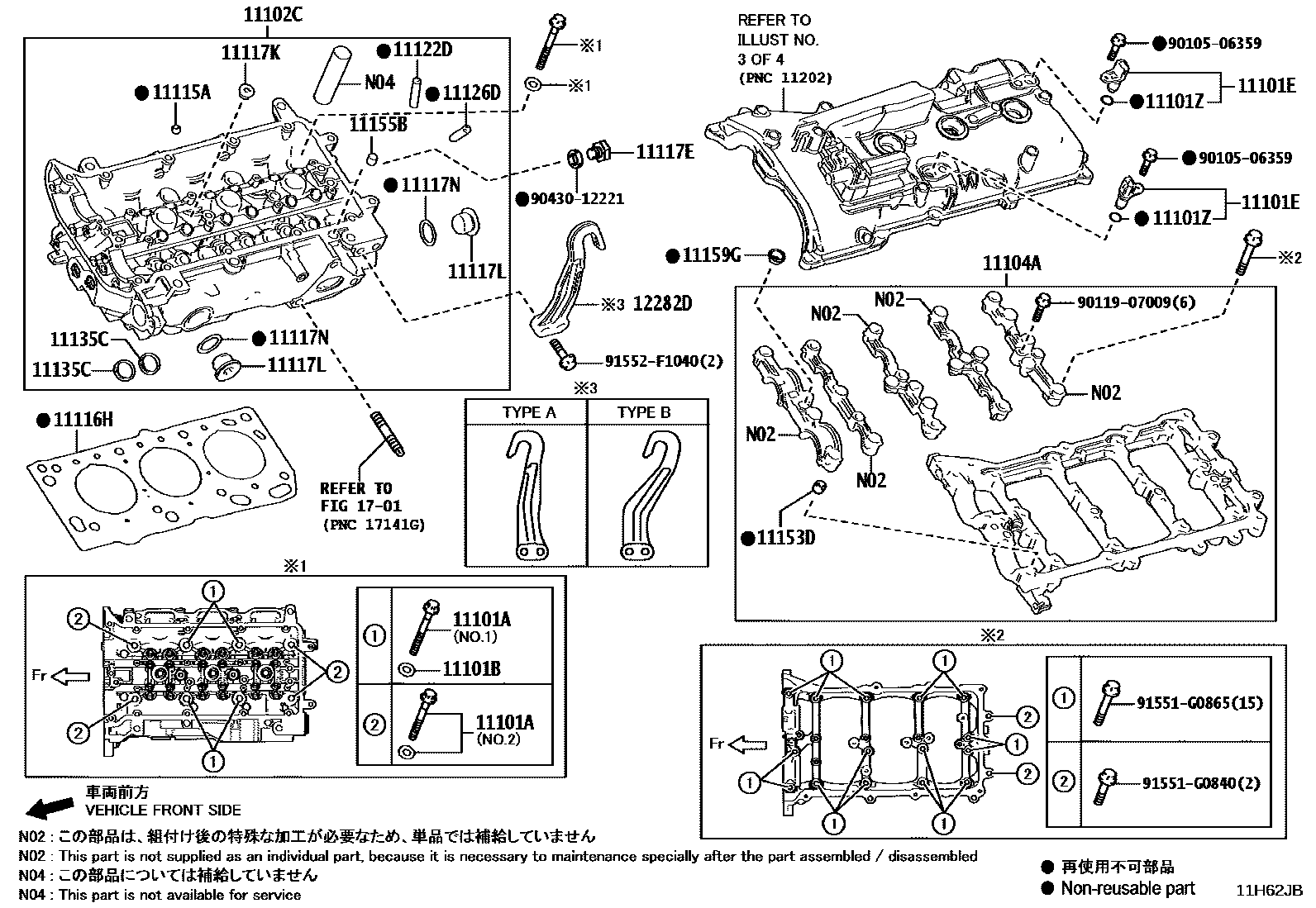

CYLINDER HEAD
11101ABOLT(FOR CYLINDER HEAD SET)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11101ESENSOR, CAM POSITION
11101ZO RING, CAM POSITION SENSOR
11102CHEAD SUB-ASSY, CYLINDER, LH
11104AHOUSING SUB-ASSY, CAMSHAFT, LH
11115APIN, RING
11116HGASKET, CYLINDER HEAD, LH
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
11117KPLUG, W/HEAD STRAIGHT SCREW, LH NO.1
11117LPLUG, W/HEAD STRAIGHT SCREW, LH NO.2
11117NGASKET(FOR CYLINDER HEAD SCREW PLUG NO.2)
11122DBUSH, INTAKE VALVE GUIDE, LH
STD
O/S 0.05
11126DBUSH, EXHAUST VALVE GUIDE, LH
STD
O/S 0.05
11135CSEAT, EXHAUST VALVE, LH
STD
O/S 0.03
11153DPIN, RING(FOR CAMSHAFT BEARING CAP SETTING LH)
11155BPIN, RING
11159GGASKET, CAMSHAFT BEARING CAP OIL HOLE, LH
12282DHANGER, ENGINE, NO.2
TYPE A
TYPE B
1701
9010506359
main90105-06359
9011907009
main90119-07009
9043012221
main90430-12221
91551G0840
main91551-G0840
91551G0865
main91551-G0865
91552F1040
main91552-F1040
26 parts on this diagram · 4 diagrams in section
