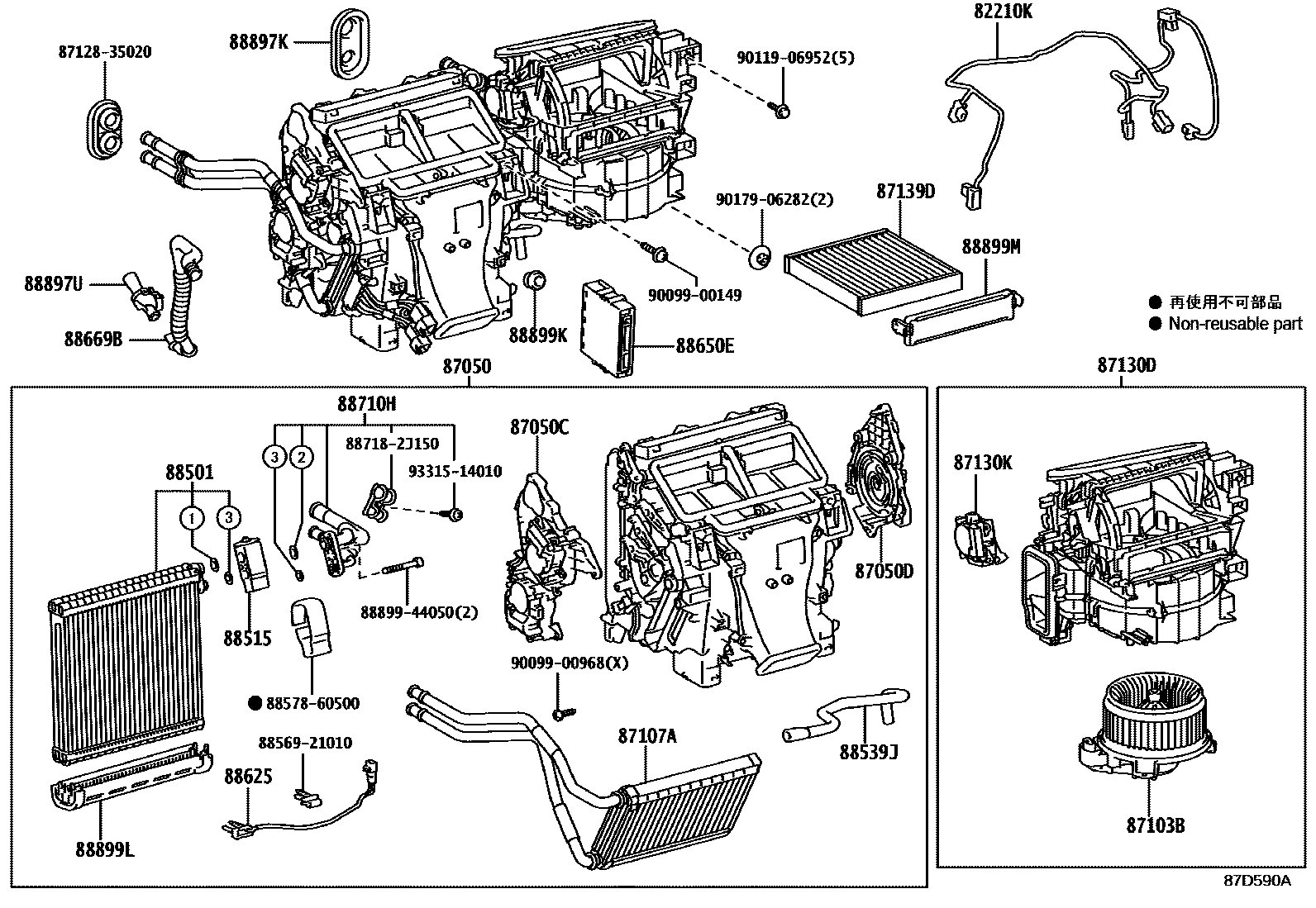

HEATING & AIR CONDITIONING - COOLER UNIT
87050RADIATOR ASSY, AIR CONDITIONER
AIR CONDITIONER-DUAL(AUTO)
AIR CONDITIONER-FRONT DUAL & REAR AUTO
AIR CONDITIONER-FRONT DUAL & REAR AUTO
87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1
87050DDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2
87103BMOTOR SUB-ASSY, BLOWER W/FAN
87107AUNIT SUB-ASSY, HEATER RADIATOR
87130KDAMPER SERVO SUB-ASSY, BLOWER, NO.1
87139DELEMENT, AIR REFINER
POLLEN FILTER
*DPF
POLLEN FILTER
88501EVAPORATOR SUB-ASSY, COOLER, NO.1
AIR CONDITIONER-DUAL(AUTO)
AIR CONDITIONER-FRONT DUAL & REAR AUTO
sub88501-60421
AIR CONDITIONER-FRONT DUAL & REAR AUTO
88515VALVE, COOLER EXPANSION
AIR CONDITIONER-FRONT DUAL & REAR AUTO
AIR CONDITIONER-DUAL(AUTO)
sub88515-60290
AIR CONDITIONER-FRONT DUAL & REAR AUTO
88539JHOSE, DRAIN COOLER
88625THERMISTOR, COOLER, NO.1
88650EAMPLIFIER ASSY, AIR CONDITIONER, NO.1
AIR CONDITIONER-DUAL(AUTO)
AIR CONDITIONER-DUAL(AUTO)
AIR CONDITIONER-FRONT DUAL & REAR AUTO
sub88650-60S21
AIR CONDITIONER-FRONT DUAL & REAR AUTO
AIR CONDITIONER-FRONT DUAL & REAR AUTO
AIR CONDITIONER-FRONT DUAL & REAR AUTO
COSTA RICA SPEC
AIR CONDITIONER-FRONT DUAL & REAR AUTO
AIR CONDITIONER-FRONT DUAL & REAR AUTO
88669BHOSE, COOLER AIR
88710HTUBE & ACCESSORY ASSY, AIR CONDITIONER
88897KGROMMET, (FOR COOLER PIPE)
88897UPIPE, ASPIRATOR
88899KPLATE, COVER
88899LPARTS, COOLING UNIT
AIR CONDITIONER-FRONT DUAL & REAR AUTO
AIR CONDITIONER-DUAL(AUTO)
88899MPLATE, COVER(FOR AIR FILTER)
8712835020GROMMET, HEATER
main87128-35020
8856921010CLAMP (FOR COOLER RELAY)
main88569-21010
8857860500PAKING, COOLER AIR DUCT
main88578-60500
887182J150PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-2J150
8889944050COVER, EVAPORATOR
main88899-44050
9009900149
main90099-00149
9009900968
main90099-00968
9011906952
main90119-06952
9017906282
main90179-06282
9331514010
main93315-14010
31 parts on this diagram · 6 diagrams in section
