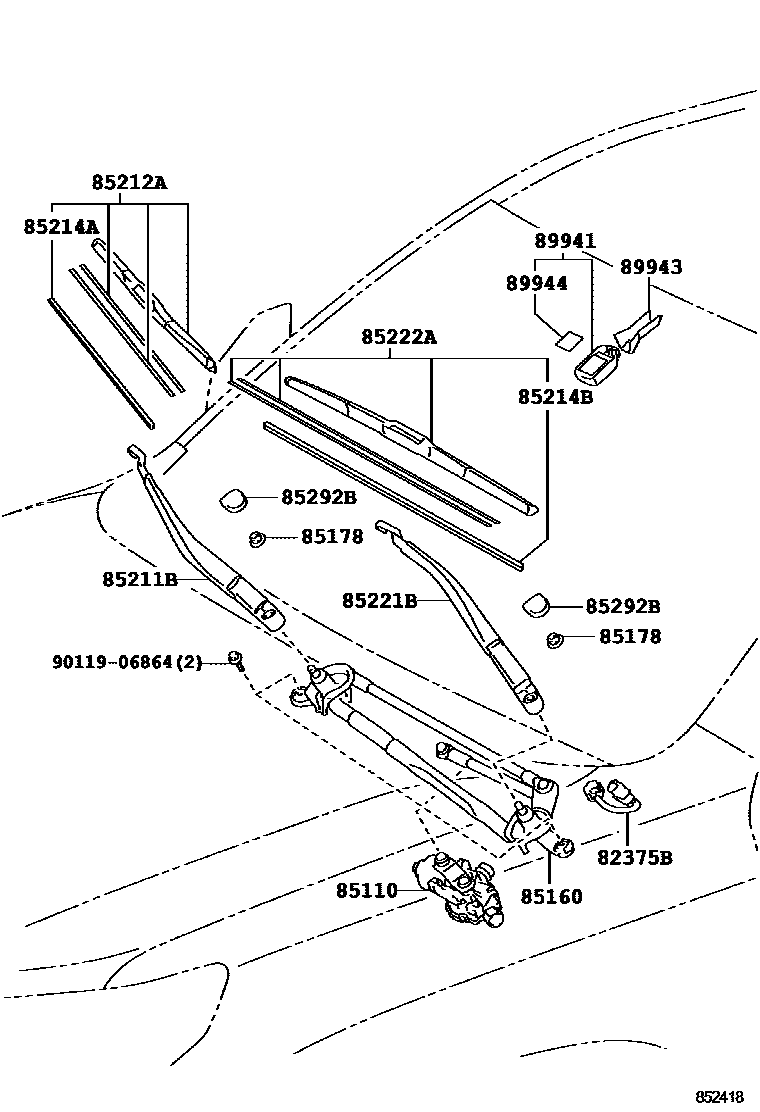

WINDSHIELD WIPER

82375BWIRE, WIPER MOTOR

main82375-60010iURJ150¥1,000200911-201908

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-60430iURJ150200911-202008

main85110-60540iURJ150202008

85160LINK ASSY, WINDSHIELD WIPER

main85150-60360iURJ150200911-202008

main85150-60560iURJ150202008

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-10006iURJ150¥80200911-201908

85211BARM, FRONT WIPER, RH

main85211-60300iURJ150¥5,100200911-201408

main85211-60310iURJ150201408-201908

85212ABLADE, FR WIPER, RH

main85212-53081iURJ150¥2,640200911-201408

main85212-60210iURJ150¥2,640201408-201908

85214ARUBBER, WIPER, RH

main85214-53090iURJ150¥800200911-201408

main85214-60120iURJ150¥800201408-201908

85214BRUBBER, WIPER, LH

main85214-52110iURJ150¥900201408-201908

main85214-68020iURJ150¥900200911-201408

sub85214-52110¥900

85221BARM, FRONT WIPER, LH

main85221-60330iURJ150¥3,370200911-201908

85222ABLADE, FR WIPER, LH

main85222-48130iURJ150¥4,720200911-201408

sub85222-60260¥4,290

main85222-60260iURJ150¥4,290201408-201908

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010iURJ150¥250200911-201908

89941SENSOR, RAIN

main89941-30020iURJ150¥19,900200911-201108

main89941-48072iURJ150¥16,600201112-201308

main89941-48072iURJ150¥16,600201308-201908

TOURING PACKAGE

main89941-52010iURJ150¥12,500201908

main89941-60130iURJ150201108-201112

sub89941-48072¥16,600

89943COVER, RAIN SENSOR

main89943-33050iURJ150¥1,400200911-201308

main89943-33050iURJ150¥1,400201308-201908

TOURING PACKAGE

89944TAPE, RAIN SENSOR

main89944-42010iURJ150..G¥1,490201308-201908

TOURING PACKAGE

main89944-42010iURJ150¥1,490200911-201308

9011906864

main90119-06864¥80

15 parts on this diagram · 1 diagram in section
