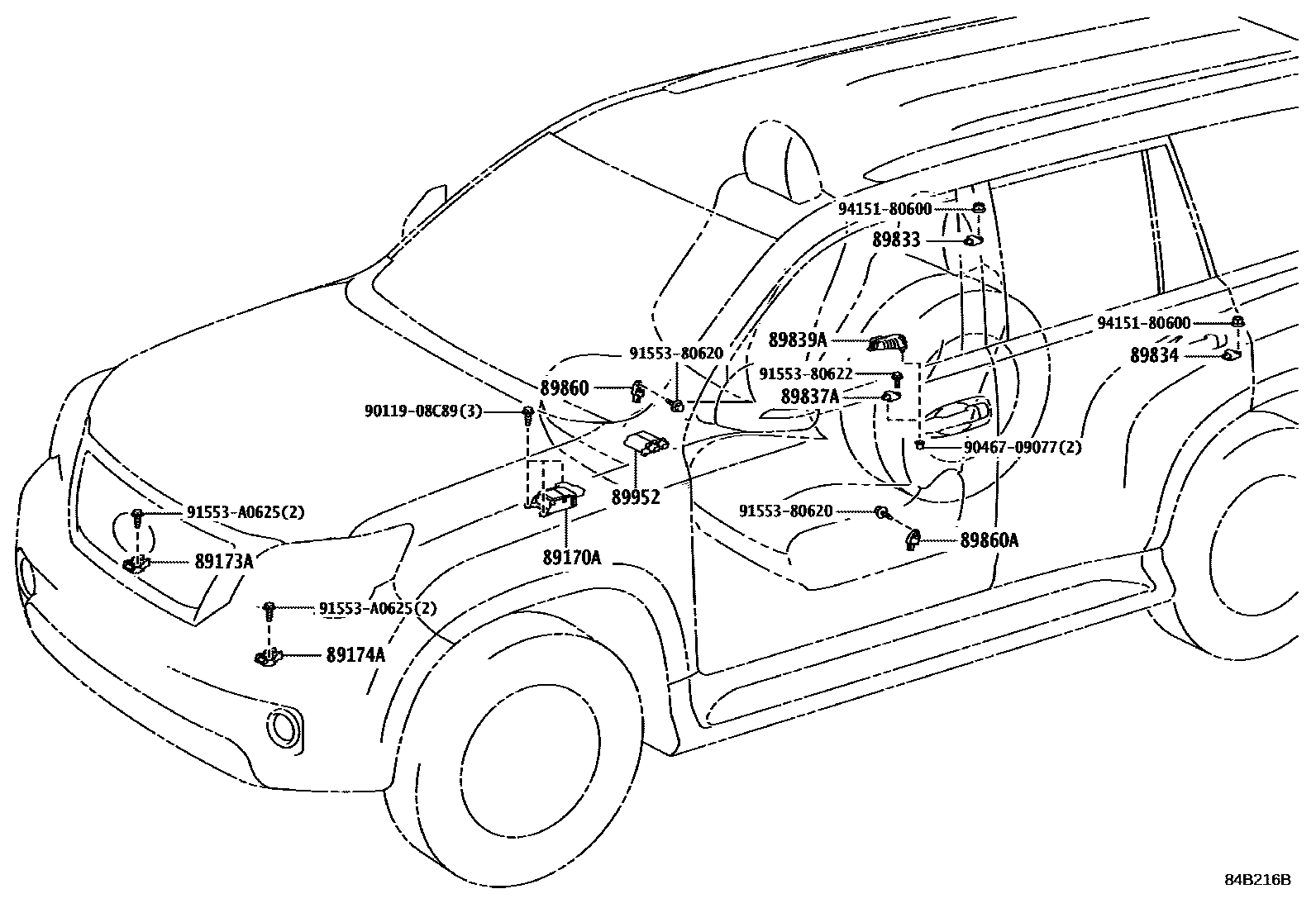

AIR BAG

89170ACOMPUTER ASSY, AIRBAG

main89170-60590i201508-201908

main89170-60630i200911-201007

main89170-60631i201008-201206

main89170-60A30i201206-201308

main89170-60A60i201308-201508

main89170-60F30i201908

main89170-60620i200911-201007

2 SEAT PACKAGE

main89170-60621i201008-201206

2 SEAT PACKAGE

main89170-60A20i201206-201308

2 SEAT PACKAGE

main89170-60F40i202008-202108

COSTA RICA SPEC&MEMORY PACK & OFF ROAD PACKAGE&AUDIO(OVERSEAS MARKET)-LEXUS DISPLAY AUDIO & DVD & 9SPEAKER&BACK MONITOR-MULTI-TELLAIN MONITOR(EXCEPT USA)

89173ASENSOR, AIRBAG, FRONT RH

main89173-39455i200911-201308

89174ASENSOR, AIRBAG, FRONT LH

main89173-39455i200911-201308

89833SENSOR, AIRBAG, REAR RH

main89831-75020i201908

89834SENSOR, AIRBAG, REAR LH

main89831-75020i200911-201308

89837ASENSOR, REAR FLOOR SIDE AIRBAG

main89837-60020i200911-201308

89839ACOVER, REAR FLOOR SIDE AIRBAG SENSOR

main89839-60010i200911-201308

89860SENSOR ASSY, SIDE AIRBAG, RH

main89831-60040i200911-201308

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89831-60040i200911-201308

89952COMPUTER, OCCUPANT DETECTION

main89952-47021i200911-201308

main89952-47040i201308-201908

9011908C89

main90119-08C89

9046709077

main90467-09077

9155380620

main91553-80620

9155380622

main91553-80622

91553A0625

main91553-A0625

9415180600

main94151-80600

16 parts on this diagram · 2 diagrams in section
