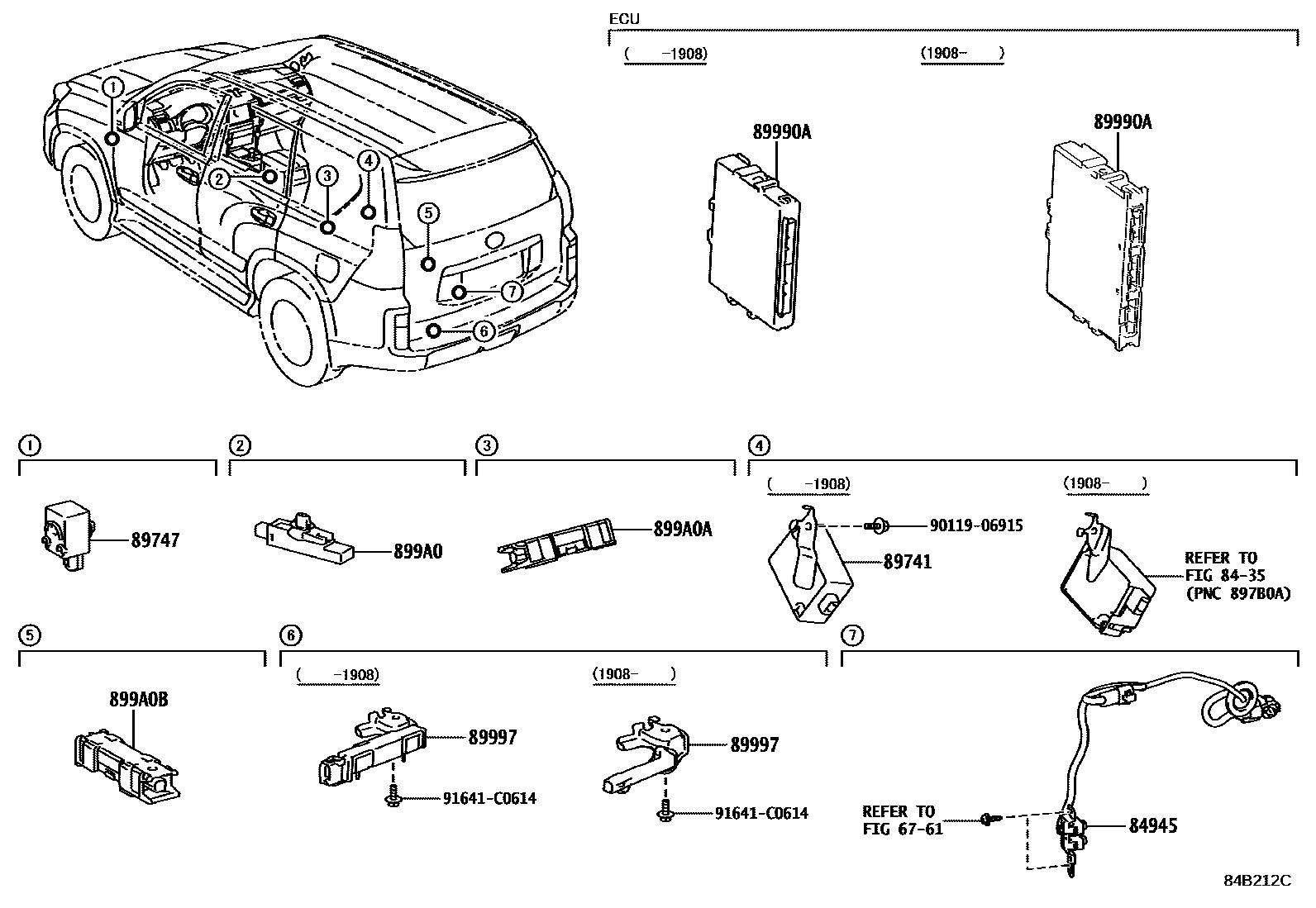

WIRELESS DOOR LOCK

6761

8435

84945SWITCH, LUGGAGE ELECTRICAL KEY

main84905-60010iURJ150200911-201908

89741RECEIVER, DOOR CONTROL

main89740-60080iURJ150200911-201608

main89740-60081iURJ150201608-201905

sub89740-60082

main89740-60082iURJ150201906-201908

main89740-60170iURJ150201106-201108

sub89740-60171

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040iURJ150200911-201908

89990ACOMPUTER ASSY, SMART KEY

main89990-60210iURJ150200911-201101

sub89990-60211

main89990-60211iURJ150201102-201108

sub89990-60212

main89990-60212iURJ150201108-201206

sub89990-60570

main89990-60213iURJ150201206-201308

sub89990-60580

main89990-60213iURJ150201308-201501

P/N LABEL=8999060213

sub89990-60580

main89990-60214iURJ150201501-201507

P/N LABEL=8999060214

sub89990-60215

main89990-60215iURJ150201508-201608

sub89990-60590

main89990-60400iURJ150201608-201612

sub89990-60401

main89990-60401iURJ150201701-201908

main89990-60730iURJ150201908-202108

sub89990-60731

main89990-60730iURJ150..Z202108-202201

COSTA RICA SPEC

sub89990-60731

main89990-60A00iURJ150..Z202201-202202

COSTA RICA SPEC

sub89990-60A01

main89990-60A01iURJ150..Z202203

COSTA RICA SPEC

main899H0-60010iURJ150202108-202201

COSTA RICA SPEC

main899H0-60080iURJ150..Z202201-202202

COSTA RICA SPEC

sub899H0-60081

main899H0-60081iURJ150202203

main899H0-60081iURJ150..Z202203-202311

COSTA RICA SPEC

89997ANTENNA, ELECTRICAL KEY

main89997-60060iURJ150200911-201908

main89997-60110iURJ150201908

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-60010iURJ150200911-201908

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-60020iURJ150200911-201908

899A0BANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3

main899A0-60020iURJ150200911-201908

9011906915

main90119-06915

91641C0614

main91641-C0614

12 parts on this diagram · 1 diagram in section
