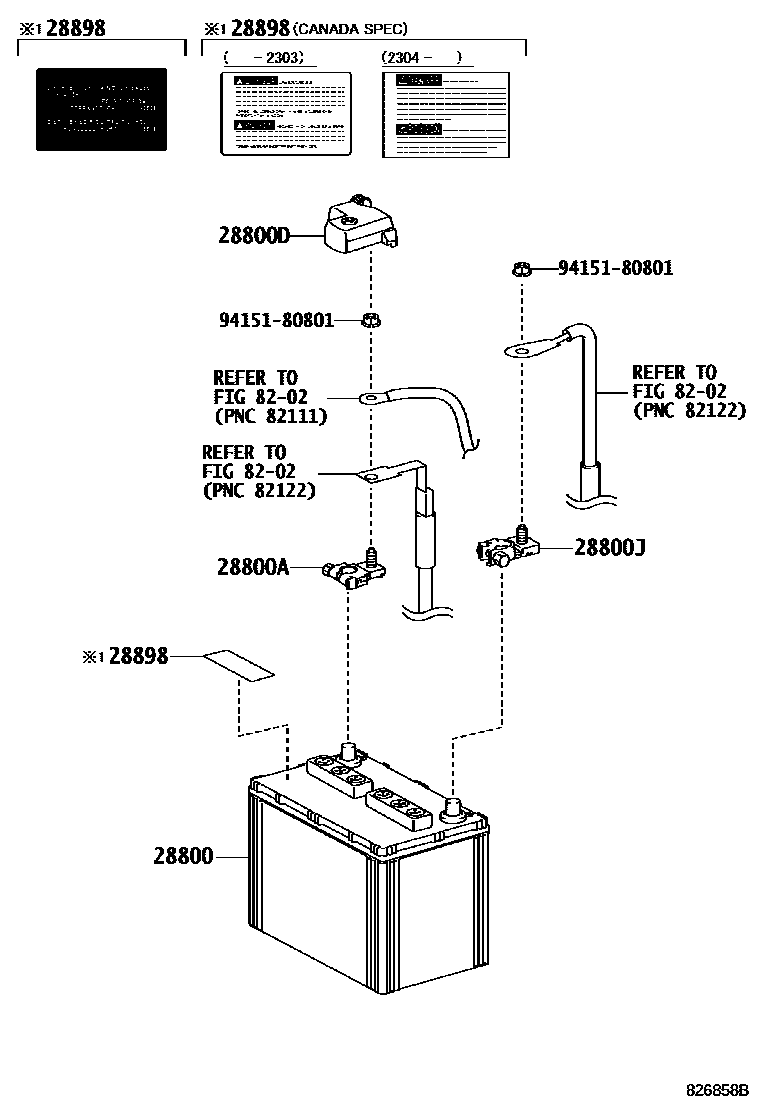

BATTERY & BATTERY CABLE

28800BATTERY

main28800-54020i1URFE..URJ150200911-202302

80D26L

sub28800-67102

main28800-74143i1URFE..URJ150202303

80D26L

28800ATERMINAL, BATTERY POSITIVE

main90982-05069i1URFE..URJ150200911-201908

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-60270i1URFE..URJ150200911-201908

28800JTERMINAL, BATTERY NEGATIVE

main90982-06059i1URFE..URJ150200911-201908

28898PLATE, BATTERY

main28898-20010i1URFE..URJ150200911-201802

8202

9415180801

main94151-80801

7 parts on this diagram · 1 diagram in section
