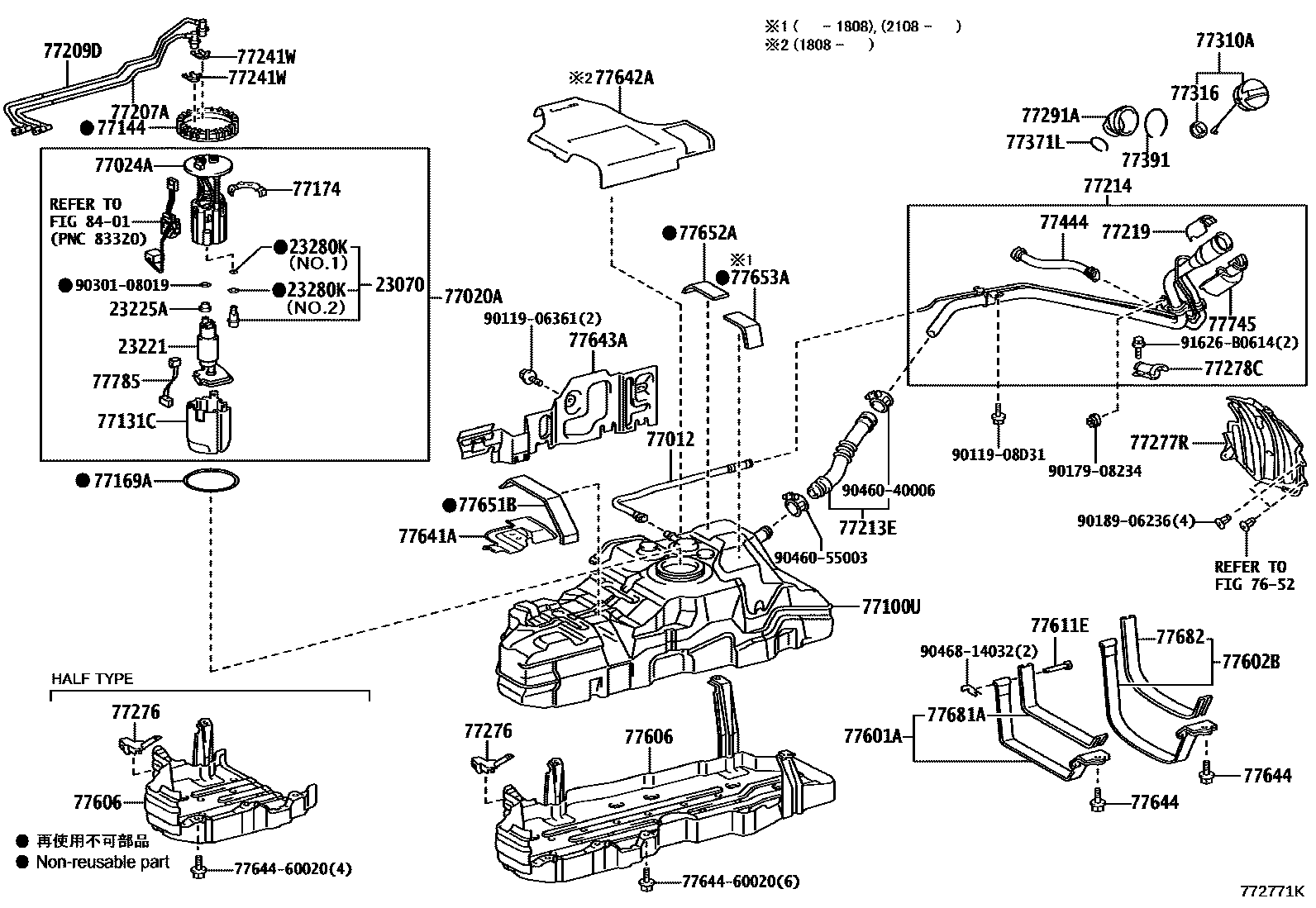

FUEL TANK & TUBE
23070VALVE ASSY, FUEL MAIN
23221PUMP, FUEL
23225ASPACER, FUEL PUMP
23280KRING, O(FOR FUEL PRESSURE REGULATOR)
NO.1
NO.2
7652
77012TUBE SUB-ASSY, FUEL TANK BREATHER
77024APLATE SUB-ASSY, FUEL SUCTION
77100UTANK SUB-ASSY, FUEL
77131CSUB-TANK, FUEL, NO.1
77144RETAINER, FUEL PUMP GAUGE
77174SUPPORT, FUEL SUCTION, NO.1
77207ATUBE SUB-ASSY, FUEL RETURN
77209DTUBE SUB-ASSY, FUEL TANK MAIN
77213EHOSE, FUEL TANK TO FILLER PIPE
77219COVER, FUEL TANK FILLER PIPE
77276PROTECTOR, FUEL HOSE
77277RPROTECTOR, FUEL TANK FILLER PIPE
77278CPROTECTOR, FUEL TANK FILLER PIPE, NO.2
77291ASHIELD, FUEL TANK FILLER PIPE
77310ACAP ASSY, FUEL TANK
77371LRING, FUEL TANK FILLER PIPE SHIELD
77391RING, FUEL INLET BOX
77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH
77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77611EPIN, FUEL TANK BAND
77641APROTECTOR, FUEL TANK, NO.1
77644BOLT, FUEL TANK
77651BCUSHION, FUEL TANK
77652ACUSHION, FUEL TANK, NO.2
77653ACUSHION, FUEL TANK, NO.3
77681ASEAT, FUEL TANK BAND
77682SEAT, FUEL TANK BAND, LH
77745FILTER, CHARCOAL CANISTER, NO.1
8401
7764460020BOLT, FUEL TANK
main77644-60020
9011906361
main90119-06361
9011908D31
main90119-08D31
9017908234
main90179-08234
9018906236
main90189-06236
9030108019
main90301-08019
9046040006
main90460-40006
9046055003
main90460-55003
9046814032
main90468-14032
91626B0614
main91626-B0614
54 parts on this diagram · 4 diagrams in section
