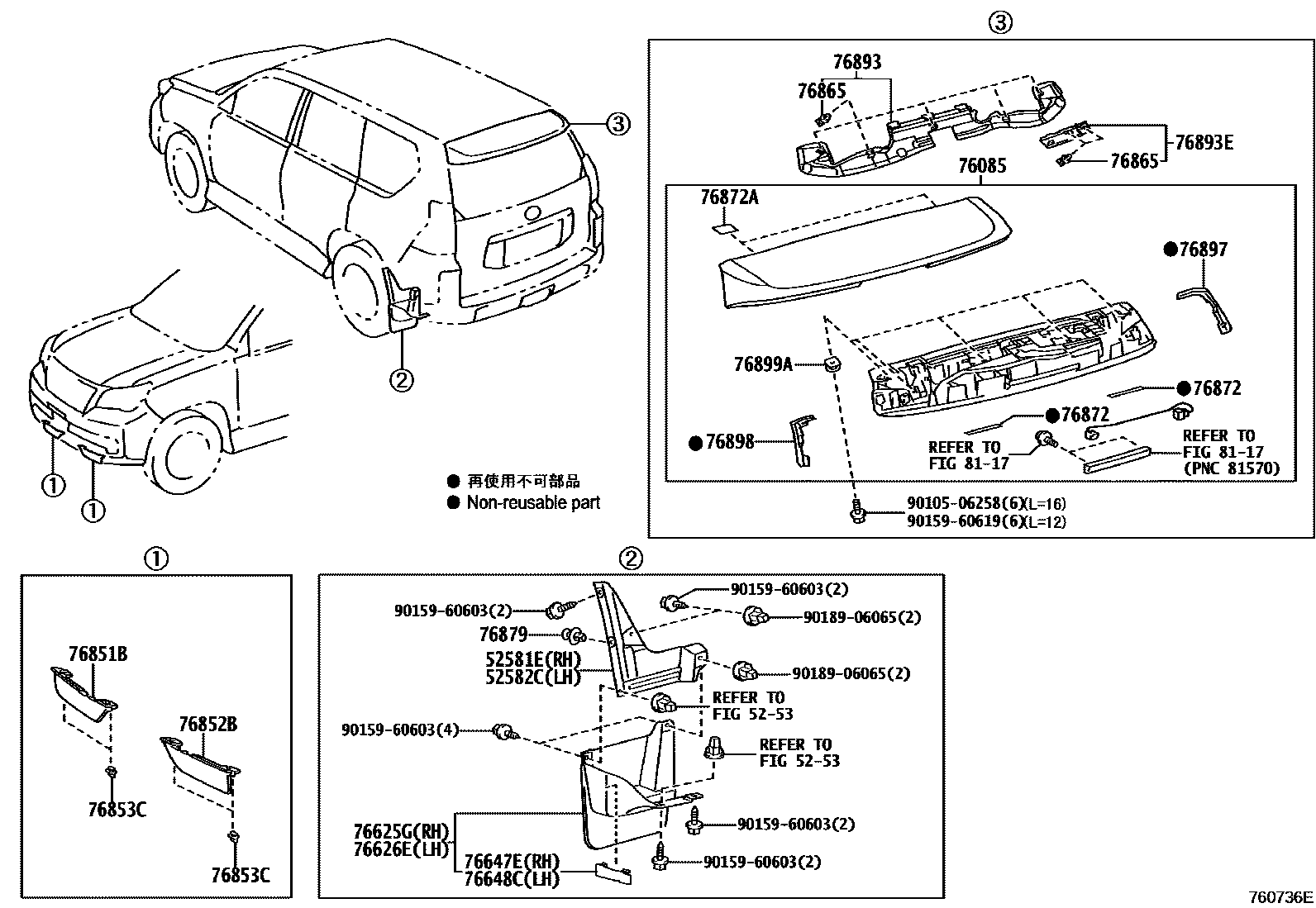

SPOILER & SIDE MUDGUARD
5253
52581EPROTECTOR, REAR BUMPER, RH
52582CPROTECTOR, REAR BUMPER, LH
76085SPOILER SUB-ASSY, REAR
WHITE PEARL CS.,077
SILVER M.M.,1G1
SPARKLE SOLID GRAY M.M.,1H3
BLACK,202
STARLIGHT BLACK GF.,217
GARNET RED MC.,3S0
SLEEK ECRU ME.,4U7
FIRE AGATE M.M.,4V3
DEEP PERIDOT MC.,6V6
WHITE PEARL CS.,077
SILVER M.M.,1G1
SPARKLE SOLID GRAY M.M.,1H3
BLACK,202
STARLIGHT BLACK GF.,217
GARNET RED MC.,3S0
SLEEK ECRU ME.,4U7
FIRE AGATE M.M.,4V3
WHITE PEARL CS.,077
SILVER M.M.,1G1
SPARKLE SOLID GRAY M.M.,1H3
BLACK,202
STARLIGHT BLACK GF.,217
GARNET RED MC.,3S0
SLEEK ECRU ME.,4U7
FIRE AGATE M.M.,4V3
WHITE PEARL CS.,077
SONIC QUARTZ,085
SILVER M.M.,1G1
SPARKLE SOLID GRAY M.M.,1H3
MERCURY GRAY MC.,1H9
PLATINUM SILVER ME.,1J4
SONIC TITANIUM,1J7
BLACK,077 ,085 ,202 ,6X4
STARLIGHT BLACK GF.,217
GRAPHITE BLACK GF.,223
GARNET RED MC.,3S0
SLEEK ECRU ME.,4U7
FIRE AGATE M.M.,4V3
TERRANE KHAKI M.M.,6X4
DEEP BLUE MC.,8X5
76625GMUDGUARD, QUARTER PANEL, REAR RH
WHITE PEARL CS.,077
SILVER M.M.,1G1
SPARKLE SOLID GRAY M.M.,1H3
BLACK,202
STARLIGHT BLACK GF.,217
GARNET RED MC.,3S0
SLEEK ECRU ME.,4U7
FIRE AGATE M.M.,4V3
DEEP PERIDOT MC.,6V6
76626EMUDGUARD, QUARTER PANEL, REAR LH
WHITE PEARL CS.,077
SILVER M.M.,1G1
SPARKLE SOLID GRAY M.M.,1H3
BLACK,202
STARLIGHT BLACK GF.,217
GARNET RED MC.,3S0
SLEEK ECRU ME.,4U7
FIRE AGATE M.M.,4V3
DEEP PERIDOT MC.,6V6
76647ESUPPORT, REAR BODY MUDGUARD, NO.1 RH
76648CSUPPORT, REAR BODY MUDGUARD, LH
76851BSPOILER, FRONT, RH
76852BSPOILER, FRONT, LH
76853CRETAINER, FRONT SPOILER, NO.1
76865RETAINER, REAR SPOILER, NO.1
76872PROTECTOR, REAR SPOILER, NO.1
76872APROTECTOR, REAR SPOILER, NO.1
76879CLIP, REAR SPOILER, NO.1
76893COVER, REAR SPOILER, NO.1
76897PROTECTOR, REAR SPOILER, SIDE RH
76898PROTECTOR, REAR SPOILER, SIDE LH
8117
9010506258
main90105-06258
9015960603
main90159-60603
9015960619
main90159-60619
9018906065
main90189-06065
25 parts on this diagram · 2 diagrams in section
