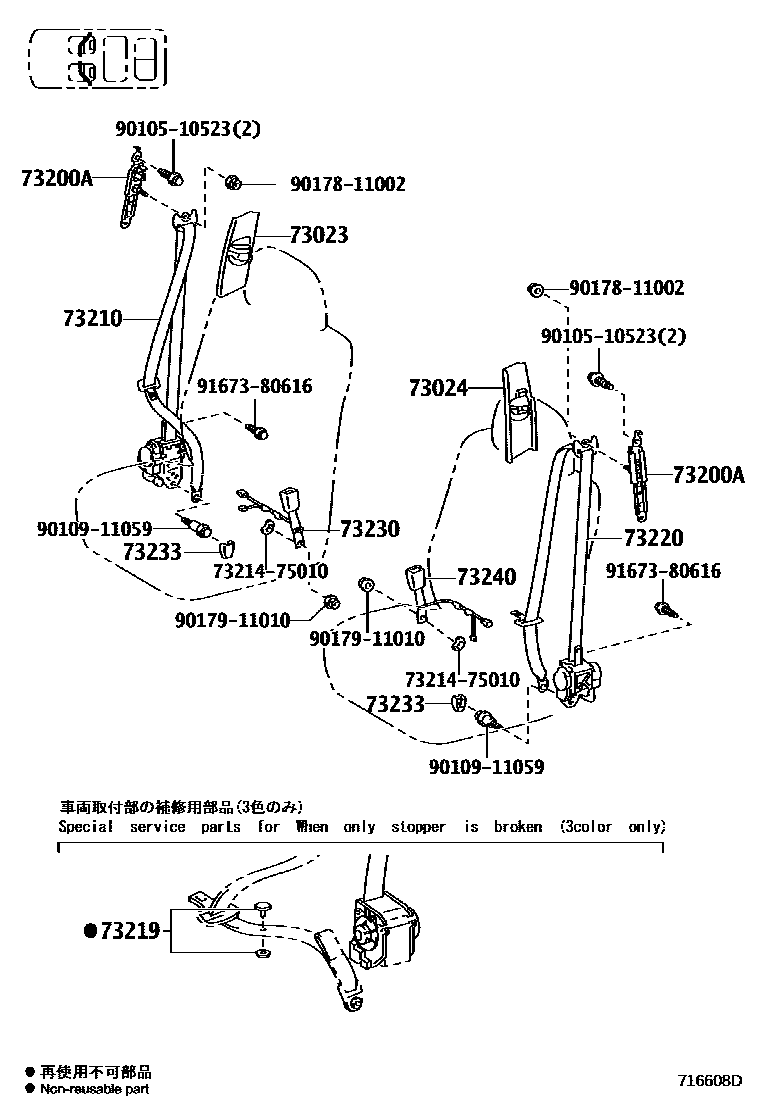

SEAT BELT

0001 1FRONT SEAT 0002 1REAR NO.1 SEAT 0003 1REAR NO.1 SEAT (2 SEAT PACKAG0004 1REAR NO.2 SEAT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-53020-A3iURJ150200911-201908

ECRU,TRIM0#,4#

main73023-53020-B0iURJ150200911-201908

LT.GRAY,TRIM2#

main73023-53020-C0iURJ150..G201908

BLACK,TRIM2#

main73023-53020-C0iURJ150..Z201908

BLACK,TRIM1#,2#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-53020-A3iURJ150200911-201908

ECRU,TRIM0#,4#

main73024-53020-B0iURJ150200911-201908

LT.GRAY,TRIM2#

main73024-53020-C0iURJ150..G201908

BLACK,TRIM2#

main73024-53020-C0iURJ150..Z201908

BLACK,TRIM1#,2#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-12070iURJ150201301-201908

main73200-53010iURJ150200911-201212

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-60800-A0iURJ150200911-201308

ECRU,TRIM0#

main73210-60800-A1iURJ150201308-201906

ECRU,TRIM0#

main73210-60800-A2iURJ150201906-201908

ECRU,TRIM0#

main73210-60800-C0iURJ150200911-201308

BLACK,TRIM2#

main73210-60800-C1iURJ150201308-201906

BLACK,TRIM2#

main73210-60800-C2iURJ150..Z201908

BLACK,TRIM2#

main73210-60800-C2iURJ150..Z201908

BLACK,TRIM1#,2#

main73210-60800-C3iURJ150201906-201908

BLACK,TRIM2#

main73210-60800-E0iURJ150200911-201308

SEPIA,TRIM4#

main73210-60800-E1iURJ150201308-201906

SEPIA,TRIM4#

main73210-60800-E2iURJ150201906-201908

SEPIA,TRIM4#

73219STOPPER, TONGUE PLATE

main73219-02010iURJ150200911-201908

BLACK

main73219-02020iURJ150200911-201908

GRAY

main73219-02030iURJ150200911-201908

BEIGE

main73219-50010iURJ150200911-201908

MELLOW WHITE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-60510-A0iURJ150200911-201308

ECRU,TRIM0#

main73220-60510-A1iURJ150201308-201906

ECRU,TRIM0#

main73220-60510-A2iURJ150201906-201908

ECRU,TRIM0#

main73220-60510-C0iURJ150200911-201308

BLACK,TRIM2#

main73220-60510-C1iURJ150201308-201906

BLACK,TRIM2#

main73220-60510-C2iURJ150..G201908

BLACK,TRIM2#

main73220-60510-C2iURJ150..Z201908

BLACK,TRIM1#,2#

main73220-60510-C3iURJ150201906-201908

BLACK,TRIM2#

main73220-60510-E0iURJ150200911-201308

SEPIA,TRIM4#

main73220-60510-E1iURJ150201308-201906

SEPIA,TRIM4#

main73220-60510-E2iURJ150201906-201908

SEPIA,TRIM4#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-60580-A0iURJ150200911-201908

ECRU,TRIM0#

main73230-60580-C0iURJ150..Z201908

BLACK,TRIM1#,2#

main73230-60580-C0iURJ150200911-201908

BLACK,TRIM2#

main73230-60580-E0iURJ150200911-201908

SEPIA,TRIM4#

73233COVER, LAP BELT OUTER ANCHOR

main73233-35010-C0iURJ150201005-201702

BLACK,TRIM2#

main73233-35010-C1iURJ150..Z201908

BLACK,TRIM0#,1#,2#,4#

main73233-35010-C1iURJ150..Z201908

BLACK,TRIM0#,2#,4#

main73233-35010-C1iURJ150201702-201908

BLACK,TRIM2#

main73233-35010-E0iURJ150201005-201908

SEPIA,TRIM0#,4#

main73233-60020-C0iURJ150200911-201004

BLACK,TRIM2#

sub73233-60020

sub73233-35010

main73233-60020-E3iURJ150200911-201004

SEPIA,TRIM0#,4#

sub73233-60020

sub73233-35010

73240BELT ASSY, FRONT SEAT INNER, LH

main73240-60460-A0iURJ150200911-201908

ECRU,TRIM0#

main73240-60460-C0iURJ150..G201908

BLACK,TRIM1#,2#

main73240-60460-C0iURJ150200911-201908

BLACK,TRIM2#

main73240-60460-E0iURJ150200911-201908

SEPIA,TRIM4#

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

9010510523

main90105-10523

9010911059

main90109-11059

9017811002

main90178-11002

9017911010

main90179-11010

9167380616

main91673-80616

15 parts on this diagram · 4 diagrams in section
