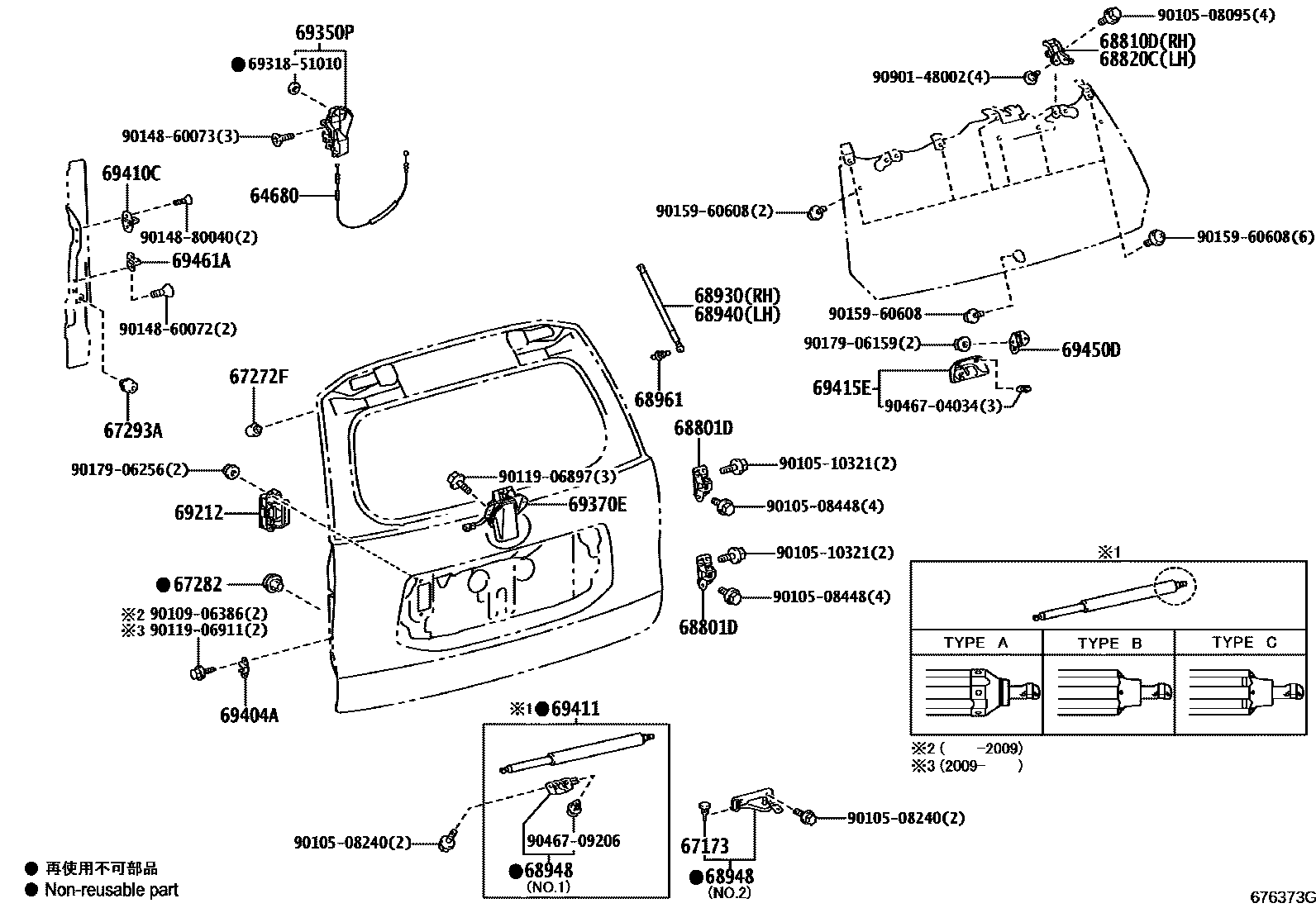

BACK DOOR LOCK & HINGE

64680CABLE ASSY, BACK DOOR LOCK CONTROL

main64680-60010iURJ150200911-201908

67173CUSHION, BACK DOOR

main90541-03005iURJ150200911-201908

67272FCUSHION, BACK DOOR STOPPER, NO.2

main67272-60050iURJ150200911-201908

67282STOPPER, BACK DOOR, NO.1

main67282-46010iURJ150200911-201908

67293ACUSHION, BACK DOOR STOPPER

main67293-60040iURJ150200911-201908

68801DHINGE SUB-ASSY, BACK DOOR, RH

main68801-60050iURJ150200911-201403

sub68801-60051

main68801-60051iURJ150201404-201511

sub68801-60052

main68801-60052iURJ150201512-201908

68810DHINGE ASSY, BACK DOOR, RH

main68810-60050iURJ150200911-201203

sub68810-60051

main68810-60051iURJ150201204-201908

68820CHINGE ASSY, BACK DOOR, LH

main68820-60010iURJ150200911-201203

sub68820-60011

main68820-60011iURJ150201204-201908

68930STAY ASSY, BACK WINDOW, RH

main68930-0W020iURJ150200911-201908

68940STAY ASSY, BACK WINDOW, LH

main68940-0W020iURJ150200911-201908

68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH

main68948-60010iURJ150200911-201908

NO.1:REFER ILLUST.

main68948-60020iURJ150200911-201908

NO.2:REFER ILLUST.

68961BOLT, BACK DOOR STAY

main68961-20140iURJ150200911-201908

69212HANDLE, BACK DOOR OUTSIDE, LH

main69190-60010iURJ150200911-201207

sub69190-60011

main69190-60011iURJ150201208-201502

sub69190-60012

main69190-60012iURJ150201503-201908

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69110-60230iURJ150200911-201204

sub69110-60231

main69110-60231iURJ150201205-201302

sub69110-60232

main69110-60232iURJ150201303-201511

sub69110-60233

main69110-60233iURJ150201512-201908

69370ELOCK ASSY, BACK WINDOW

main69370-60020iURJ150200911-201908

69404ASTOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, LH

main69403-60011iURJ150200911-201506

main69403-60020iURJ150201507-202008

sub69403-60021

sub90119-06911

main69403-60021iURJ150202008

69410CPLATE ASSY, BACK DOOR LOCK STRIKER

main69410-60020iURJ150200911-201908

69411CHECK, BACK DOOR

main68650-09010iURJ150200911-201308

NO.2

main68650-09010iURJ150201308-201504

TYPE A:REFER ILLUST.

main68650-09020iURJ150201908

NO.2

main68650-09020iURJ150201504-201908

TYPE C:REFER ILLUST.

main68650-0W010iURJ150200911-200912

NO.1

sub68650-0W011

main68650-0W011iURJ150200912-201205

NO.1

sub68650-0W012

main68650-0W012iURJ150201308-201504

TYPE B:REFER ILLUST.

sub68650-09010

main68650-0W012iURJ150201206-201308

NO.1

sub68650-09010

69415ECOVER, BACK DOOR LOCK STRIKER

main69415-60010iURJ150200911-201908

69450DSTRIKER ASSY, BACK WINDOW LOCK

main69450-60050iURJ150200911-201908

69461ASTOPPER, BACK DOOR SIDE MALE

main69461-60010iURJ150200911-201908

6931851010SEAL, FRONT DOOR LOCK HOLE, LH

main69318-51010

9010508095

main90105-08095

9010508240

main90105-08240

9010508448

main90105-08448

9010510321

main90105-10321

9010906386

main90109-06386

9011906897

main90119-06897

9011906911

main90119-06911

9014860072

main90148-60072

9014860073

main90148-60073

9014880040

main90148-80040

9015960608

main90159-60608

9017906159

main90179-06159

9017906256

main90179-06256

9046704034

main90467-04034

9046709206

main90467-09206

9090148002

main90901-48002

38 parts on this diagram · 1 diagram in section
