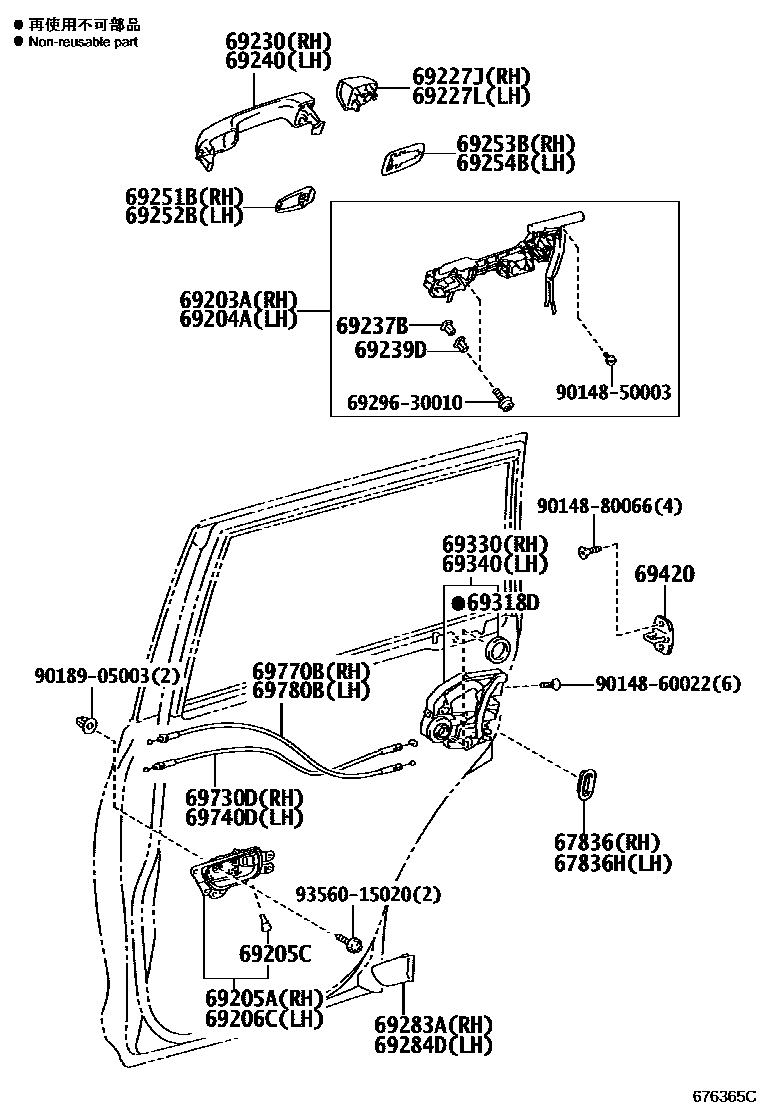

REAR DOOR LOCK & HANDLE
67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH
67836HCOVER, REAR DOOR LOCK CHILD PROTECTION, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
WHITE PEARL CS.,077
SONIC QUARTZ,085
SILVER M.M.,1G1
SPARKLE SOLID GRAY M.M.,1H3
MERCURY GRAY MC.,1H9
PLATINUM SILVER ME.,1J4
SONIC TITANIUM,1J7
BLACK,202
STARLIGHT BLACK GF.,217
GRAPHITE BLACK GF.,223
GARNET RED MC.,3S0
SLEEK ECRU ME.,4U7
FIRE AGATE M.M.,4V3
DEEP PERIDOT MC.,6V6
TERRANE KHAKI M.M.,6X4
DEEP BLUE MC.,8X5
69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH
WHITE PEARL CS.,077
SONIC QUARTZ,085
SILVER M.M.,1G1
SPARKLE SOLID GRAY M.M.,1H3
MERCURY GRAY MC.,1H9
PLATINUM SILVER ME.,1J4
SONIC TITANIUM,1J7
BLACK,202
STARLIGHT BLACK GF.,217
GRAPHITE BLACK GF.,223
GARNET RED MC.,3S0
SLEEK ECRU ME.,4U7
FIRE AGATE M.M.,4V3
DEEP PERIDOT MC.,6V6
TERRANE KHAKI M.M.,6X4
DEEP BLUE MC.,8X5
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
WHITE PEARL CS.,077
SONIC QUARTZ,085
SILVER M.M.,1G1
SPARKLE SOLID GRAY M.M.,1H3
MERCURY GRAY MC.,1H9
PLATINUM SILVER ME.,1J4
SONIC TITANIUM,1J7
BLACK,202
STARLIGHT BLACK GF.,217
GRAPHITE BLACK GF.,223
GARNET RED MC.,3S0
SLEEK ECRU ME.,4U7
FIRE AGATE M.M.,4V3
DEEP PERIDOT MC.,6V6
TERRANE KHAKI M.M.,6X4
DEEP BLUE MC.,8X5
69237BNUT, REAR DOOR HANDLE
69239DBUSH, REAR DOOR HANDLE
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
WHITE PEARL CS.,077
SONIC QUARTZ,085
SILVER M.M.,1G1
SPARKLE SOLID GRAY M.M.,1H3
MERCURY GRAY MC.,1H9
PLATINUM SILVER ME.,1J4
SONIC TITANIUM,1J7
BLACK,202
STARLIGHT BLACK GF.,217
GRAPHITE BLACK GF.,223
GARNET RED MC.,3S0
SLEEK ECRU ME.,4U7
FIRE AGATE M.M.,4V3
DEEP PERIDOT MC.,6V6
TERRANE KHAKI M.M.,6X4
DEEP BLUE MC.,8X5
69251BPAD, REAR DOOR OUTSIDE HANDLE, NO.1 RH
69252BPAD, REAR DOOR OUTSIDE HANDLE, NO.1 LH
69253BPAD, REAR DOOR OUTSIDE HANDLE, NO.2 RH
69254BPAD, REAR DOOR OUTSIDE HANDLE, NO.2 LH
69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH
69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH
69318DSEAL, DOOR LOCK WIRING HARNESS
69330LOCK ASSY, REAR DOOR, RH
69340LOCK ASSY, REAR DOOR, LH
69420PLATE ASSY, REAR DOOR LOCK STRIKER
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH
6929630010SCREW, DOOR INSIDE HANDLE
main69296-30010
9014850003
main90148-50003
9014860022
main90148-60022
9014880066
main90148-80066
9018905003
main90189-05003
9356015020
main93560-15020
33 parts on this diagram · 1 diagram in section
