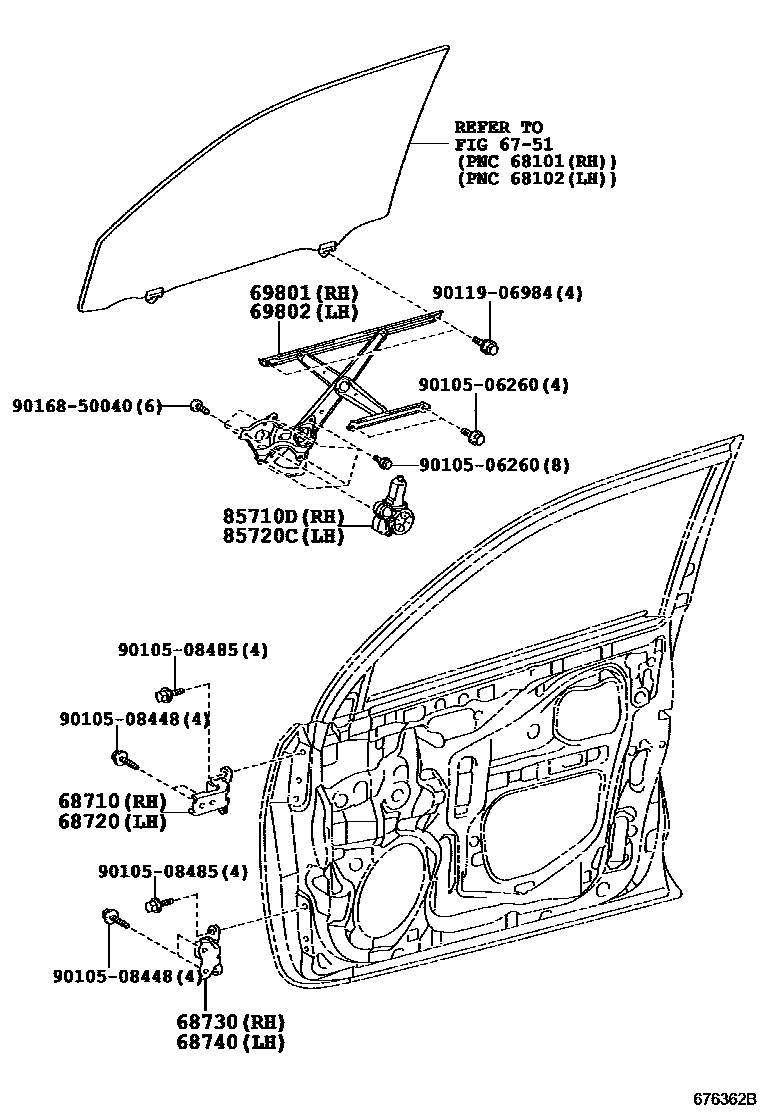

FRONT DOOR WINDOW REGULATOR & HINGE

6751

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12151iURJ150200911-201908

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12151iURJ150200911-201908

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-12120iURJ150200911-201908

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-12120iURJ150200911-201908

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-60090iURJ150200911-201908

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-60090iURJ150200911-201908

85710DMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-47110iURJ150201301-201502

main85710-48070iURJ150200911-200912

sub85710-75060

main85710-60250iURJ150200912-201107

sub85710-60251

main85710-60251iURJ150201108-201212

sub85710-47110

main85710-60350iURJ150201508-201511

sub85710-60351

main85710-60351iURJ150201512-202003

main85710-60380iURJ150201502-201508

main85710-60420iURJ150202004

85720CMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-47110iURJ150201301-201502

main85720-48080iURJ150200911-200912

sub85720-75060

main85720-60230iURJ150200912-201107

sub85720-60231

main85720-60231iURJ150201108-201212

sub85720-47110

main85720-60330iURJ150201508-201511

sub85720-60331

main85720-60331iURJ150201512-202003

main85720-60360iURJ150201502-201508

main85720-60390iURJ150202004

9010506260

main90105-06260

9010508448

main90105-08448

9010508485

main90105-08485

9011906984

main90119-06984

9016850040

main90168-50040

14 parts on this diagram · 1 diagram in section
