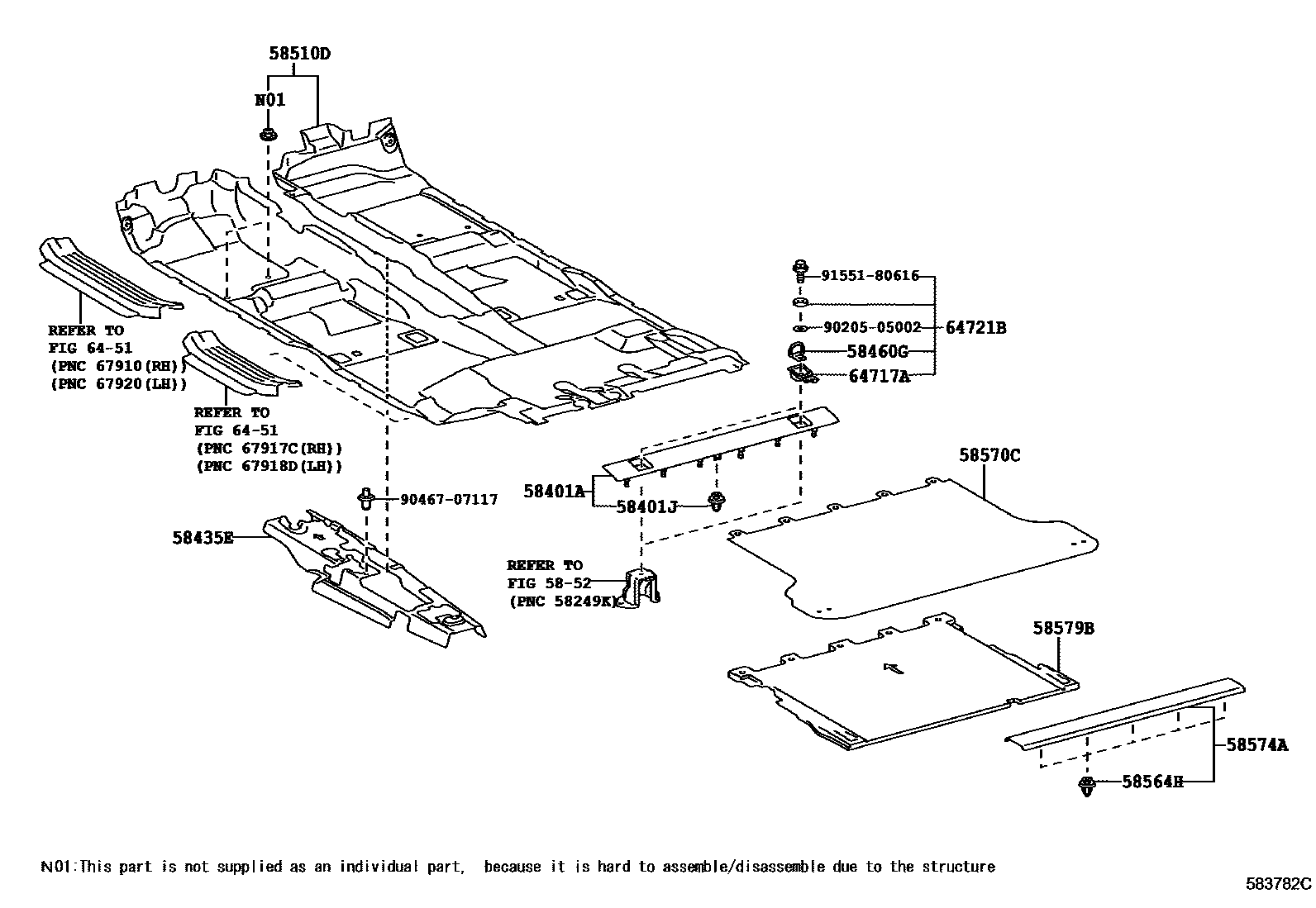

FLOOR MAT & SILENCER PAD
58401ABOARD SUB-ASSY, DECK, NO.1
58401JCLIP(FOR DECK BOAD)
2 SEAT PACKAGE,BLACK
58435ESILENCER, FRONT FLOOR, CENTER
58460GSTRIKER ASSY, LUGGAGE HOLD BELT
2 SEAT PACKAGE
58510DCARPET ASSY, FLOOR, FRONT
2 SEAT PACKAGE,BLACK,TRIM2#
2 SEAT PACKAGE,SEPIA,TRIM0#,4#
BLACK,TRIM2#
SEPIA,TRIM0#,4#
COOL BOX-WITH,BLACK,TRIM2#
COOL BOX-WITH,SEPIA,TRIM0#,4#
REAR NO.1 SEAT SEPARATE SEAT PACKAGE,BLACK,TRIM2#
REAR NO.1 SEAT SEPARATE SEAT PACKAGE,BLACK,TRIM0#,2#,4#
REAR NO.1 SEAT SEPARATE SEAT PACKAGE,SEPIA,TRIM0#,4#
REAR NO.1 SEAT SEPARATE SEAT PACKAGE&COOL & HOT BOX-WITH,BLACK,TRIM2#
REAR NO.1 SEAT SEPARATE SEAT PACKAGE&COOL BOX-WITH,BLACK,TRIM0#,2#,4#
REAR NO.1 SEAT SEPARATE SEAT PACKAGE&COOL & HOT BOX-WITH,SEPIA,TRIM0#,4#
BLACK,TRIM0#,1#,2#,4#
BLACK,TRIM2#
BLACK,TRIM0#,2#,4#
SEPIA,TRIM0#,4#
COOL BOX-WITH,BLACK,TRIM0#,1#,2#,4#
COOL BOX-WITH,BLACK,TRIM0#,2#,4#
COOL & HOT BOX-WITH,BLACK,TRIM2#
COOL & HOT BOX-WITH,SEPIA,TRIM0#,4#
5852
58564HCLIP(FOR REAR FLOOR CARPET)
58570CCARPET ASSY, REAR FLOOR
2 SEAT PACKAGE,BLACK,TRIM2#
2 SEAT PACKAGE,SEPIA,TRIM0#,4#
58574APLATE, REAR FLOOR MAT SUPPORT, REAR
2 SEAT PACKAGE,BLACK,TRIM2#
2 SEAT PACKAGE,SEPIA,TRIM0#,4#
BLACK,TRIM0#,2#,4#
BLACK,TRIM2#
BLACK,TRIM0#,1#,2#,4#
SEPIA,TRIM0#,4#
58579BPAD, REAR FLOOR
6451
64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT
64721BCOVER, LUGGAGE COMPARTMENT TRIM, NO.1
9020505002
main90205-05002
9046707117
main90467-07117
9155180616
main91551-80616
16 parts on this diagram · 3 diagrams in section
