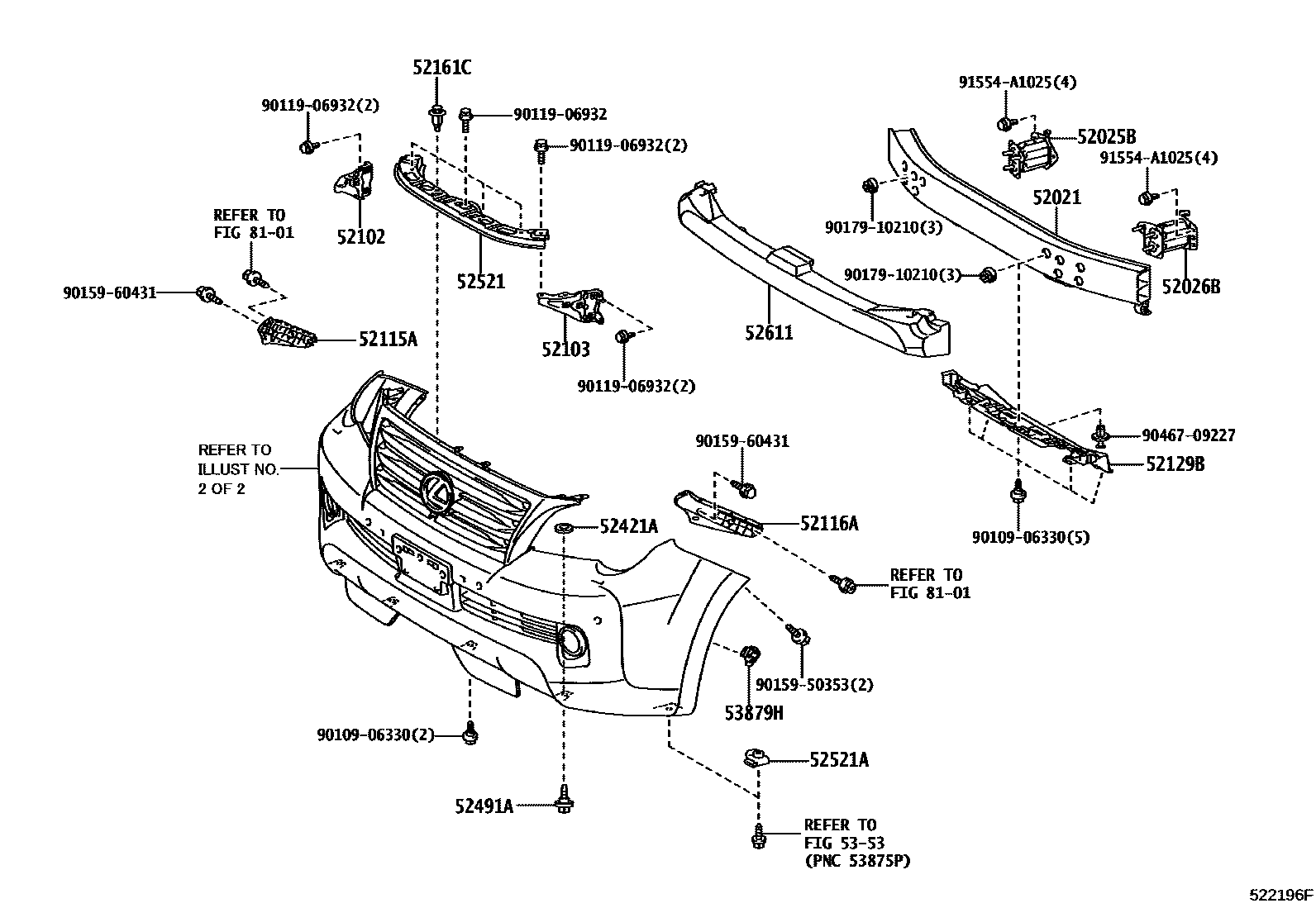

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-60170iURJ150200911-201308

sub52021-60240

main52021-60220iURJ150201308-201508

sub52021-60221

main52021-60221iURJ150201509-201908

52025BEXTENSION SUB-ASSY, FRONT BUMPER, NO.2 RH

main52025-60040iURJ150200911-201308

sub52025-60050

main52025-60050iURJ150201308-201908

52026BEXTENSION SUB-ASSY, FRONT BUMPER, NO.2 LH

main52026-60040iURJ150200911-201308

sub52026-60050

main52026-60050iURJ150201308-201908

52102BRACKET SUB-ASSY, FRONT BUMPER, RH

main52102-60250iURJ150201308-201908

main52102-60260iURJ150200911-201308

52103BRACKET SUB-ASSY, FRONT BUMPER, LH

main52103-60250iURJ150200911-201308

main52103-60260iURJ150201308-201908

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-60170iURJ150200911-201308

main52115-60190iURJ150201308-201908

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-60210iURJ150200911-201308

main52116-60230iURJ150201308-201908

52129BCOVER, FRONT BUMPER, LOWER

main52129-60020iURJ150200911-201308

main52129-60030iURJ150201308-201908

52161CPIECE, FRONT BUMPER

main52161-16010iURJ150200911-201308

sub52161-0K040

52421APAD, FRONT BUMPER

main52421-60191iURJ150200911-201908

52491ABOLT, BUMPER PAD

main52491-60010iURJ150200911-201908

52521RETAINER, FRONT BUMPER, UPPER CENTER

main52506-60070iURJ150201308-201908

main52521-60120iURJ150200911-201308

52521ACLIP(FOR FRONT BUMPER RETAINER)

main90467-05138iURJ150200911-201908

52611ABSORBER, FRONT BUMPER ENERGY

main52611-60080iURJ150200911-201308

main52611-60110iURJ150201308-201908

5353

53879HRETAINER, FRONT FENDER LINER

main53879-58010iURJ150200911-201908

8101

9010906330

main90109-06330

9011906932

main90119-06932

9015950353

main90159-50353

9015960431

main90159-60431

9017910210

main90179-10210

9046709227

main90467-09227

91554A1025

main91554-A1025

24 parts on this diagram · 6 diagrams in section
