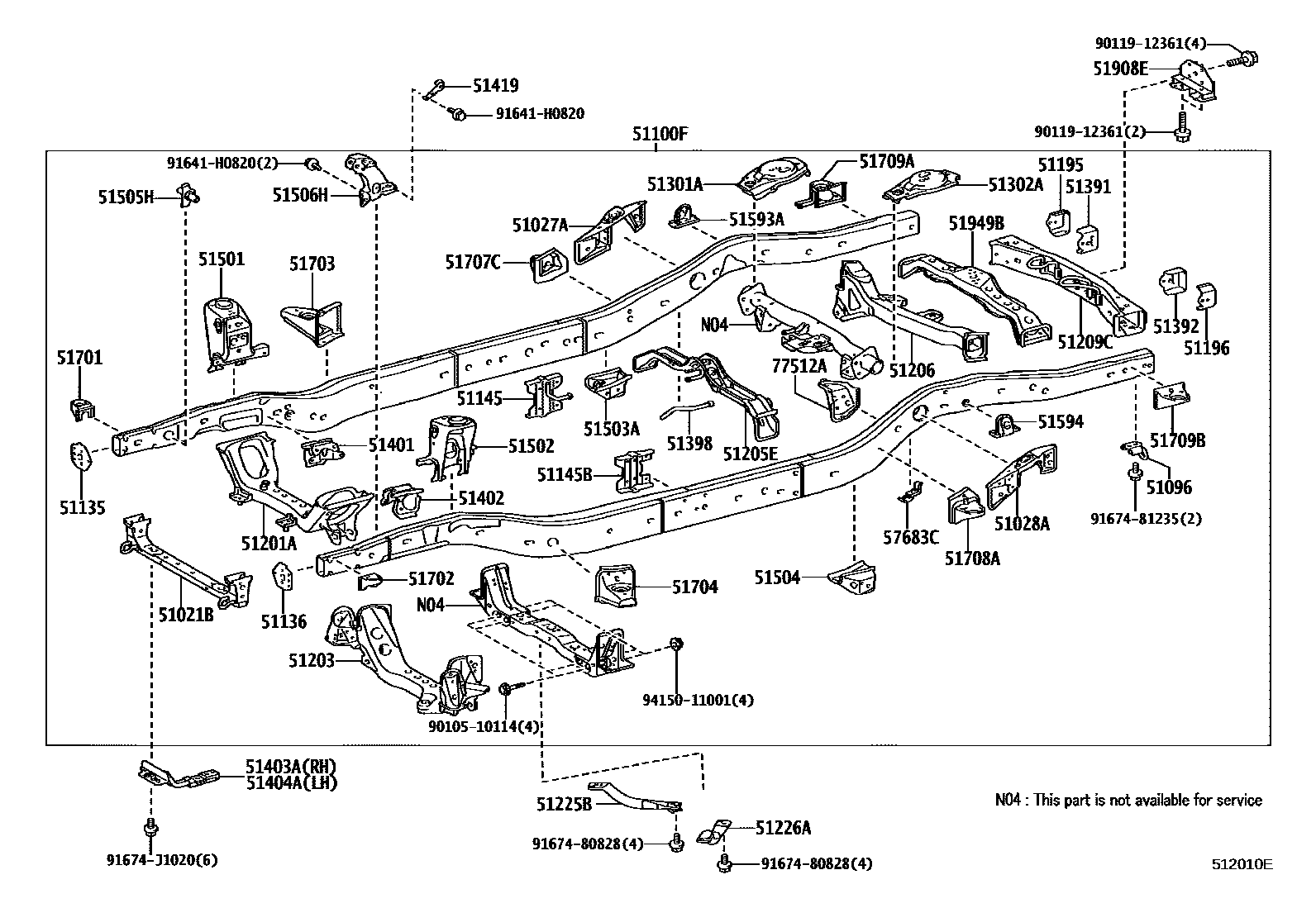

FRAME

51021BCROSSMEMBER SUB-ASSY, FRAME AUXILIARY

main51021-60041i200911-201908

51027ABRACKET SUB-ASSY, FRAME NO.4 CROSSMEMBER, RH

main51027-60030i200911-201908

51028ABRACKET SUB-ASSY, FRAME NO.4 CROSSMEMBER, LH

main51028-60040i200911-201908

51096HOOK SUB-ASSY, TRANSPORT, REAR LH

main51095-60030i200911-201908

51100FFRAME SUB-ASSY

main51001-60M90i200911-201308

sub51001-60M91

main51001-60M91i201308-201908

51135PLATE, FRAME SIDE RAIL, RH

main51135-60040i200911-201908

51136PLATE, FRAME SIDE RAIL, LH

main51136-60060i200911-201908

51145STIFFENER, FRAME SIDE RAIL

main510C1-60010i200911-201908

51145BSTIFFENER, FRAME SIDE RAIL

main51146-60140i200911-201908

51195PATCH, REAR FRAME RAIL, RH

main51191-60010i200911-201908

51196PATCH, REAR FRAME RAIL, LH

main51192-60010i200911-201908

51201ACROSSMEMBER SUB-ASSY, FRAME, FRONT

main51201-60190i200911-201908

51203CROSSMEMBER SUB-ASSY, FRAME, NO.2

main51202-60300i200911-201908

51205ECROSSMEMBER SUB-ASSY, FRAME, NO.4

main51204-60210i200911-201908

51206CROSSMEMBER SUB-ASSY, FRAME, NO.5

main51206-35090i200911-201211

sub51206-35091

main51206-35091i201212-201908

51209CCROSSMEMBER SUB-ASSY, FRAME, REAR

main51209-60220i200911-201908

51225BBRACKET, FRONT SUSPENSION MEMBER, RH

main51225-35050i200911-201908

51226ABRACKET, FRONT SUSPENSION MEMBER, LH

main51226-35070i200911-201908

51301ABRACKET SUB-ASSY, REAR SPRING, REAR RH

main51301-60050i200911-201908

51302ABRACKET SUB-ASSY, REAR SPRING, REAR LH

main51302-60060i200911-201908

51391GUSSET, FRAME REAR CROSSMEMBER, RH

main51391-60050i200911-201908

51392GUSSET, FRAME REAR CROSSMEMBER, LH

main51392-60030i200911-201908

51398BRACKET, EXHAUST PIPE SUPPORT

main17576-67050i200911-201908

51401BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH

main51401-35430i200911-201908

51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

main51402-35380i200911-201908

51403ABRACE SUB-ASSY, FRONT SUSPENSION MEMBER, RH

main51403-60030i200911-201908

51404ABRACE SUB-ASSY, FRONT SUSPENSION MEMBER, LH

main51403-60030i200911-201908

51419BRACKET, FRAME APRON SEAL

main51419-60010i200911-201908

51501SUPPORT SUB-ASSY, SUSPENSION ARM, RH

main51501-60050i200911-201908

51502SUPPORT SUB-ASSY, SUSPENSION ARM, LH

main51502-60050i200911-201908

51503ABRACKET SUB-ASSY, LOWER CONTROL LINK SUPPORT, RH

main5150C-60030i200911-201908

51504BRACKET SUB-ASSY, LOWER CONTROL LINK SUPPORT, LH

main5150D-60020i200911-201908

51505HBRACKET SUB-ASSY, FRONT STABILIZER, RH

main51505-60050i200911-201908

51506HBRACKET SUB-ASSY, FRONT STABILIZER, LH

main51506-60080i200911-201207

sub51506-60081

main51506-60081i201208-201308

sub51506-60090

main51506-60090i201308-201908

51593ABRACKET, REAR SPRING BUMPER, RH

main51593-35030i200911-201908

51594BRACKET, REAR SPRING BUMPER, LH

main51594-35030i200911-201908

51701BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH

main51701-60130i200911-201908

51702BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH

main51701-60130i200911-201908

51703BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH

main51703-60110i200911-201908

51704BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH

main51704-60100i200911-201908

51707CBRACKET SUB-ASSY, CAB MOUNTING, NO.4 RH

main51707-60110i200911-201908

51708ABRACKET SUB-ASSY, CAB MOUNTING, NO.4 LH

main51708-60090i200911-201908

51709ABRACKET SUB-ASSY, BODY REAR END MOUNTING

main51709-35040i200911-201908

51709BBRACKET SUB-ASSY, BODY REAR END MOUNTING, LH

main51706-35060i200911-201908

51908EBRACKET SUB-ASSY, RECEIVER HITCH

main51908-WY010i200911-201908

TOWING HITCH-WITH

51949BCROSSMEMBER, SPARE WHEEL CARRIER

main51099-35010i200911-201908

57683CBRACKET, FUEL TANK MOUNTING

main57683-35030i200911-201207

sub57683-35031

main57683-35031i201208-201908

77512ABRACKET, FUEL TANK, REAR

main77512-35120i200911-201207

sub77512-35121

main77512-35121i201208-201908

9010510114

main90105-10114

9011912361

main90119-12361

91641H0820

main91641-H0820

9167480828

main91674-80828

9167481235

main91674-81235

91674J1020

main91674-J1020

9415011001

main94150-11001

55 parts on this diagram · 1 diagram in section
