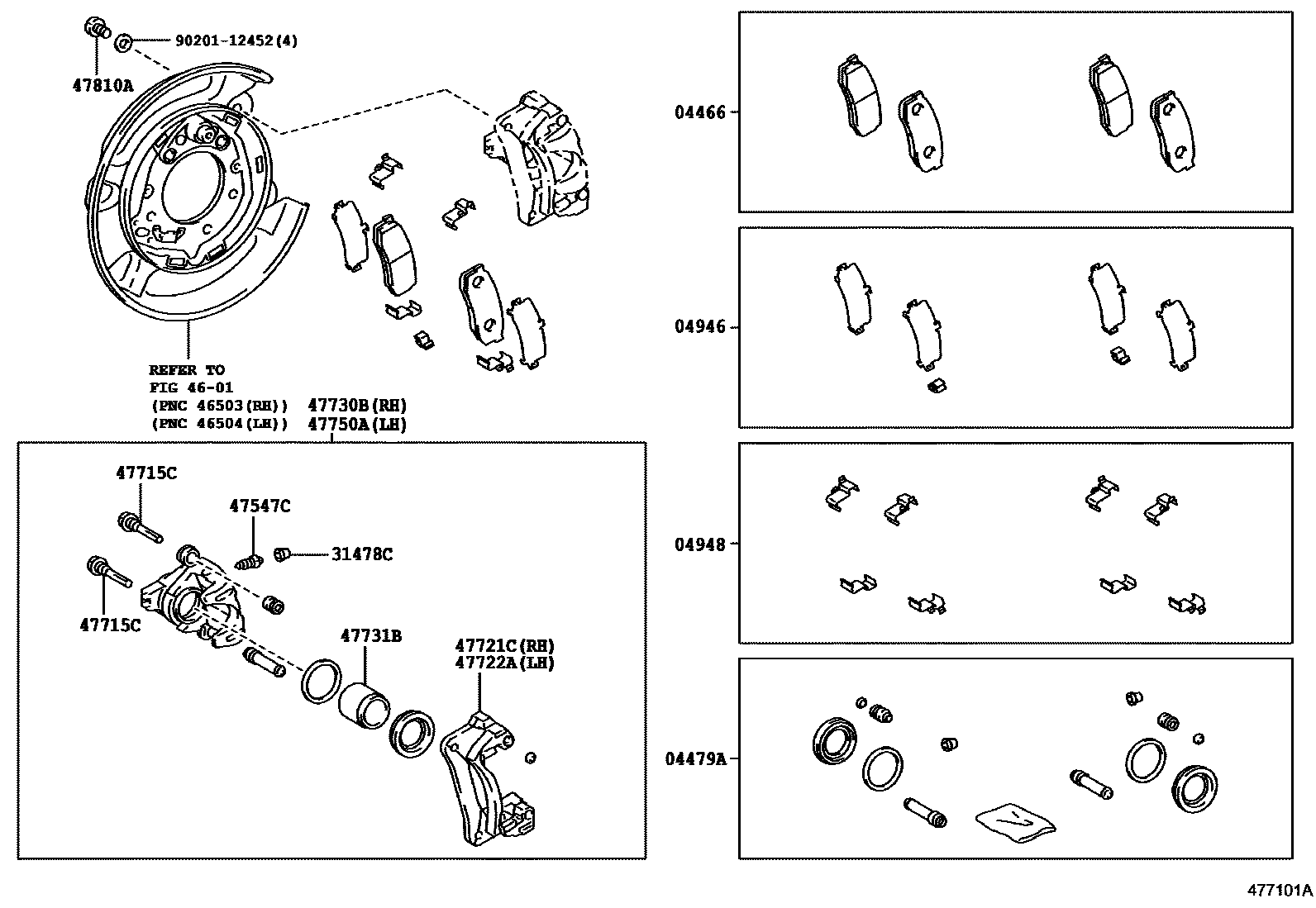

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-60140iURJ150¥7,300200911-201908

MARK AK PA561

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-60030iURJ150¥1,200200911-201908

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-60140iURJ150¥1,430200911-201411

sub04946-60141¥890

main04946-60141iURJ150¥890201411-201908

04948FITTING KIT, DISC BRAKE, REAR

main04947-22050iURJ150¥1,470200911-201908

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iURJ150¥160200911-201908

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-12010iURJ150¥180201701-201908

main47547-12030iURJ150¥400200911-201701

47715CPIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)

main47715-43010iURJ150¥550200911-201908

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47721-60020iURJ150¥4,000200911-201908

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47722-60020iURJ150¥4,000200911-201908

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-34030iURJ150¥21,500200911-201908

47731BPISTON, REAR DISC BRAKE

main47731-60020iURJ150¥1,200200911-201908

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-34030iURJ150¥21,500200911-201908

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90101-12167iURJ150¥110200911-201908

9020112452

main90201-12452¥170

15 parts on this diagram · 1 diagram in section
