EPC Data

DISC WHEEL & WHEEL CAP

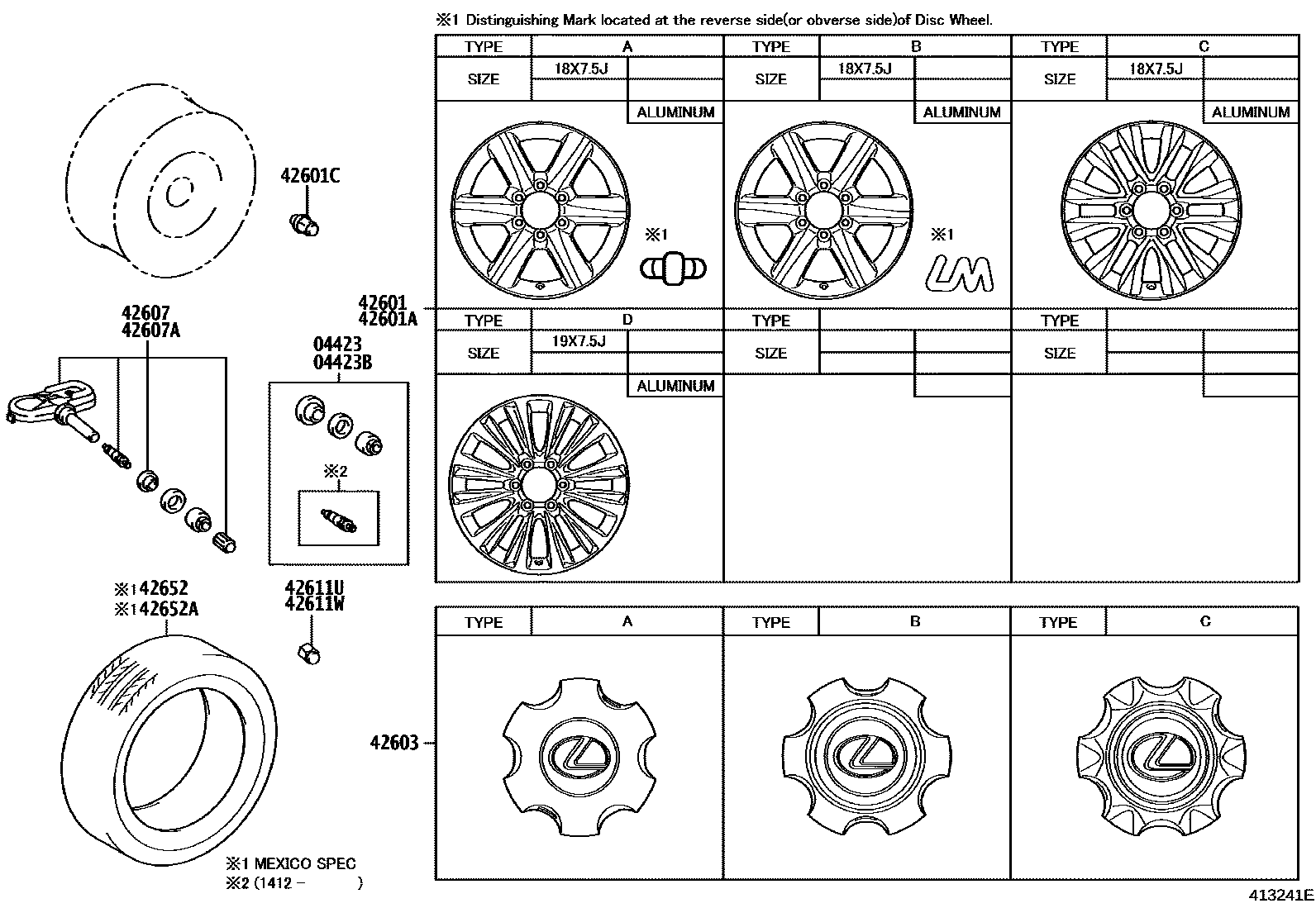

Parts diagram
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
main04423-33030i200911-201411
sub04423-33060
main04423-33060i201412-201908
04423BFITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE(SPARE)
main04423-33030i201008-201108
MEXICO SPEC
sub04423-33060
main04423-33030i201108-201308
CANADA SPEC&TIRE & DISK WHEEL-265/60R18 7.5J,HIGH GROSS PAINTED
sub04423-33060
main04423-33030i201108-201308
TIRE & DISK WHEEL-265/60R18 7.5J,HIGH GROSS PAINTED
sub04423-33060
main04423-33030i201308-201411
sub04423-33060
main04423-33060i201412-201908
42601WHEEL, DISC
main42611-60870i201308-201908
18X7.5J,#,TIRE & DISK WHEEL-265/60R18 7.5J ALUMI,TYPE A:REFER ILLUST.
sub42611-60871
main42611-60870i200911-201308
18X7.5J,#,TYPE A:REFER ILLUST.
sub42611-60871
main42611-60880i200911-201204
18X7.5J,#,TYPE B:REFER ILLUST.
sub42611-60870
main42611-60890i201308-201908
18X7.5J,#,CANADA SPEC&TIRE & DISK WHEEL-265/60R18 7.5J ALUMI,TYPE A:REFER ILLUST.
main42611-60890i200911-201308
18X7.5J,#,CANADA SPEC,TYPE A:REFER ILLUST.
main42611-60A00i200911-201204
18X7.5J,#,CANADA SPEC,TYPE B:REFER ILLUST.
sub42611-60890
main42611-60B80i201308-201909
18X7.5J,#,TYPE C:REFER ILLUST.
sub42611-60B81
main42611-60B81i201909
18X7.5J,#,TYPE C:REFER ILLUST.
main42611-60B90i201308-201908
18X7.5J,#,CANADA SPEC,TYPE C:REFER ILLUST.
main42611-60E60i202008
18X7.5J,#,COSTA RICA SPEC&TIRE & DISC WHEEL-265/60R18 7.5J ALM DARKGRAY METALICPAINT,TYPE C:REFER ILLUST.
main42611-60E60i201908
18X7.5J,#,TIRE & DISC WHEEL-265/60R18 7.5J ALM DARKGRAY METALICPAINT,TYPE C:REFERILLUST.
main42611-60E70i201908
18X7.5J,#,CANADA SPEC&TIRE & DISC WHEEL-265/60R18 7.5J ALM DARKGRAY METALICPAINT,TYPE C:REFER ILLUST.
main42611-60E80i201908
19X7.5J,#,TIRE & DISC WHEEL-265/55R19 7.5J ALM,TYPE D:REFER ILLUST.
main42611-60E90i201908
19X7.5J,#,CANADA SPEC&TIRE & DISC WHEEL-265/55R19 7.5J ALM,TYPE D:REFER ILLUST.
main42611-60F00i201908
19X7.5J,#,TIRE & DISC WHEEL-265/55R19 7.5J ALM DARK GRAY METALIC,TYPE D:REFER ILLUST.
main42611-60F10i201908
19X7.5J,#,CANADA SPEC&TIRE & DISC WHEEL-265/55R19 7.5J ALM DARK GRAY METALIC,TYPED:REFER ILLUST.
main42611-60F70i202108
18X7.5J,#,TIRE & DISC WHEEL-265/60R18 7.5J ALM (BLACK LINE),TYPE E:REFER ILLUST.
main42611-60F80i202108
18X7.5J,#,CANADA SPEC&TIRE & DISC WHEEL-265/60R18 7.5J ALM (BLACK LINE),TYPE E:REFER ILLUST.
main4261A-60090i201108-201308
18X7.5J,#,TIRE & DISK WHEEL-265/60R18 7.5J,HIGH GROSS PAINTED,TYPE A:REFER ILLUST.
main4261A-60090i201108-201308
18X7.5J,#,TYPE A:REFER ILLUST.
main4261A-60100i201108-201308
18X7.5J,#,CANADA SPEC,TYPE A:REFER ILLUST.
main4261A-60100i201108-201308
18X7.5J,#,CANADA SPEC&TIRE & DISK WHEEL-265/60R18 7.5J,HIGH GROSS PAINTED,TYPE A:REFER ILLUST.
main4261A-60130i201308-201908
18X7.5J,#,TIRE & DISK WHEEL-265/60R18 7.5J,HIGH GROSS PAINTED,TYPE C:REFER ILLUST.
sub4261A-60131
main4261A-60140i201308-201908
18X7.5J,#,CANADA SPEC&TIRE & DISK WHEEL-265/60R18 7.5J,HIGH GROSS PAINTED,TYPE C:REFER ILLUST.
main4261A-WY010i201608-201908
18X7.5J,#,TIRE & DISK WHEEL-ACCESSORIES M+GUNMETAL P,TYPE C:REFER ILLUST.
main4261A-WY020i201608-201908
18X7.5J,#,CANADA SPEC&TIRE & DISK WHEEL-ACCESSORIES M+GUNMETAL P,TYPE C:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
main42611-60870i200911-201308
18X7.5J,#,TYPE A:REFER ILLUST.
sub42611-60871
main42611-60870i201308-201908
18X7.5J,#,TIRE & DISK WHEEL-265/60R18 7.5J ALUMI,TYPE A:REFER ILLUST.
sub42611-60871
main42611-60880i200911-201204
18X7.5J,#,TYPE B:REFER ILLUST.
sub42611-60870
main42611-60890i200911-201308
18X7.5J,#,CANADA SPEC,TYPE A:REFER ILLUST.
main42611-60890i201308-201908
18X7.5J,#,CANADA SPEC&TIRE & DISK WHEEL-265/60R18 7.5J ALUMI,TYPE A:REFER ILLUST.
main42611-60A00i200911-201204
18X7.5J,#,CANADA SPEC,TYPE B:REFER ILLUST.
sub42611-60890
main42611-60B80i201308-201909
18X7.5J,#,TYPE C:REFER ILLUST.
sub42611-60B81
main42611-60B81i201909
18X7.5J,#,TYPE C:REFER ILLUST.
main42611-60B90i201308-201908
18X7.5J,#,CANADA SPEC,TYPE C:REFER ILLUST.
main42611-60E60i202008
18X7.5J,#,COSTA RICA SPEC&TIRE & DISC WHEEL-265/60R18 7.5J ALM DARKGRAY METALICPAINT,TYPE C:REFER ILLUST.
main42611-60E60i201908
18X7.5J,#,TIRE & DISC WHEEL-265/60R18 7.5J ALM DARKGRAY METALICPAINT,TYPE C:REFERILLUST.
main42611-60E70i201908
18X7.5J,#,CANADA SPEC&TIRE & DISC WHEEL-265/60R18 7.5J ALM DARKGRAY METALICPAINT,TYPE C:REFER ILLUST.
main42611-60E80i201908
19X7.5J,#,TIRE & DISC WHEEL-265/55R19 7.5J ALM,TYPE D:REFER ILLUST.
main42611-60E90i201908
19X7.5J,#,CANADA SPEC&TIRE & DISC WHEEL-265/55R19 7.5J ALM,TYPE D:REFER ILLUST.
main42611-60F00i201908
19X7.5J,#,TIRE & DISC WHEEL-265/55R19 7.5J ALM DARK GRAY METALIC,TYPE D:REFER ILLUST.
main42611-60F10i201908
19X7.5J,#,CANADA SPEC&TIRE & DISC WHEEL-265/55R19 7.5J ALM DARK GRAY METALIC,TYPED:REFER ILLUST.
main42611-60F70i202108
18X7.5J,#,TIRE & DISC WHEEL-265/60R18 7.5J ALM (BLACK LINE),TYPE E:REFER ILLUST.
main42611-60F80i202108
18X7.5J,#,CANADA SPEC&TIRE & DISC WHEEL-265/60R18 7.5J ALM (BLACK LINE),TYPE E:REFER ILLUST.
main4261A-60090i201108-201308
18X7.5J,#,TYPE A:REFER ILLUST.
main4261A-60090i201108-201308
18X7.5J,#,TIRE & DISK WHEEL-265/60R18 7.5J,HIGH GROSS PAINTED,TYPE A:REFER ILLUST.
main4261A-60100i201108-201308
18X7.5J,#,CANADA SPEC&TIRE & DISK WHEEL-265/60R18 7.5J,HIGH GROSS PAINTED,TYPE A:REFER ILLUST.
main4261A-60100i201108-201308
18X7.5J,#,CANADA SPEC,TYPE A:REFER ILLUST.
main4261A-60130i201308-201908
18X7.5J,#,TIRE & DISK WHEEL-265/60R18 7.5J,HIGH GROSS PAINTED,TYPE C:REFER ILLUST.
sub4261A-60131
main4261A-60140i201308-201908
18X7.5J,#,CANADA SPEC&TIRE & DISK WHEEL-265/60R18 7.5J,HIGH GROSS PAINTED,TYPE C:REFER ILLUST.
main4261A-WY010i201608-201908
18X7.5J,#,TIRE & DISK WHEEL-ACCESSORIES M+GUNMETAL P,TYPE C:REFER ILLUST.
main4261A-WY020i201608-201908
18X7.5J,#,CANADA SPEC&TIRE & DISK WHEEL-ACCESSORIES M+GUNMETAL P,TYPE C:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
main90942-01058i200911-201908
42603ORNAMENT SUB-ASSY, WHEEL HUB
main4260B-60200i201308-201310
*ALU,TIRE & DISK WHEEL-265/60R18 7.5J ALUMI,TYPE A:REFER ILLUST.
sub4260B-60201
main4260B-60200i200911-201308
*ALU,TYPE A:REFER ILLUST.
sub4260B-60201
main4260B-60201i201311-201908
*ALU,TIRE & DISK WHEEL-265/60R18 7.5J ALUMI,TYPE A:REFER ILLUST.
main4260B-60270i201108-201307
*CHR,TYPE A:REFER ILLUST.
sub4260B-60271
main4260B-60270i201108-201307
*CHR,TIRE & DISK WHEEL-265/60R18 7.5J,HIGH GROSS PAINTED,TYPE A:REFER ILLUST.
sub4260B-60271
main4260B-60320i201308-201908
*ALU,TYPE B:REFER ILLUST.
main4260B-60330i201308-201908
*CHR,TIRE & DISK WHEEL-265/60R18 7.5J,HIGH GROSS PAINTED,TYPE B:REFER ILLUST.
main4260B-60480i201908
*ALU,TIRE & DISC WHEEL-265/60R18 7.5J ALM DARKGRAY METALICPAINT,TYPE B:REFER ILLUST.
main4260B-60490i201908
*ALU,TIRE & DISC WHEEL-265/55R19 7.5J ALM,TYPE C:REFER ILLUST.
main4260B-60500i201908
*ALU,TIRE & DISC WHEEL-265/55R19 7.5J ALM DARK GRAY METALIC,TYPE C:REFER ILLUST.
main4260B-WY010i201608-201908
*ALU,TIRE & DISK WHEEL-ACCESSORIES M+GUNMETAL P,TYPE B:REFER ILLUST.
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
main42607-30060i201708-201908
main42607-33021i200911-201708
sub42607-33022
main42607-48010i201908-202108
TYPE A:REFER ILLUST.
main42607-48020i202008-202108
COSTA RICA SPEC,TYPE A:REFER ILLUST.
main42607-48020i202008-202108
COSTA RICA SPEC&TIRE & DISC WHEEL-265/60R18 7.5J ALM DARKGRAY METALICPAINT,TYPE A:REFER ILLUST.
main42607-53020i202108
TYPE B:REFER ILLUST.
main42607-53040i202108
COSTA RICA SPEC,TYPE B:REFER ILLUST.
main42607-53040i202108
COSTA RICA SPEC&TIRE & DISC WHEEL-265/60R18 7.5J ALM DARKGRAY METALICPAINT,TYPE B:REFER ILLUST.
42607AVALVE SUB-ASSY, TIRE PRESSURE MONITOR (FOR SPARE)
main42607-30060i201708-201908
main42607-33021i200911-201708
sub42607-33022
main42607-48010i201908-202108
TYPE A:REFER ILLUST.
main42607-48020i202008-202108
COSTA RICA SPEC,TYPE A:REFER ILLUST.
main42607-48020i202008-202108
COSTA RICA SPEC&TIRE & DISC WHEEL-265/60R18 7.5J ALM DARKGRAY METALICPAINT,TYPE A:REFER ILLUST.
main42607-53020i202108
TYPE B:REFER ILLUST.
main42607-53040i202108
COSTA RICA SPEC,TYPE B:REFER ILLUST.
main42607-53040i202108
COSTA RICA SPEC&TIRE & DISC WHEEL-265/60R18 7.5J ALM DARKGRAY METALICPAINT,TYPE B:REFER ILLUST.
42611UCAP, TIRE VALVE
main90942-05037i200911-201208
main90942-05042i201208-201908
42611WCAP, TIRE VALVE (FOR SPARE)
main90942-05037i200911-201208
main90942-05042i201208-201908
42652TIRE
main42652-60F60i201008-201108
265/60R18,*B/S,MEXICO SPEC
sub42652-60F61
main42652-60F70i201008-201108
265/60R18,*D/L,MEXICO SPEC
sub42652-60F71
42652ATIRE (FOR SPARE)
main42652-60F60i201008-201108
265/60R18,*B/S,MEXICO SPEC
sub42652-60F61
main42652-60F70i201008-201108
265/60R18,*D/L,MEXICO SPEC
sub42652-60F71

12 parts on this diagram · 4 diagrams in section
