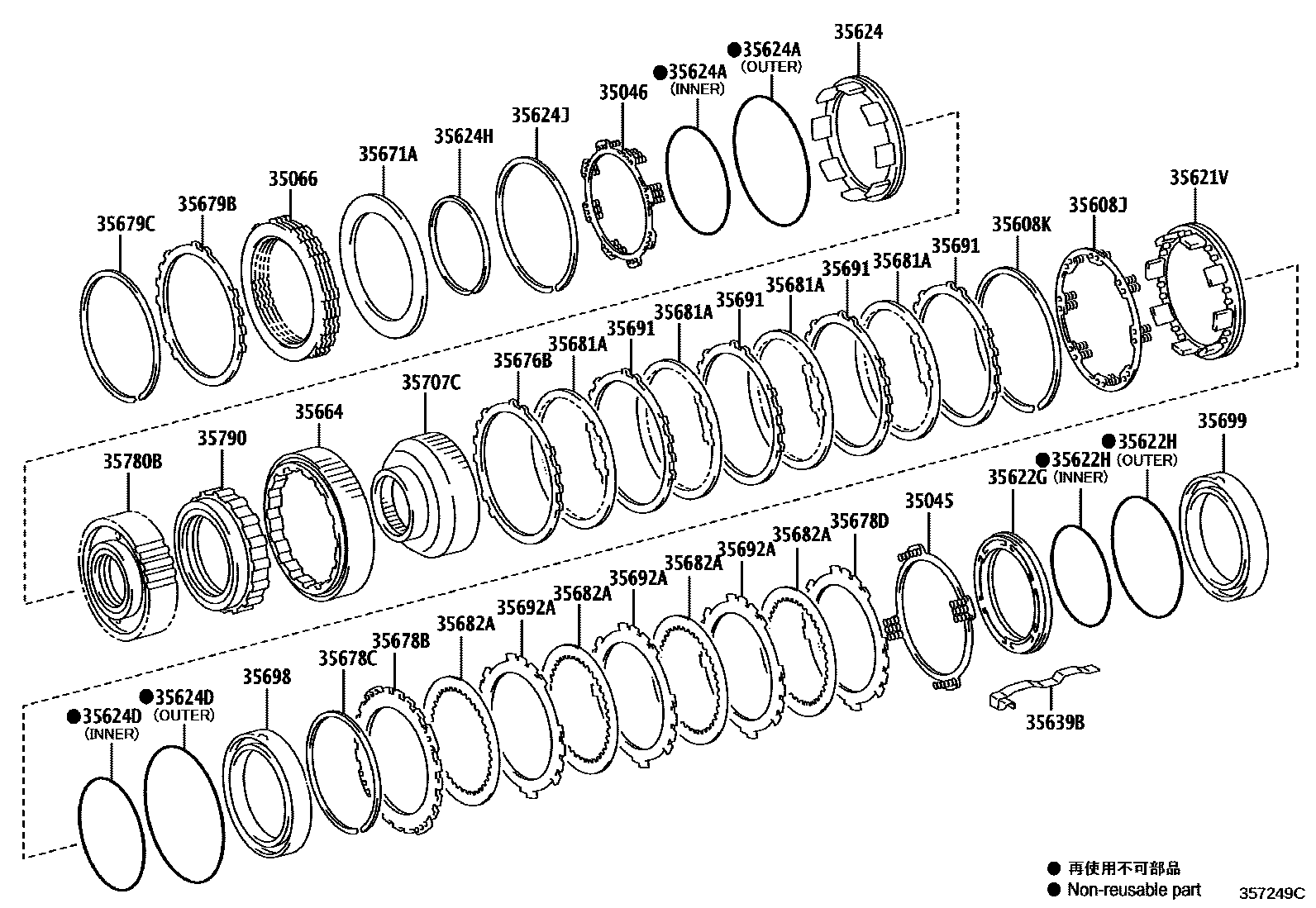

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)
35045SPRING SUB-ASSY, BRAKE PISTON RETURN,NO.2
35046SPRING SUB-ASSY, BRAKE PISTON RETURN, NO.3
35066DISC SET, 2ND BRAKE
35608JSPRING SUB-ASSY, BRAKE PISTON RETURN
35608KRING, SNAP (FOR BRAKE PISTON RETURN SPRING)
35621VPISTON, BRAKE, NO.1
35622GPISTON, BRAKE, NO.2
35622HRING, O (FOR BRAKE PISTON NO.2)
OUTER
INNER
35624PISTON, 2ND BRAKE
35624ARING, O (FOR 2ND BRAKE PISTON)
INNER
OUTER
35624DRING, O (FOR BRAKE PISTON NO.4)
OUTER
INNER
INNER
35624HRING, SNAP (FOR 2ND BRAKE PISTON)
35624JRING, HOLE SNAP (FOR 2ND BRAKE PISTON)
35639BSPRING, BRAKE PLATE STOPPER
35671APLATE, BRAKE CUSHION
35676BFLANGE, BRAKE, NO.1
T=2.0,MARK 0
T=2.2,MARK 1
T=2.4,MARK 2
T=2.6,MARK 3
35678BFLANGE, BRAKE, NO.2
T=2.0 MARK 0
T=2.1 MARK 1
T=2.2 MARK 2
T=2.3 MARK 3
T=2.4 MARK 4
T=2.5 MARK 5
T=2.6 MARK 6
T=2.7 MARK 7
35678CRING, SNAP (FOR BRAKE NO.2)
35678DFLANGE, BRAKE, NO.2
T=4.6
35679BFLANGE, BRAKE, NO.3
35679CRING, SNAP (FOR BRAKE NO.3)
35681ADISC, BRAKE, NO.1
35682ADISC, BRAKE, NO.2
35691PLATE, BRAKE, NO.1
35692APLATE, BRAKE, NO.2
35698CYLINDER, BRAKE, NO.1
35699CYLINDER, BRAKE, NO.2
35707CRACE SUB-ASSY, 1 WAY CLUTCH, INNER
35780BCLUTCH ASSY, 1 WAY N0.2
35790CLUTCH ASSY, 1 WAY
31 parts on this diagram · 1 diagram in section
