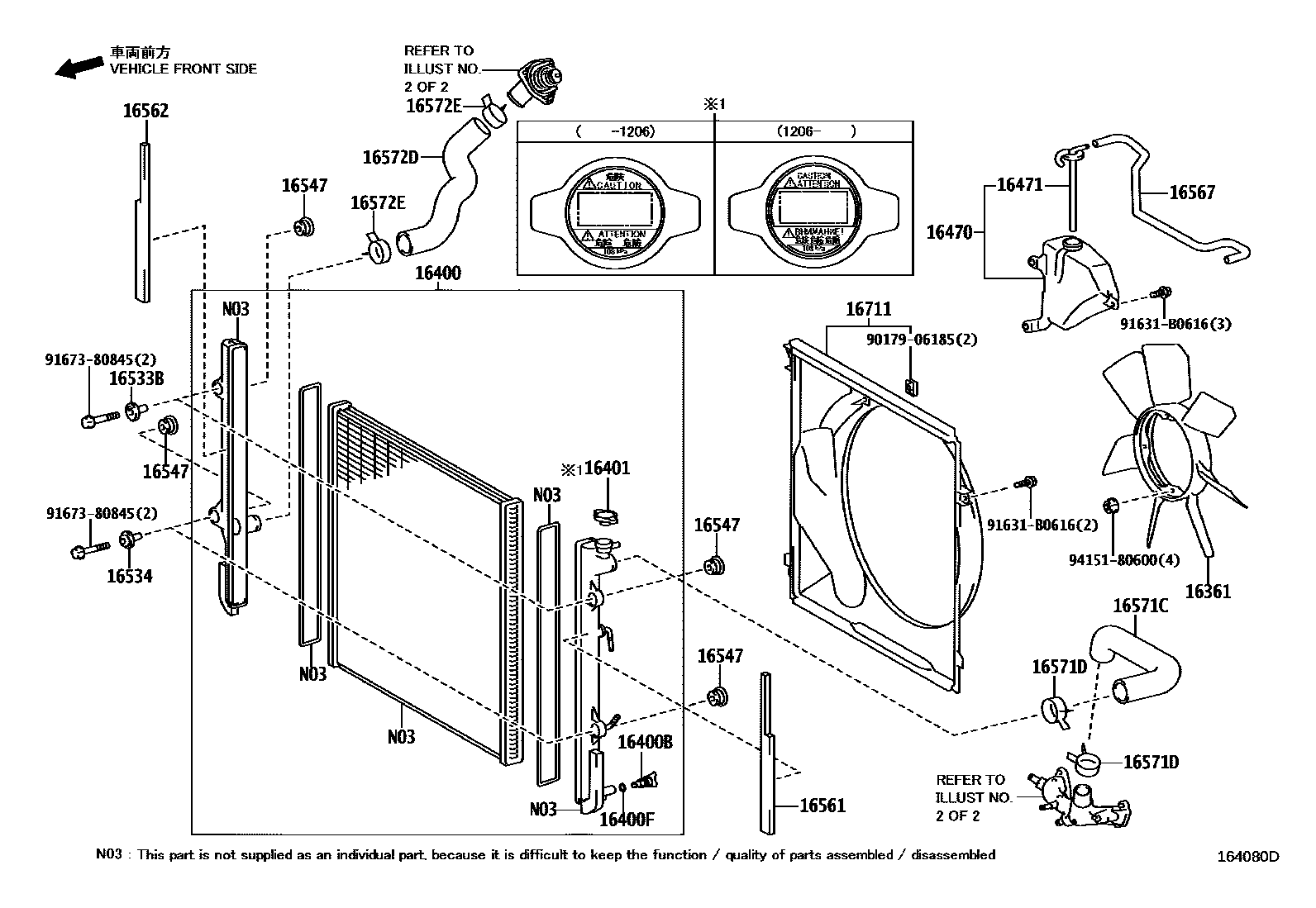

RADIATOR & WATER OUTLET
16361FAN
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16470TANK ASSY, RADIATOR RESERVE
16471CAP SUB-ASSY, RESERVE TANK
16533BSUPPORT, RADIATOR, NO.1
16534SUPPORT, RADIATOR, NO.2
16547BUSH, RADIATOR SUPPORT, NO.1
16561SEAL, RADIATOR TO SUPPORT, NO.1
16562SEAL, RADIATOR TO SUPPORT, NO.2
16567HOSE(FOR RADIATOR RESERVE TANK)
16571DCLIP, RADIATOR HOSE, NO.1
16572ECLIP, RADIATOR HOSE, NO.2
16711SHROUD, FAN
9017906185
main90179-06185
91631B0616
main91631-B0616
9167380845
main91673-80845
9415180600
main94151-80600
22 parts on this diagram · 2 diagrams in section
