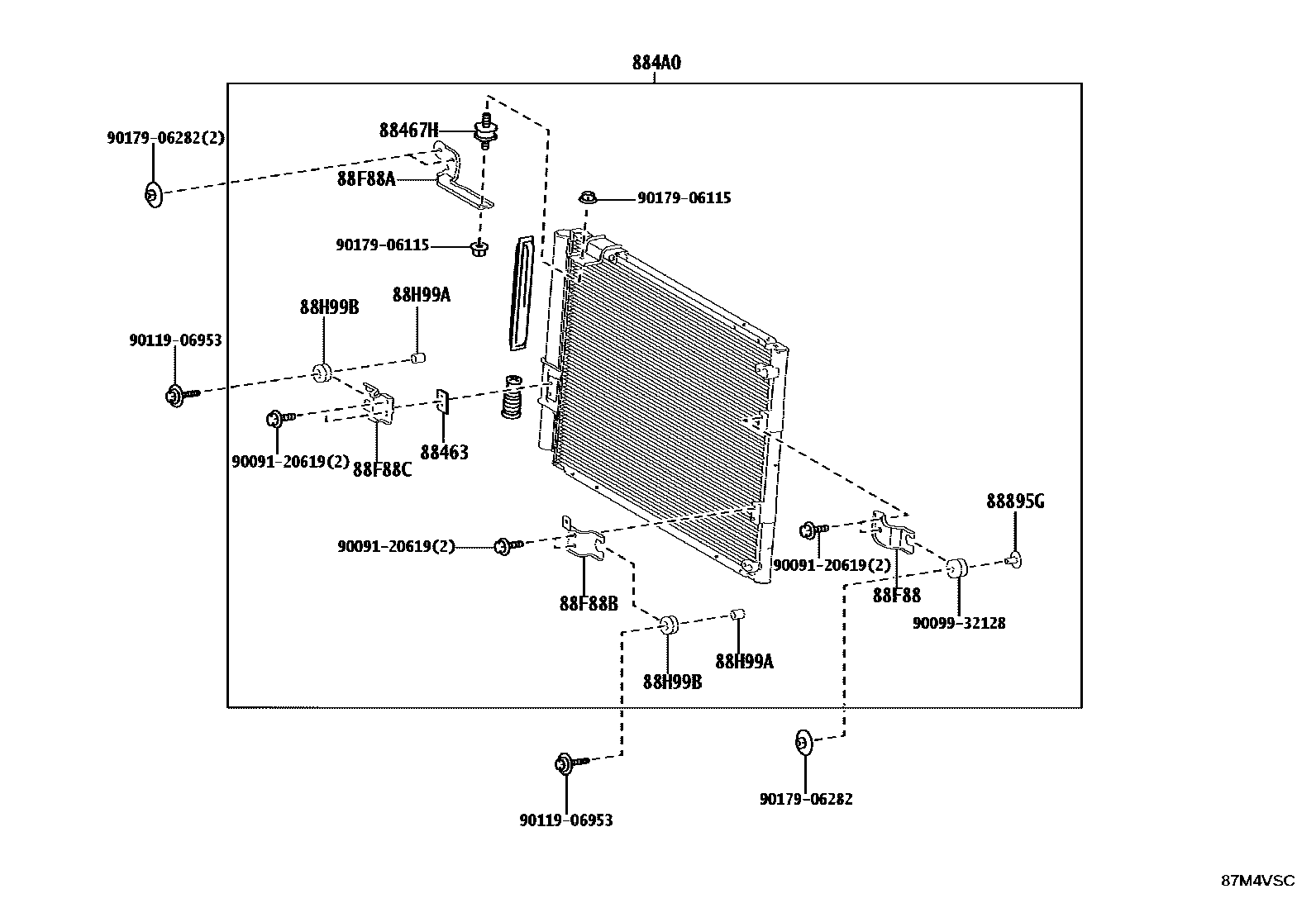

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1CONDENSER 0002 1FRONT W(DUAL MODE CONTROL) 0003 1FRONT W/O(DUAL MODE CONTROL) 0004 1REAR W(COOL BOX) 0005 1REAR W/O(COOL BOX)

88463BRACKET, COOLER CONDENSER, NO.1

main88463-37370iTJH250202402

88467HCUSHION, CONDENSER BRACKET, NO.1

main88467-48010iTJH250202402

884A0CONDENSER ASSY, COOLER

main884A0-60100iTJH250202402

88895GBUSH

main88895-89102iTJH250202402

88F88BRACKET, CONDENSER, NO.1

main88688-60F80iTJH250202402

88F88ABRACKET, CONDENSER, NO.2

main88688-60F90iTJH250202402

88F88BBRACKET, CONDENSER, NO.3

main88688-60G00iTJH250202402

88F88CBRACKET, CONDENSER, NO.4

main88688-60G10iTJH250202402

88H99ABUSH, CONDENSER BRACKET, NO.1

main88899-60650iTJH250202402

88H99BBUSH, CONDENSER BRACKET, NO.2

main88899-60660iTJH250202402

9009120619

main90091-20619

9009932128

main90099-32128

9011906953

main90119-06953

9017906115

main90179-06115

9017906282

main90179-06282

15 parts on this diagram · 5 diagrams in section
