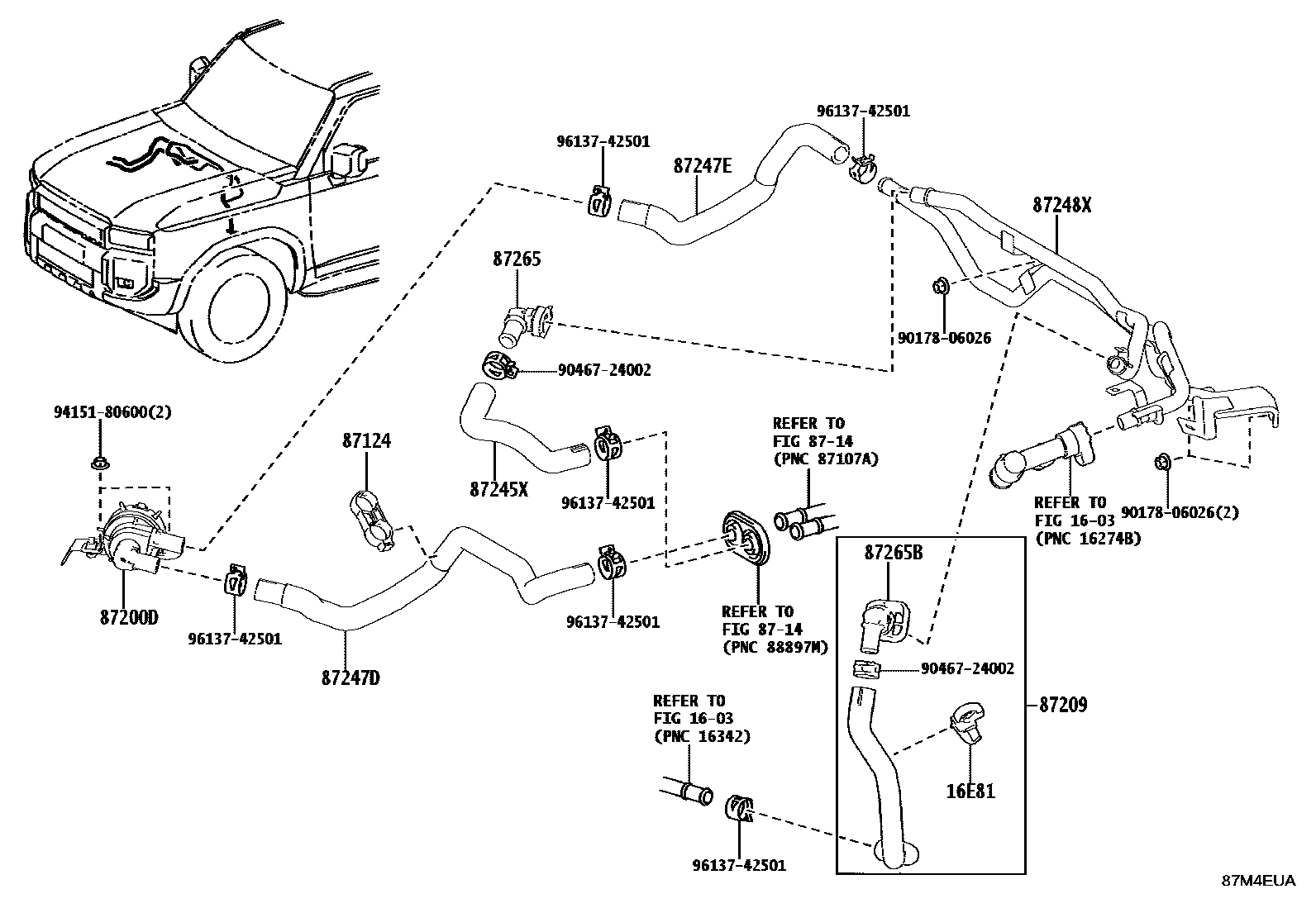

HEATING & AIR CONDITIONING - WATER PIPING

0001 1FRONT,W/O(REAR AIR CONDITIONE0002 1FRONT,W(REAR AIR CONDITIONER)0003 1REAR(1/2) 0004 1REAR(2/2)

1603

16E81CLAMP, HOSE(FOR WATER HOSE)

main16581-70050iT24..TJH250¥530202402

87124CLAMP, HEATER

main88718-6B070iTJH250202402

8714

87200DACCESSORY ASSY, HEATER

main87200-60380iTJH250202402

87209HOSE SUB-ASSY, WATER

main87209-60P80iTJH250202402

87245XHOSE, HEATER WATER

main87243-60220iTJH250202402

REAR AIR CONDITIONER-WITH

87247DHOSE, HEATER WATER, D

main87243-60240iTJH250202402

87247EHOSE, HEATER WATER, E

main87246-60120iTJH250202402

REAR AIR CONDITIONER-WITH

87248XPIPE, HEATER WATER

main87248-60F10iTJH250202402

87265CONNECTOR, HEATER WATER HOSE

main87265-50010iTJH250¥970202402

87265BCONNECTOR, HEATER WATER HOSE, NO.2

main87265-50010iTJH250¥970202402

9017806026

main90178-06026¥80

9046724002

main90467-24002¥240

9415180600

main94151-80600¥60

9613742501

main96137-42501¥240

16 parts on this diagram · 4 diagrams in section
