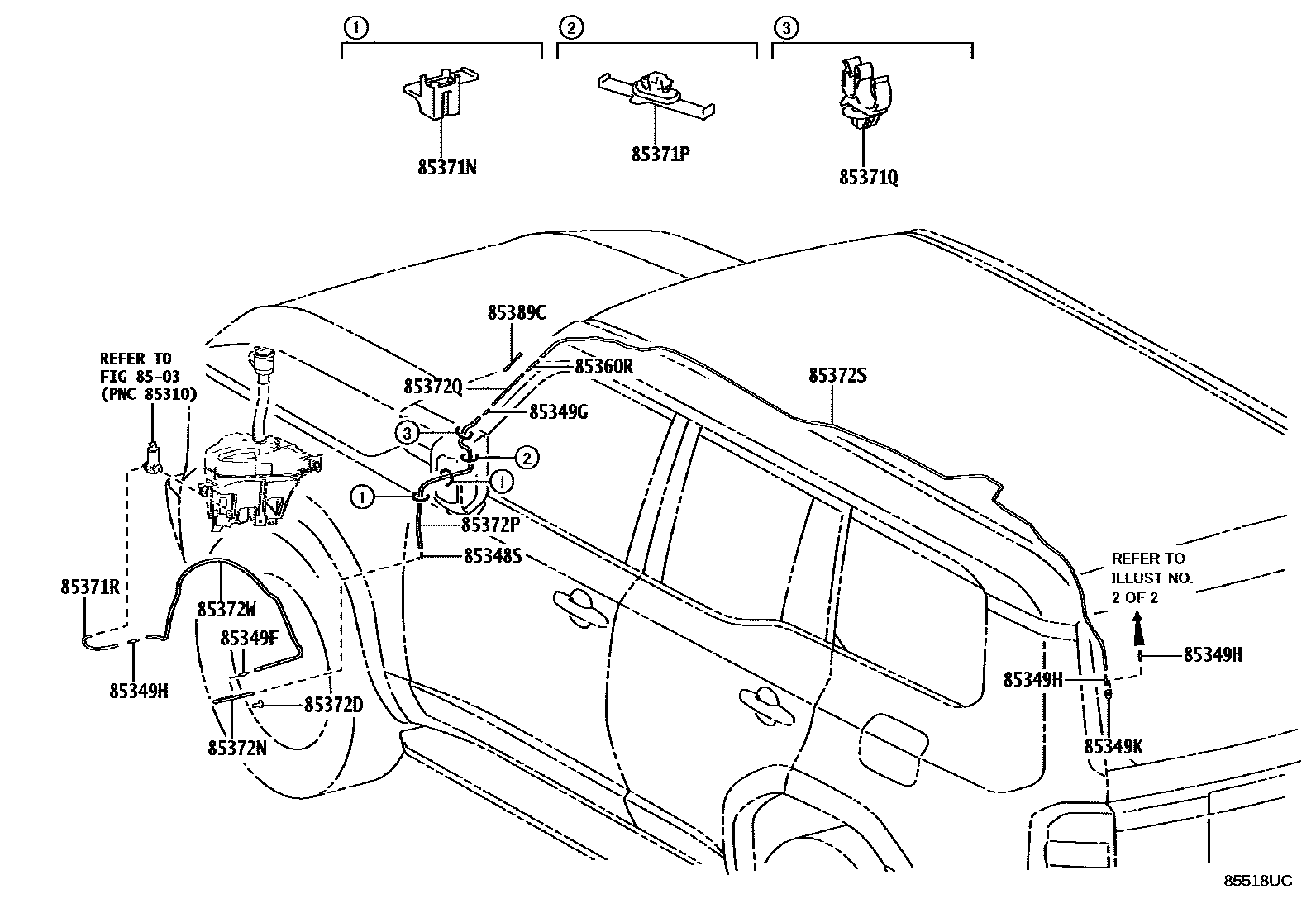

REAR WASHER

8503

85348SJOINT, REAR WASHER ELBOW, NO.1

85349FJOINT, REAR WASHER HOSE, NO.1

85349GJOINT, REAR WASHER HOSE, NO.2

85349HJOINT, REAR WASHER HOSE, NO.3

85349KJOINT, REAR WASHER ELBOW, NO.2

85360RBRACKET ASSY, REAR WASHER

85371NCLAMP, REAR WASHER HOSE

85371PCLAMP, REAR WASHER HOSE, NO.2

85371QCLAMP, REAR WASHER HOSE, NO.3

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

L=1450(*H,L=150)

85372DGROMMET, REAR WASHER HOSE

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

L=1000(*H,L=200)

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

L=716

85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3

L=1000(*H,L=180)

85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4

L=3200(*H,L=2900)

85372WHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5

L=2000(*H,L=1260)

L=420

85389CPROTECTOR, WASHER

18 parts on this diagram · 2 diagrams in section
