MOULDING
60117COVER SUB-ASSY, FRONT PILLAR, UPR RH
60118COVER SUB-ASSY, FRONT PILLAR, UPR LH
61991BPROTECTOR, FRONT PILLAR COVER, RH
61992PROTECTOR, FRONT PILLAR COVER, LH
62791GMOULDING, QUARTER WINDOW, UPPER RH
62792VMOULDING, QUARTER WINDOW, UPPER LH
75075ACLIP(FOR REAR DOOR OUTSIDE MOULDING)
75535FMOULDING, WINDSHIELD, OUTSIDE LOWER RH
75536BMOULDING, WINDSHIELD, OUTSIDE LOWER LH
75545BCLIP, WINDSHIELD OUTSIDE MOULDING, NO.1
75547BCLIP, WINDSHIELD OUTSIDE MOULDING, NO.3
75548AFASTENER, WINDSHIELD OUTSIDE MOULDING, NO.1
75551MOULDING, ROOF DRIP SIDE FINISH, RH
NO PAINT REQ.
75552MOULDING, ROOF DRIP SIDE FINISH, LH
NO PAINT REQ.
75553AMOULDING, ROOF DRIP SIDE FINISH, REAR RH
75554AMOULDING, ROOF DRIP SIDE FINISH, REAR LH
75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH
75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH
75557CMOULDING, ROOF DRIP SIDE FINISH, CENTER NO.2 RH
75558CMOULDING, ROOF DRIP SIDE FINISH, CENTER NO.2 LH
75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1
75596COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, RH
ROOF RAIL-WITHOUT
75597COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, LH
ROOF RAIL-WITHOUT
75711BMOULDING, FRONT DOOR BELT, RH
75712BMOULDING, FRONT DOOR BELT, LH
75721AMOULDING, REAR DOOR BELT, RH
75722AMOULDING, REAR DOOR BELT, LH
75755AMOULDING, FRONT DOOR WINDOW FRAME, RH(CENTER PILLAR SIDE)
75756DMOULDING, FRONT DOOR WINDOW FRAME, LH(CENTER PILLAR SIDE)
75761BMOULDING, REAR DOOR WINDOW FRAME, RH(CENTER PILLAR SIDE)
75762BMOULDING, REAR DOOR WINDOW FRAME, LH(CENTER PILLAR SIDE)
75770MOULDING ASSY, HOOD, FRONT
NO PAINT REQ.
NO PAINT REQ.
75774ESPACER, HOOD MOULDING
75777EPAD, HOOD FRONT MOULDING
75781MOULDING, QUARTER WINDOW, LOWER RH
75781ACLIP, QUARTER WINDOW MOULDING
75782MOULDING, QUARTER WINDOW, LOWER LH
75792CLIP, DOOR WINDOW FRAME MOULDING
7652
6276360030RUN, SIDE WINDOW, NO.3(FOR SLIDE TYPE)
main62763-60030
8149652020GUIDE, REAR COMBINATION LAMP
main81496-52020
9010905118
main90109-05118
9017605023
main90176-05023
9024907055
main90249-07055
9046707215
main90467-07215
9046708225
main90467-08225
9046708234
main90467-08234

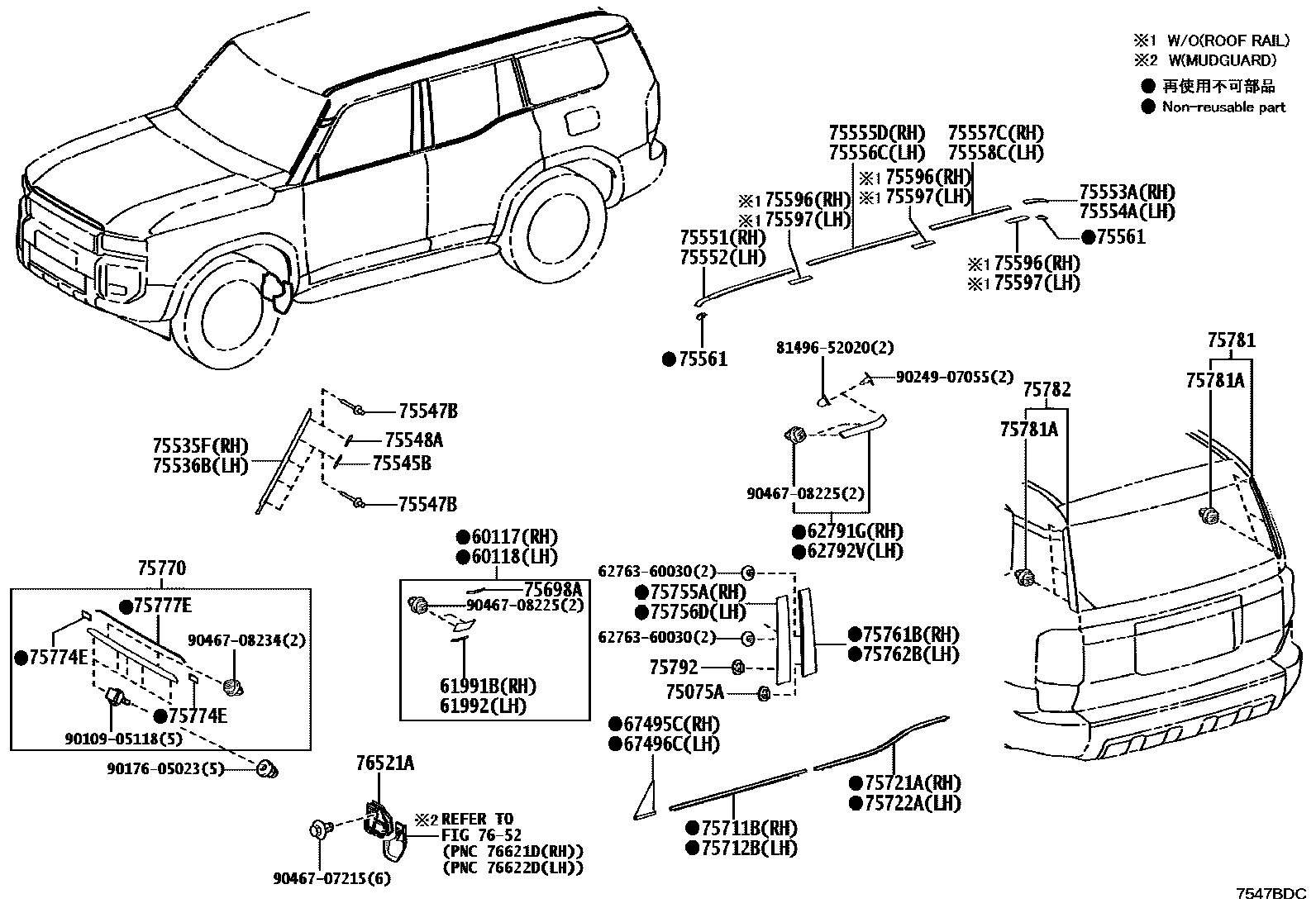

51 parts on this diagram · 2 diagrams in section
