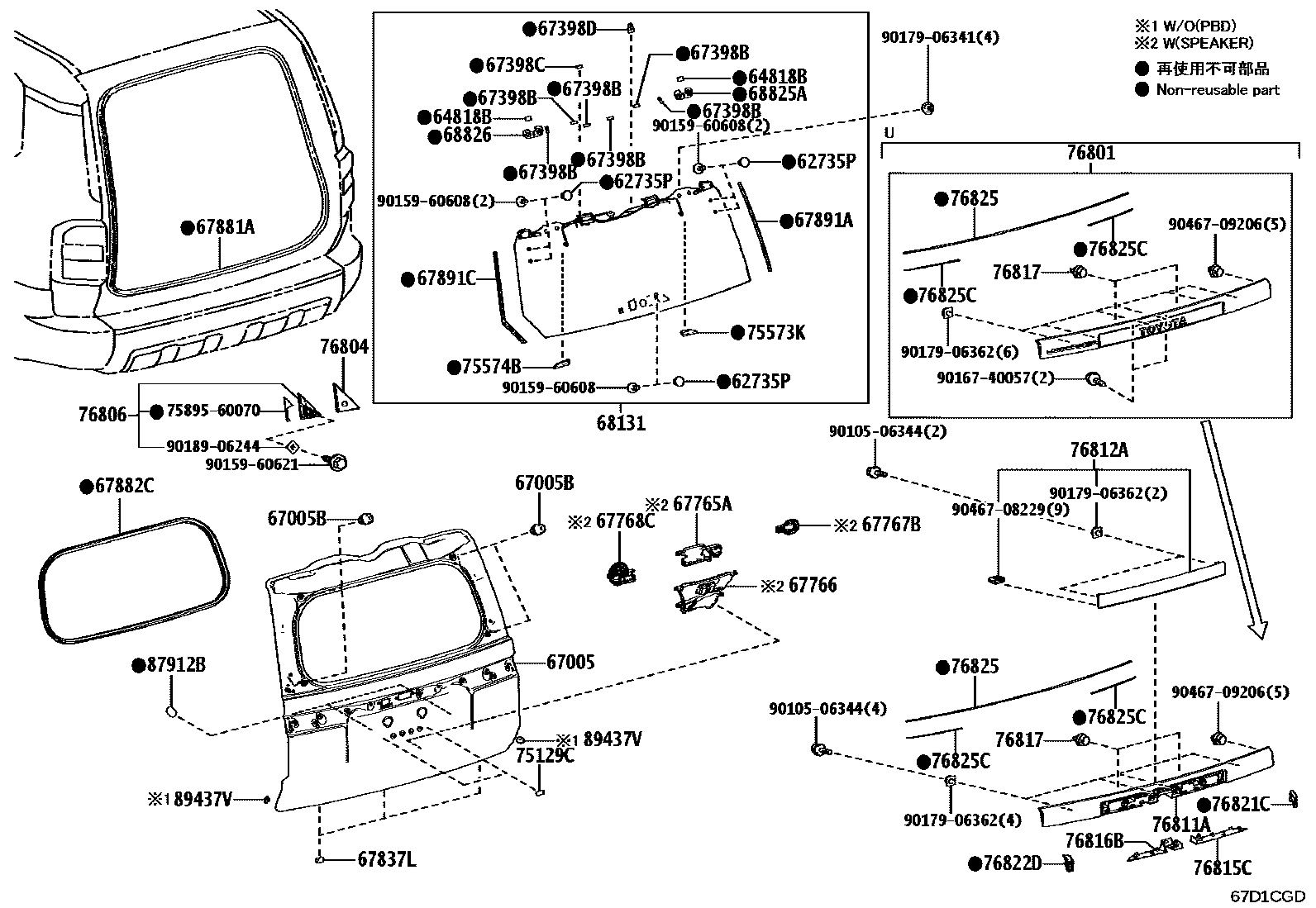

BACK DOOR PANEL & GLASS
62735PRETAINER, BACK DOOR WINDOW HINGE
64818BSPACER, BACK DOOR GLASS, NO.1
67005BCUSHION(FOR BACK DOOR PANEL)
67398BGUIDE, BACK DOOR WIRE HARNESS, NO.1
67398CGUIDE, BACK DOOR WIRE HARNESS, NO.2
67398DGUIDE, BACK DOOR WIRE HARNESS, NO.3
67765ACOVER, BACK DOOR SERVICE HOLE, NO.1
67766COVER, BACK DOOR SERVICE HOLE, NO.2
67767BCOVER, BACK DOOR SERVICE HOLE, NO.3
67768CCOVER, BACK DOOR SERVICE HOLE, NO.4
67837LSEAL, DOOR DUST PROOF
67881AWEATHERSTRIP, BACK DOOR
67882CWEATHERSTRIP, BACK DOOR, NO.2
67891ASEAL, BACK DOOR
67891CSEAL, BACK DOOR
68131GLASS, BACK DOOR
68825APLATE, BACK DOOR HINGE, RH
68826PLATE, BACK DOOR HINGE, LH
75129CCUSHION, REAR LICENCE PLATE
75573KMOULDING, BACK WINDOW, OUTSIDE RH
75574BMOULDING, BACK WINDOW, OUTSIDE LH
76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE
NO PAINT REQ.
76804GARNISH SUB-ASSY, BACK DOOR, OUTSIDE UPPER LH
76806GARNISH SUB-ASSY, BACK DOOR, OUTSIDE LOWER LH
76811AGARNISH, BACK DOOR, OUTSIDE
PAINT REQ.
76812AGARNISH, BACK DOOR, OUTSIDE NO.2
76815CMOULDING, BACK DOOR OUTSIDE GARNISH, LWR RH
76816BMOULDING, BACK DOOR OUTSIDE GARNISH, LWR LH
76817CLIP, BACK DOOR OUTSIDE GARNISH
76821CPROTECTOR, BACK DOOR GARNISH SIDE, RH
76822DPROTECTOR, BACK DOOR GARNISH SIDE, LH
76825PROTECTOR, BACK DOOR OUTSIDE GARNISH
76825CPROTECTOR, BACK DOOR OUTSIDE GARNISH
87912BPROTECTOR, OUTER MIRROR
89437VCOVER, SENSOR
7589560070RETAINER, LUGGAGE DOOR MOULDING, NO.3
main75895-60070
9010506344
main90105-06344
9015960608
main90159-60608
9015960621
main90159-60621
9016740057
main90167-40057
9017906341
main90179-06341
9017906362
main90179-06362
9018906244
main90189-06244
9046708229
main90467-08229
9046709206
main90467-09206
46 parts on this diagram · 2 diagrams in section
