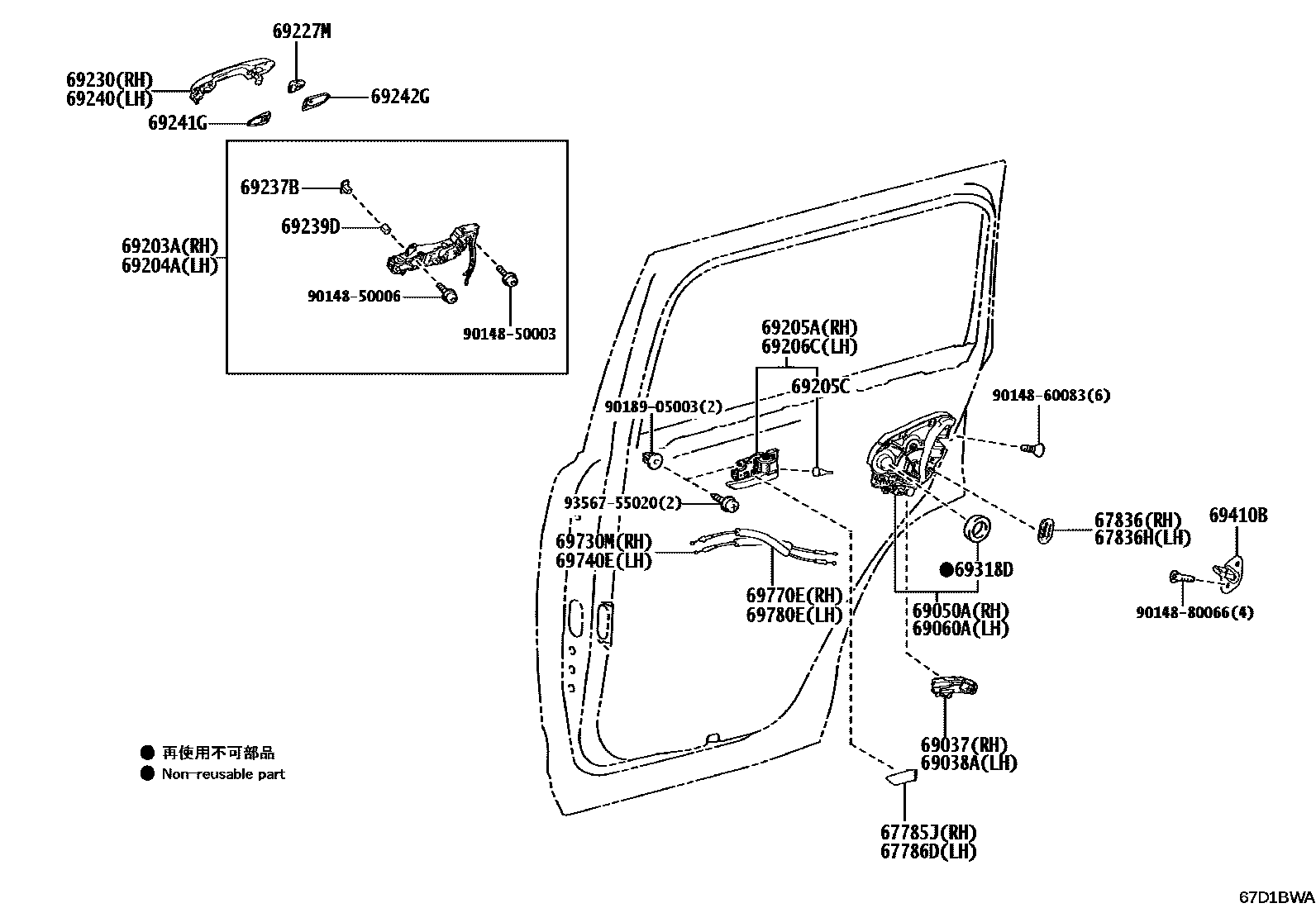

REAR DOOR LOCK & HANDLE
67785JCOVER, REAR DOOR TRIM, UPPER RH
BLACK,TRIM2#
BLACK,TRIM2#,4#
67786DCOVER, REAR DOOR TRIM, UPPER LH
BLACK,TRIM2#
BLACK,TRIM2#,4#
67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH
67836HCOVER, REAR DOOR LOCK CHILD PROTECTION, LH
69037COVER SUB-ASSY, REAR DOOR LOCK, RH
69038ACOVER SUB-ASSY, REAR DOOR LOCK, LH
69050ALOCK ASSY, REAR DOOR W/MOTOR, RH
69060ALOCK ASSY, REAR DOOR W/MOTOR, LH
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
BLACK,TRIM2#
BLACK,TRIM2#,4#
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
BLACK,TRIM2#
BLACK,TRIM2#,4#
69227MCOVER, REAR DOOR OUTSIDE HANDLE
BLACK
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
BLACK,040 ,202 ,4V8
BLACK,040 ,089 ,1L7 ,202 ,218 ,2ZC ,2ZD ,4V8 ,5C8 ,8X0
ATTITUDE BLACK MC.,218
69237BNUT, REAR DOOR HANDLE
69239DBUSH, REAR DOOR HANDLE
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
BLACK,040 ,202 ,4V8
BLACK,040 ,089 ,1L7 ,202 ,218 ,2ZC ,2ZD ,4V8 ,5C8 ,8X0
ATTITUDE BLACK MC.,218
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
69318DSEAL, DOOR LOCK WIRING HARNESS
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69730MCABLE, REAR DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)
69740ECABLE, REAR DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)
69770ECABLE, REAR DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)
69780ECABLE, REAR DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)
9014850003
main90148-50003
9014850006
main90148-50006
9014860083
main90148-60083
9014880066
main90148-80066
9018905003
main90189-05003
9356755020
main93567-55020
32 parts on this diagram · 1 diagram in section
