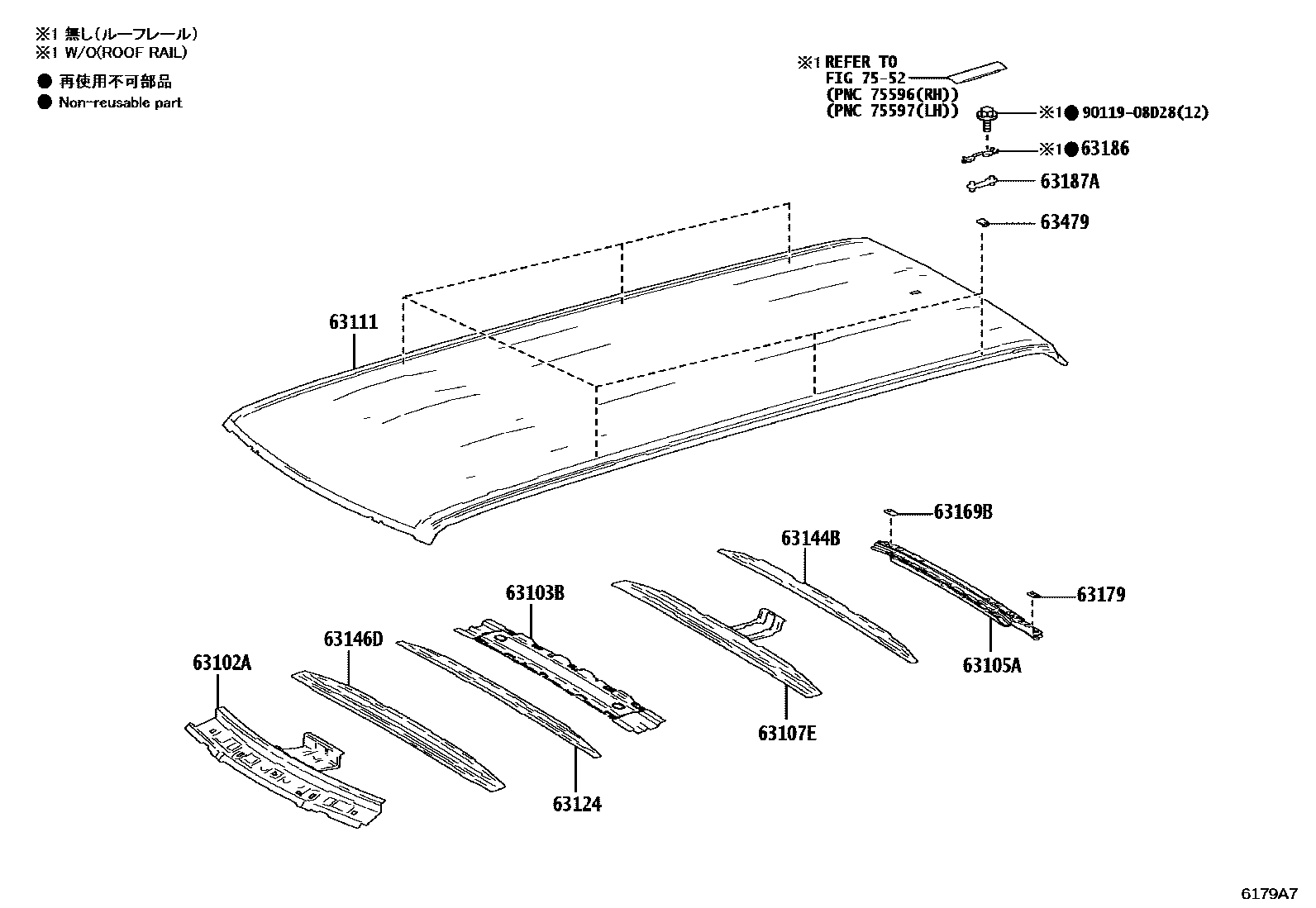

ROOF PANEL & BACK PANEL

0001 1ROOF PANEL(NORMAL ROOF) 0002 1ROOF PANEL(MOON ROOF) 0003 1MOON ROOF 0004 1ROOF RAIL

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-60902iTJH250202402

63103BREINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER

main63103-60090iTJH250202402

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-60320iTJH250202402

63107EREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.5

main63107-60060iTJH250202402

63111PANEL, ROOF

main63111-60A60iTJH250202402

63124REINFORCEMENT, ROOF PANEL, NO.1

main63123-60100iTJH250202402

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63144-60090iTJH250202402

63146DREINFORCEMENT, ROOF PANEL, NO.6

main63128-60040iTJH250202402

63169BPLATE, ROOF PANEL REINFORCEMENT, RH

main63169-47010iTJH250202402

63179PLATE, ROOF PANEL REINFORCEMENT, LH

main63179-47010iTJH250202402

63186BRACKET, ROOF RACK, FRONT

main63185-42020iTJH250..U202402

ROOF RAIL-WITHOUT

63187ABRACKET, ROOF RACK, REAR

main63187-35020iTJH250202402

63479RETAINER, ROOF INNER RACK

main63479-48010iTJH250202402

7552

9011908D28

main90119-08D28

15 parts on this diagram · 4 diagrams in section
