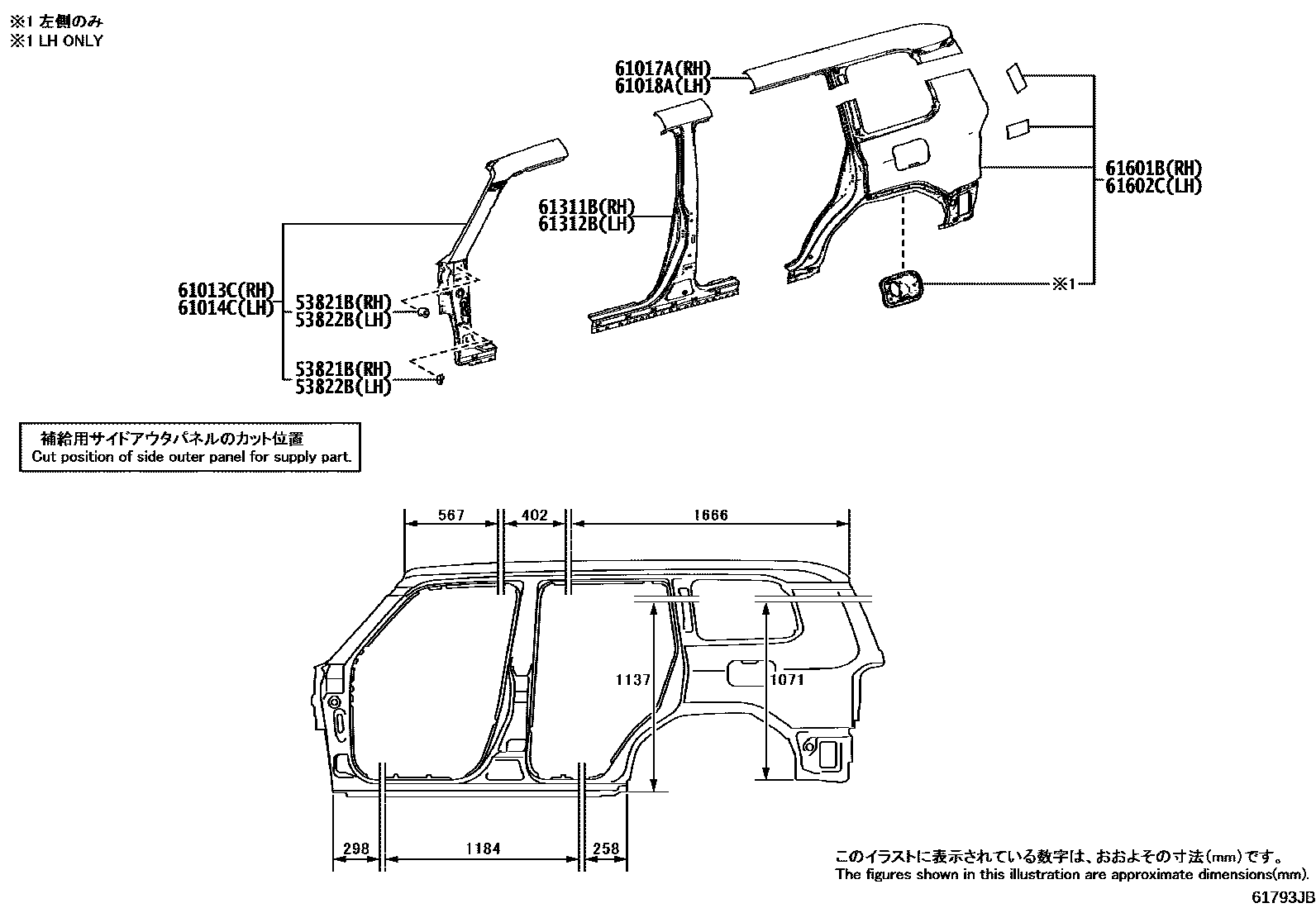

SIDE MEMBER

0001 1OUTER PANEL 0002 1INNER PANEL,RH 0003 1INNER PANEL,LH

53821BBRACKET, FRONT FENDER, REAR RH

main53821-16010iTJH250202402

53822BBRACKET, FRONT FENDER, REAR LH

main53821-16010iTJH250202402

61013CPANEL SUB-ASSY, SIDE, INNER RH

main61013-60070iTJH250202402

61014CPANEL SUB-ASSY, SIDE, INNER LH

main61014-60060iTJH250202402

61017AMEMBER SUB-ASSY, SIDE, REAR RH

main61017-60020iTJH250202402

61018AMEMBER SUB-ASSY, SIDE, REAR LH

main61018-60030iTJH250202402

61311BPILLAR, CENTER BODY, OUTER RH

main61311-60210iTJH250202402

61312BPILLAR, CENTER BODY, OUTER LH

main61312-60270iTJH250202402

61601BPANEL SUB-ASSY, QUARTER, RH

main61601-60B00iTJH250202402

61602CPANEL SUB-ASSY, QUARTER, LH

main61602-60A90iTJH250202402

10 parts on this diagram · 3 diagrams in section
