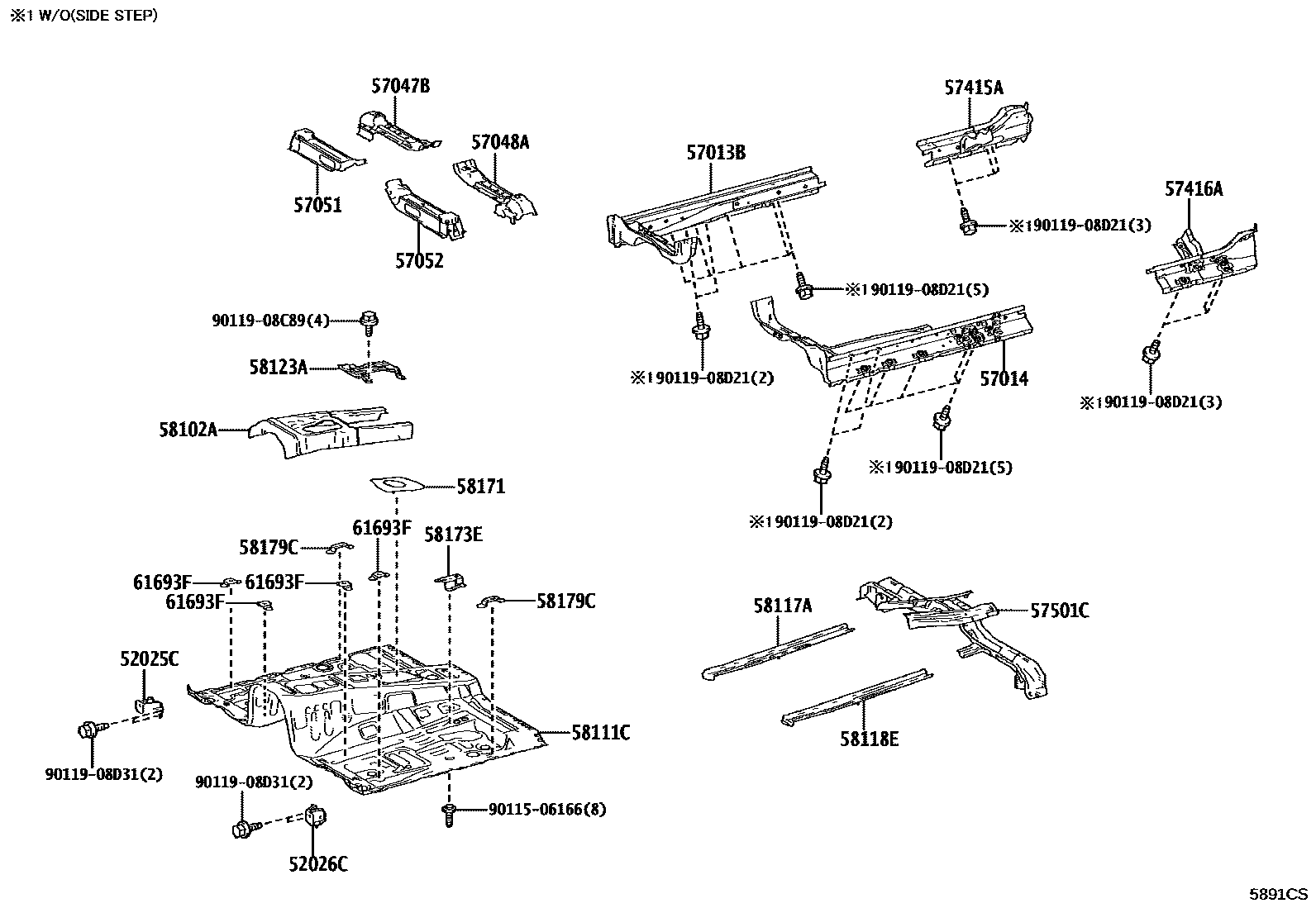

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1FLOOR PANEL 0002 1SIDE STEP

52025CEXTENSION SUB-ASSY, FRONT BUMPER, NO.2 RH

main52025-60070iTJH250202402

52026CEXTENSION SUB-ASSY, FRONT BUMPER, NO.2 LH

main52026-60070iTJH250202402

57013BMEMBER SUB-ASSY, FLOOR, FRONT RH

main57013-60060iTJH250202402

57014MEMBER SUB-ASSY, FLOOR, FRONT LH

main57014-60060iTJH250202402

57047BBRACKET SUB-ASSY, FLOOR HOUSING SEAT ANCHOR, RH

main57047-60030iTJH250202402

57048ABRACKET SUB-ASSY, FLOOR HOUSING SEAT ANCHOR, LH

main57048-60030iTJH250202402

57051MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-60100iTJH250202402

57052MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-60100iTJH250202402

57415ARAIL SUB-ASSY, FLOOR SIDE, REAR RH

main57403-60080iTJH250202402

57416ARAIL SUB-ASSY, FLOOR SIDE, REAR LH

main57404-60070iTJH250202402

57501CBRACE SUB-ASSY, FRONT FLOOR, CENTER

main57501-60040iTJH250202402

58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR

main58102-60130iTJH250202402

58111CPAN, FRONT FLOOR

main58111-60G50iTJH250202402

58117AREINFORCEMENT, FRONT FLOOR SIDE, RH

main58117-60050iTJH250202402

58118EBRACKET, JACK SET

main58118-60040iTJH250202402

58123ASUPPORT, SHIFT & SELECT LEVER

main58123-60120iTJH250202402

58171REINFORCEMENT, PARKING BRAKE BASE

main58171-60060iTJH250202402

58173EBRACKET, WIRING HARNESS, NO.3

main58173-60010iTJH250202402

58179CBRACKET, CLAMP FLOOR

main58179-60040iTJH250202402

61693FBRACKET, FRONT FLOOR

main58523-60020iTJH250202402

9011506166

main90115-06166

9011908C89

main90119-08C89

9011908D21

main90119-08D21

9011908D31

main90119-08D31

24 parts on this diagram · 2 diagrams in section
