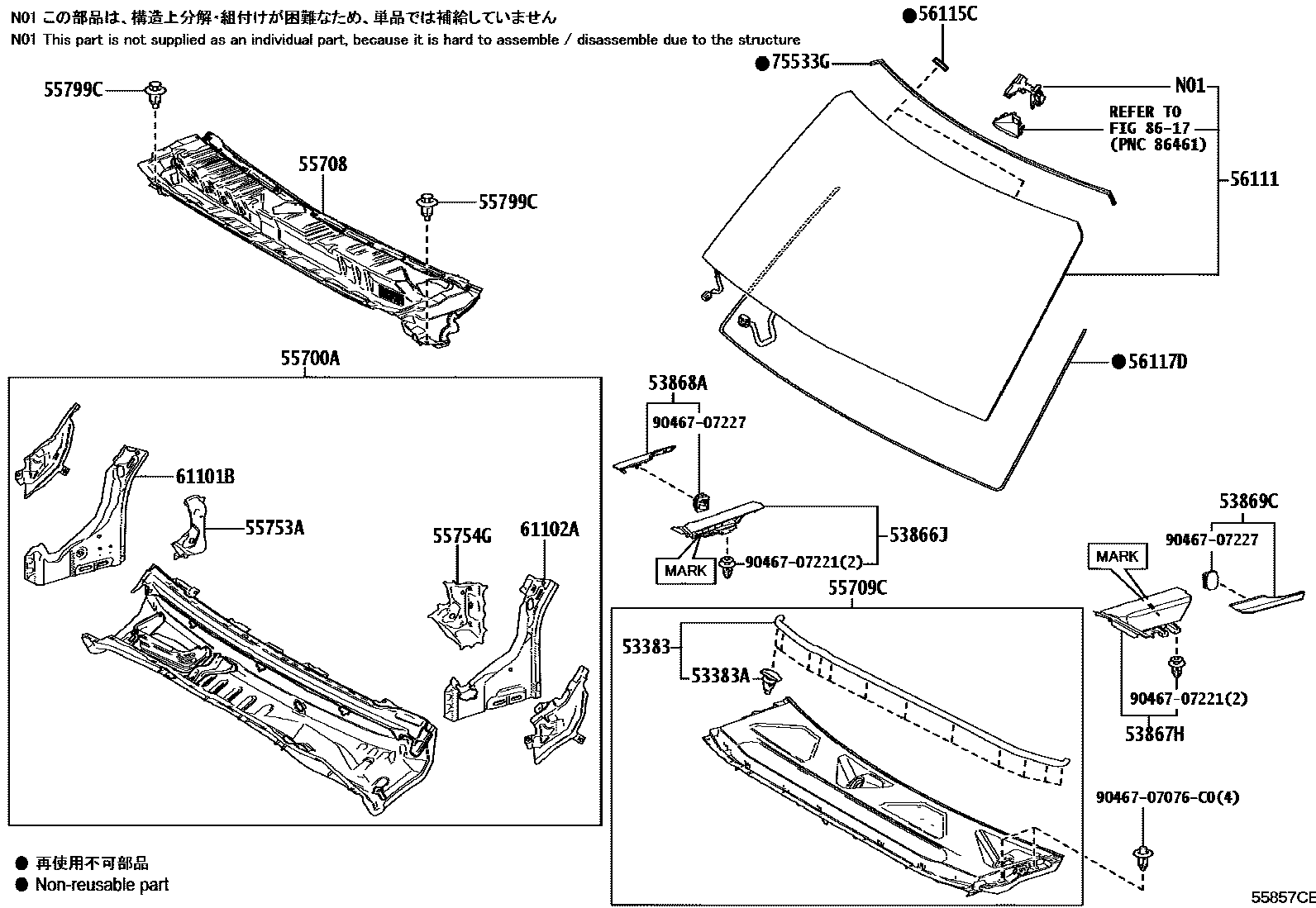

COWL PANEL & WINDSHIELD GLASS

53383SEAL, HOOD TO COWL TOP

main53383-60140i202402

53383ACLIP(FOR HOOD TO COWL TOP SEAL)

main67867-48030i202402

53866JSEAL, FRONT FENDER TO COWL SIDE, RH

main53866-60110i202402-202412

MARK=53866-60110

main53866-60111i202412

MARK=53866-60111

53867HSEAL, FRONT FENDER TO COWL SIDE, LH

main53867-60080i202402-202412

MARK=53867-60080

main53867-60081i202412

MARK=53867-60081

53868ASEAL, FRONT FENDER TO COWL SIDE, NO.2 RH

main53868-60060i202402

53869CSEAL, FRONT FENDER TO COWL SIDE, NO.2 LH

main53869-60040i202402

55700APANEL ASSY, COWL TOP

main55700-60E80i202402-202405

sub55700-60E81

main55700-60E81i202405

55708LOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-60420i202402

55709CCOVER SUB-ASSY, COWL SIDE VENTILATOR, LH

main55709-60040i202402

55753ABRACKET, INSTRUMENT PANEL TO COWL

main55753-60050i202402

55754GBRACKET, INSTRUMENT PANEL TO COWL, NO.2

main55754-60030i202402

55799CCLIP, COWL TOP VENTILATOR LOUVER

main90467-07217i202402

56111GLASS, WINDSHIELD

main56101-6B926i202402

56115CSTOPPER, WINDSHIELD GLASS

main56115-60050i202402

56117DDAM, WINDSHIELD GLASS ADHESIVE

main56117-64010i202402

L=3500(*D,L=2581)

main56117-64010i202402

L=3500(*D,L=2581), HIGH GRADE PACKAGE FOR ADV&WINDSHIELD GLASS-ACOUSTIC TYPE & WITH(TOP SHADE & DEICER)&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR

main56117-64010i202402

L=3500(*D,L=2581), HIGH GRADE PACKAGE FOR ADV&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR

main56117-64010i202402

L=3500(*D,L=2581),WINDSHIELD GLASS-ACOUSTIC TYPE & WITH(TOP SHADE & DEICER)

61101BPANEL SUB-ASSY, COWL SIDE, RH

main61101-60340i202402

61102APANEL SUB-ASSY, COWL SIDE, LH

main61102-60370i202402

75533GMOULDING, WINDSHIELD, OUTSIDE

main75531-60100i202402

8617

9046707076C0

main90467-07076C0

9046707221

main90467-07221

9046707227

main90467-07227

22 parts on this diagram · 1 diagram in section
