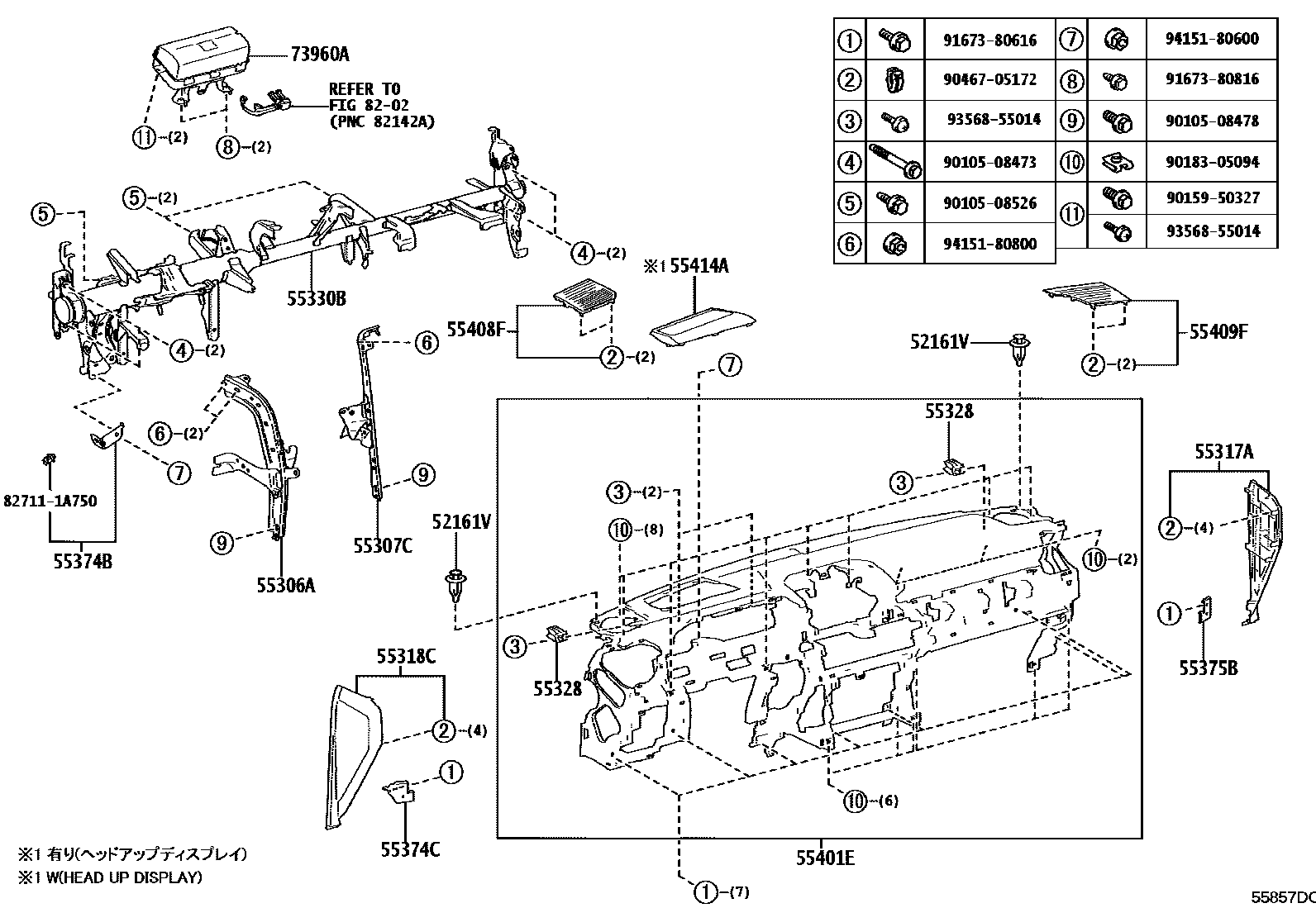

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE

52161VPIECE, INSTRUMENT PANEL

main52161-16010iTJH250202402

sub52161-0K040

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-60250iTJH250202402

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-60190iTJH250202402

55317APANEL, INSTRUMENT SIDE, RH

main55317-60170-C0iTJH250..U202402

BLACK,TRIM2#

main55317-60170-C0iTJH250..U202402

BLACK,TRIM2#,4#

55318CPANEL, INSTRUMENT SIDE, LH

main55318-60260-C0iTJH250..U202402

BLACK,TRIM2#

main55318-60260-C0iTJH250..U202402

BLACK,TRIM2#,4#

55328PIN, INSTRUMENT PANEL, NO.1

main55328-60090iTJH250202402

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-60480iTJH250202402

55374BBRACKET, INSTRUMENT PANEL

main58239-60030iTJH250202402

55374CBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1

main55374-60180iTJH250202402

55375BBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2

main55375-60180iTJH250202402

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-60640-C1iTJH250..U202402

SOFT BLACK,TRIM2#

main55401-60640-C1iTJH250..U202402

SOFT BLACK,TRIM2#,4#

55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1

main55408-60350-C0iTJH250..U202402

BLACK,TRIM2#

main55408-60350-C0iTJH250..U202402

BLACK,TRIM2#,4#

55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2

main55409-60220-C0iTJH250..U202402

BLACK,TRIM2#

main55409-60220-C0iTJH250..U202402

BLACK,TRIM2#,4#

55414APANEL, INSTRUMENT CLUSTER FINISH, END

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-60330iTJH250202402

8202

827111A750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A750

9010508473

main90105-08473

9010508478

main90105-08478

9010508526

main90105-08526

9015950327

main90159-50327

9018305094

main90183-05094

9046705172

main90467-05172

9167380616

main91673-80616

9167380816

main91673-80816

9356855014

main93568-55014

9415180600

main94151-80600

9415180800

main94151-80800

28 parts on this diagram · 4 diagrams in section
