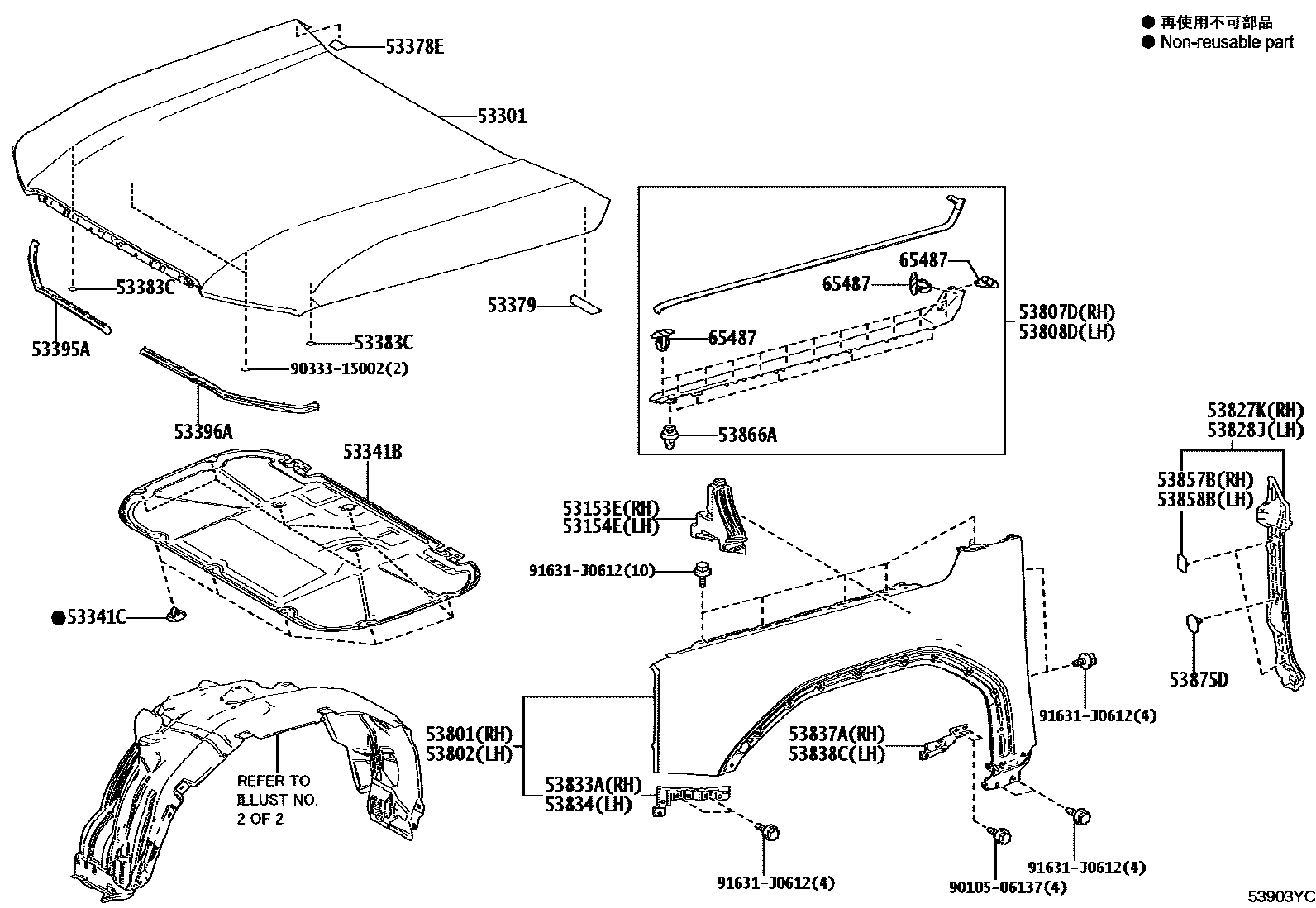

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53153EGUIDE, FRONT SIDE AIR

main53153-60040iTJH250202402

53154EGUIDE, FRONT SIDE AIR, NO.2

main53154-60050iTJH250202402

53301HOOD SUB-ASSY

main53301-60810iTJH250202402

53341BINSULATOR, HOOD

main53341-60530iTJH250202402

53341CCLIP(FOR HOOD INSULATOR)

main90467-07229iTJH250202402

53378ESEAL, HOOD AIR INTAKE DUCT, RH

main53378-60010iTJH250202402-202409

53379SEAL, HOOD AIR INTAKE DUCT, LH

main53379-60020iTJH250202402-202409

53383CSEAL, HOOD TO COWL TOP

main90950-06124iTJH250202402

53395ASEAL, HOOD TO FRONT END PANEL, NO.1

main53395-60120iTJH250202402

53396ASEAL, HOOD TO FRONT END PANEL, NO.2

main53396-60100iTJH250202402

53801FENDER SUB-ASSY, FRONT RH

main53801-60F20iTJH250202402

53802FENDER SUB-ASSY, FRONT LH

main53802-60F30iTJH250202402

53807DREINFORCEMENT SUB-ASSY, FRONT FENDER, TOP RH

main53807-60220iTJH250202402

53808DREINFORCEMENT SUB-ASSY, FRONT FENDER, TOP LH

main53808-60170iTJH250202402

53827KPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-60070iTJH250202402

53828JPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-60100iTJH250202402

53833APANEL, FRONT FENDER SIDE, LOWER RH

main53833-60090iTJH250202402

53834PANEL, FRONT FENDER SIDE, LOWER LH

main53834-60090iTJH250202402

53837ABRACKET, FRONT SIDE PANEL, NO.2

main53837-60070iTJH250202402

53838CBRACKET, FRONT SIDE PANEL, NO.2 LH

main53838-60100iTJH250202402

53857BRETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-12010iTJH250202402

53858BRETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-12010iTJH250202402

53866ACLIP(FOR FRONT FENDER TO COWL SIDE SEAL)

main90467-10161iTJH250202402

53875DCLIP, FRONT FENDER LINER, NO.2

main53857-47011iTJH250202402

65487CLIP, CORNER PROTECTOR

main65487-60010iTJH250202402

9010506137

main90105-06137

9033315002

main90333-15002

91631J0612

main91631-J0612

28 parts on this diagram · 2 diagrams in section
