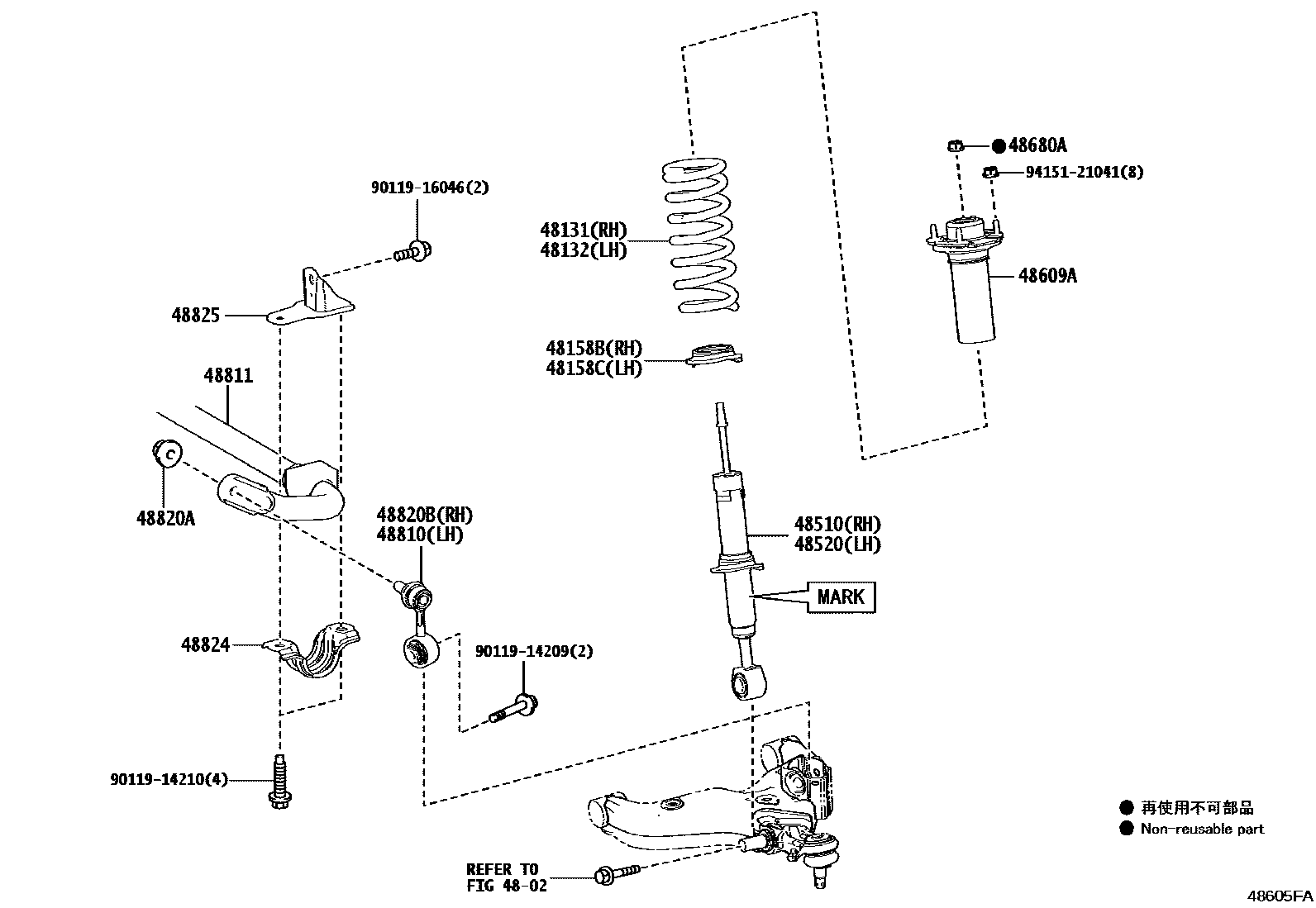

FRONT SPRING & SHOCK ABSORBER

0001 1W/O(ON-OFF STABILIZER) 0002 1W(ON-OFF STABILIZER)

4802

48131SPRING, FRONT COIL, RH

main48131-60S71iTJH250..U202402

STABILIZER-WITH

main48131-60S81iTJH250..A202402

STABILIZER-WITH&MOON ROOF-WITH

48132SPRING, FRONT COIL, LH

main48131-60S71iTJH250..U202402

STABILIZER-WITH

main48131-60S81iTJH250..A202402

STABILIZER-WITH&MOON ROOF-WITH

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-60020iTJH250202402

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-60020iTJH250202402

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-69815iTJH250..A202402

MARK 48510-60590

main48510-80C54iTJH250..U202402

MARK 48510-60560

48520ABSORBER ASSY, SHOCK, FRONT LH

main48510-69815iTJH250..A202402

MARK 48510-60590

main48510-80C54iTJH250..U202402

MARK 48510-60560

48609ASUPPORT SUB-ASSY, FRONT SUSPENSION

main48609-60120iTJH250202402

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main94188-01401iTJH250202402

48810LINK ASSY, FRONT STABILIZER, LH

main48810-60100iTJH250202402

48811BAR, STABILIZER, FRONT

main48804-60240iTJH250..U202402

STABILIZER-WITH

48820ANUT(FOR FRONT STABILIZER LINK)

main90178-16007iTJH250202402

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-60150iTJH250202402

48824BRACKET, STABILIZER, FRONT

main48824-60260iTJH250202402

48825BRACKET, STABILIZER, NO.2

main48827-60130iTJH250..U202402

STABILIZER-WITH

9415121041

main94151-21041

16 parts on this diagram · 2 diagrams in section
