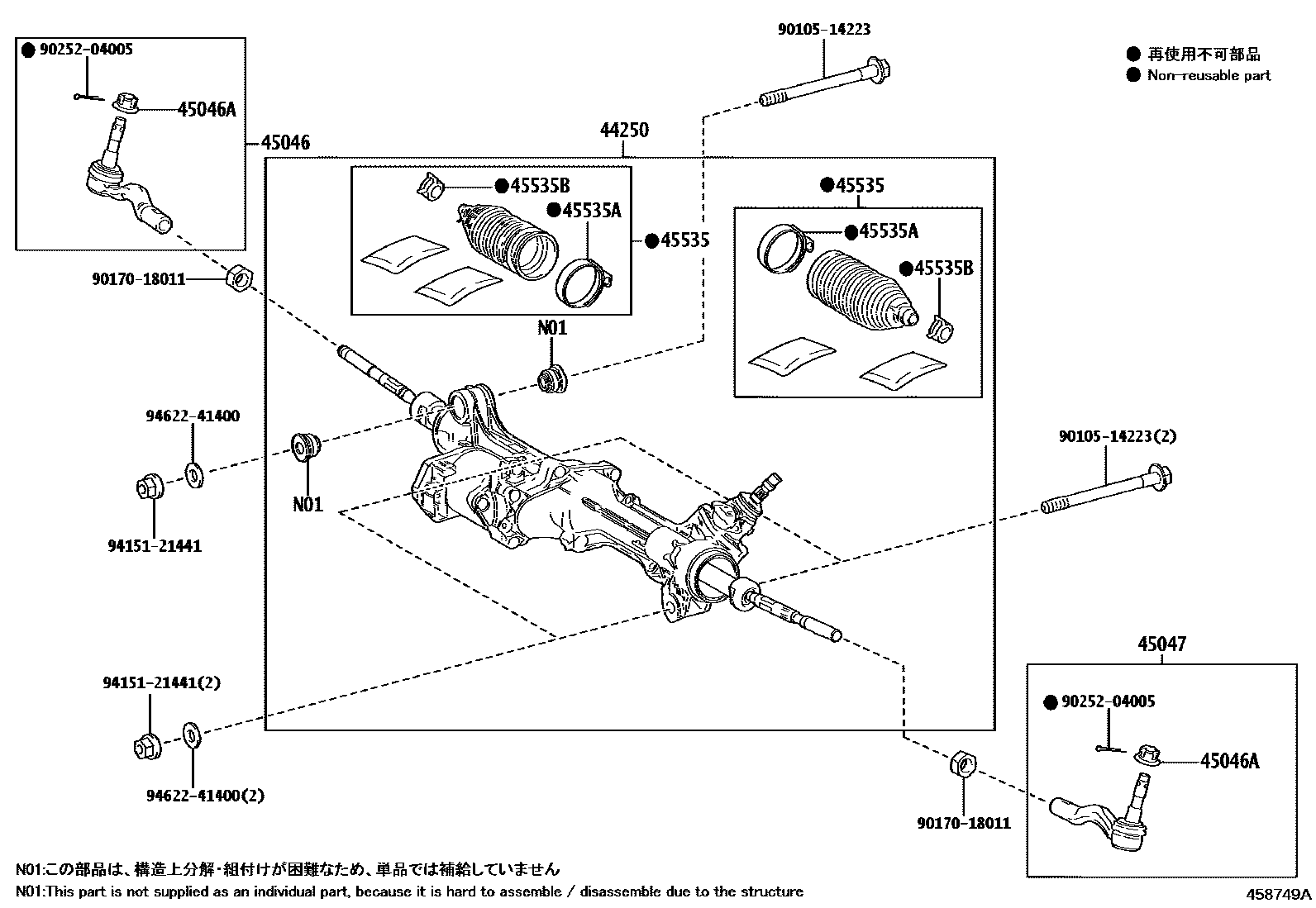

FRONT STEERING GEAR & LINK

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-60370iTJH250202402

45046END SUB-ASSY, TIE ROD, RH

main45046-69295iTJH250202402

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-16011iTJH250202402

45047END SUB-ASSY, TIE ROD, LH

main45047-69175iTJH250202402

45535BOOT, STEERING RACK, NO.1

main45535-69055iTJH250202402

45535ACLAMP(FOR STEERING RACK BOOT)

main90460-81008iTJH250202402

45535BCLIP(FOR STEERING RACK BOOT)

main96134-42300iTJH250202402

9010514223

main90105-14223

9017018011

main90170-18011

9025204005

main90252-04005

9415121441

main94151-21441

9462241400

main94622-41400

12 parts on this diagram · 1 diagram in section
