WATER PUMP

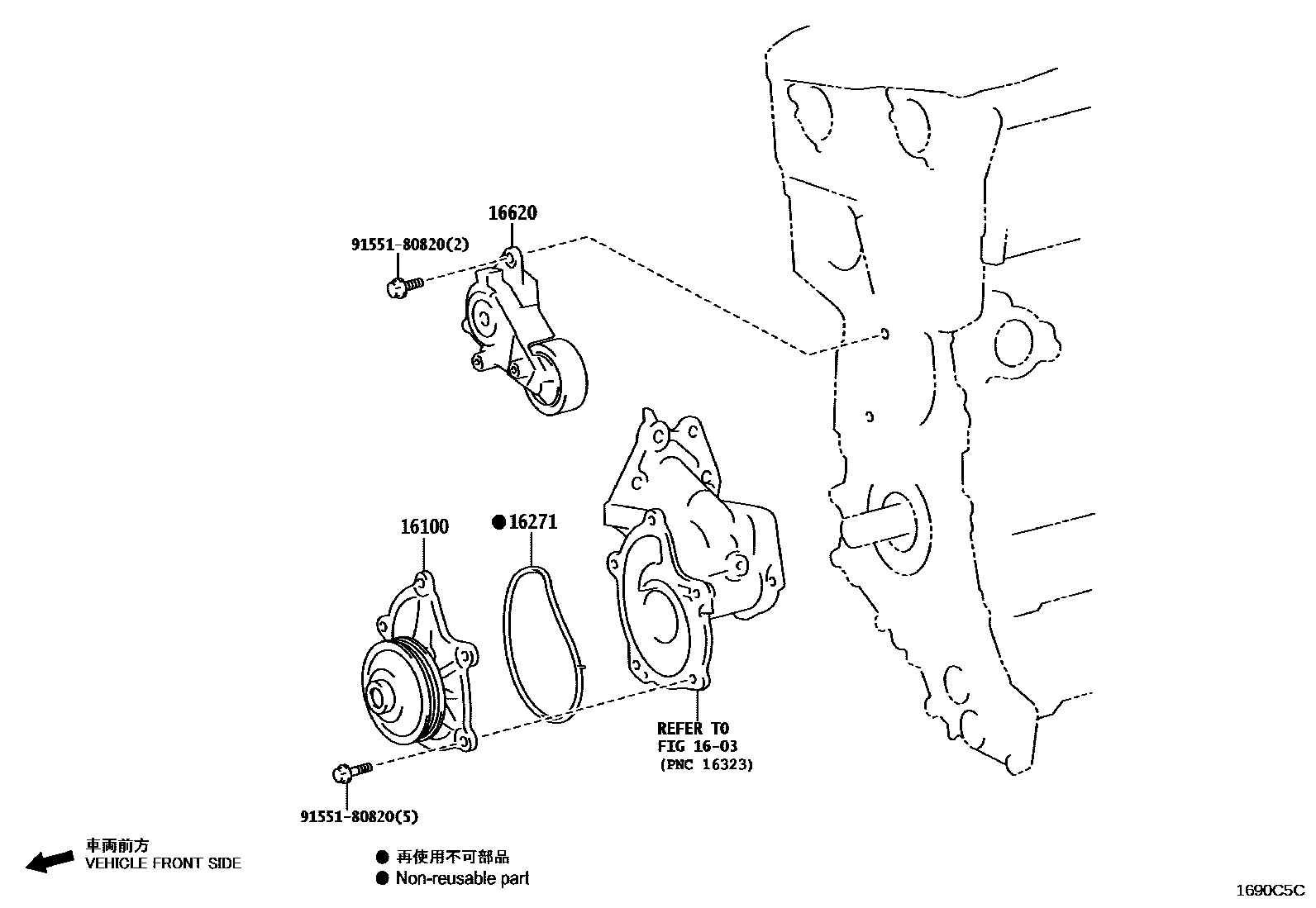

Parts diagram

1603

16100PUMP ASSY, ENGINE WATER

main16100-25040i202402

16271GASKET, WATER PUMP

main16271-25030i202402

16620TENSIONER ASSY, V-RIBBED BELT

main16620-25030i202402

9155180820

main91551-80820

5 parts on this diagram · 1 diagram in section
